Abrasion Resistant Compact Piston Seal

Compact Piston Seal KL44

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL44

Send Inquiry

Product Description

Product Specifications
⚙
Material: NBR / FABRIC NBR / POM
⚓
Pressure (max): 400 Bar
🌡
Temperature: -30 / +100 °C
⚡
Sliding Speed: 0.5 M/s
◈
Style: Hydraulic Piston Seals
🏗
Application: Mining / Marine Hydraulics
Payment & Shipping Terms
📦
Packaging: Opp bags
📅
Delivery Time: 7-15 work days
💳
Payment Terms: L/C, T/T, Paypal
🏭
Supply Ability: 100,000 pcs / month

KL44 is a three-piece compact set consisting of one fabric impregnated sealing ring and two thermoplastic guide rings. The face seal has superior abrasion resistance and performs well at rough surfaces.

Key Advantages
  • High performance at water-based fluids
  • High Abrasion Resistance
  • Advanced dynamic and static sealing
  • Long service life
Area of Application
  • Mining industry
  • Iron and steel industry
  • Marine hydraulics
Abrasion Resistant Compact Piston Seal KL44

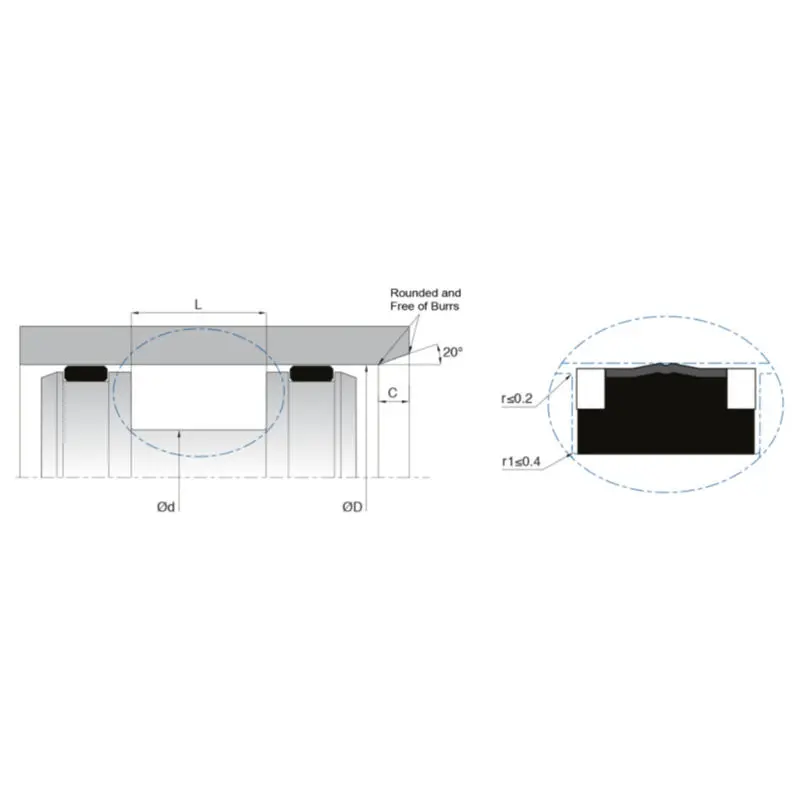

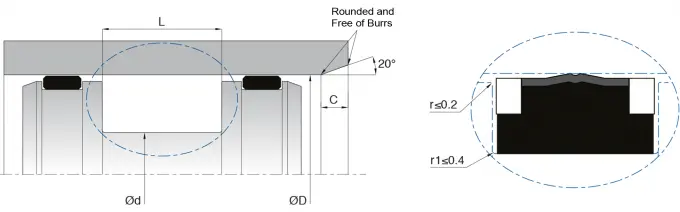

Technical Dimensions
Model D (H8) d (h9) L (+0.2/-0) C Material
KL44 080-066806616.55FABRIC NBR
KL44 100-0861008616.55FABRIC NBR
KL44 110-0951109515.55FABRIC NBR
KL44 120-10512010515.55FABRIC NBR
KL44 125-11012511015.75FABRIC NBR
KL44 130-11313011320.56FABRIC NBR
KL44 140-12514012515.95FABRIC NBR
KL44 150-13515013515.55FABRIC NBR
KL44 160-143160143206FABRIC NBR
KL44 170-15017015015.56FABRIC NBR
KL44 180-163180163206FABRIC NBR
KL44 185-16518516515.56FABRIC NBR
KL44 200-18020018015.56FABRIC NBR
KL44 210-19021019015.56FABRIC NBR
KL44 225-20522520524.56FABRIC NBR
KL44 240-220240220256FABRIC NBR
KL44 250-23025023025.56FABRIC NBR
KL44 320-30032030025.56FABRIC NBR
Frequently Asked Questions
What are the components of the KL44 Piston Seal?
The KL44 is a three-piece compact set consisting of one central fabric-impregnated NBR sealing ring and two thermoplastic POM guide rings for enhanced stability.
What is the maximum operating pressure for this seal?
The KL44 series is designed to handle high-pressure environments, with a maximum pressure rating of 400 Bar.
Is the KL44 seal suitable for water-based hydraulic fluids?
Yes, one of the primary advantages of the KL44 is its high performance and reliability when used with water-based fluids.
What industries commonly use these hydraulic seals?
These seals are widely used in the mining industry, iron and steel industry, and marine hydraulics due to their high abrasion resistance.
What is the typical lead time for an order?
Our standard delivery time is between 7 to 15 working days, depending on order volume and specific requirements.
Can these seals handle rough cylinder surfaces?
Yes, the fabric-impregnated material is specifically designed to perform exceptionally well even on rough surfaces, providing superior abrasion resistance.
