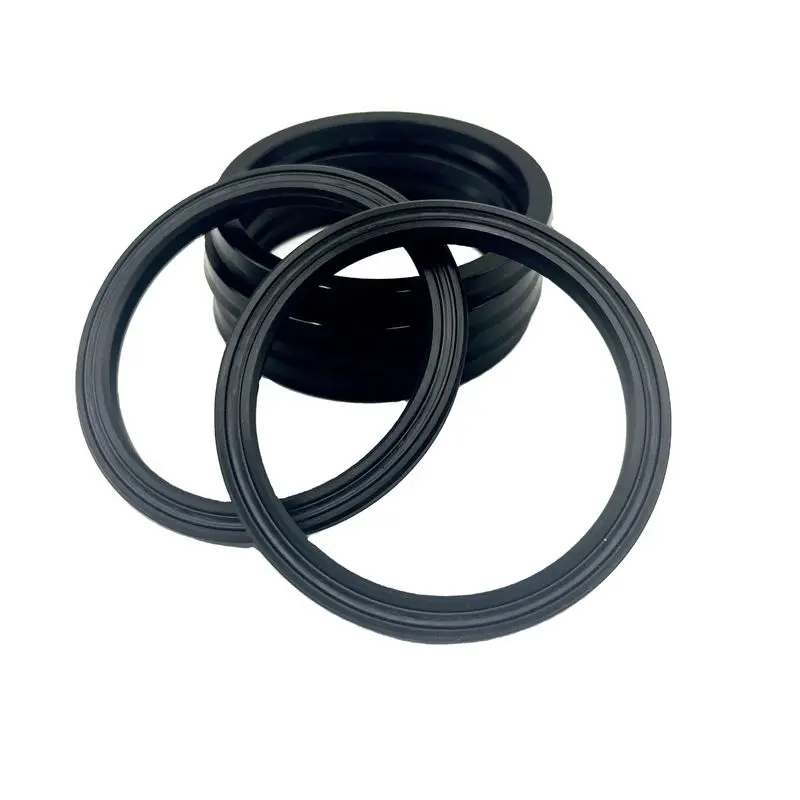

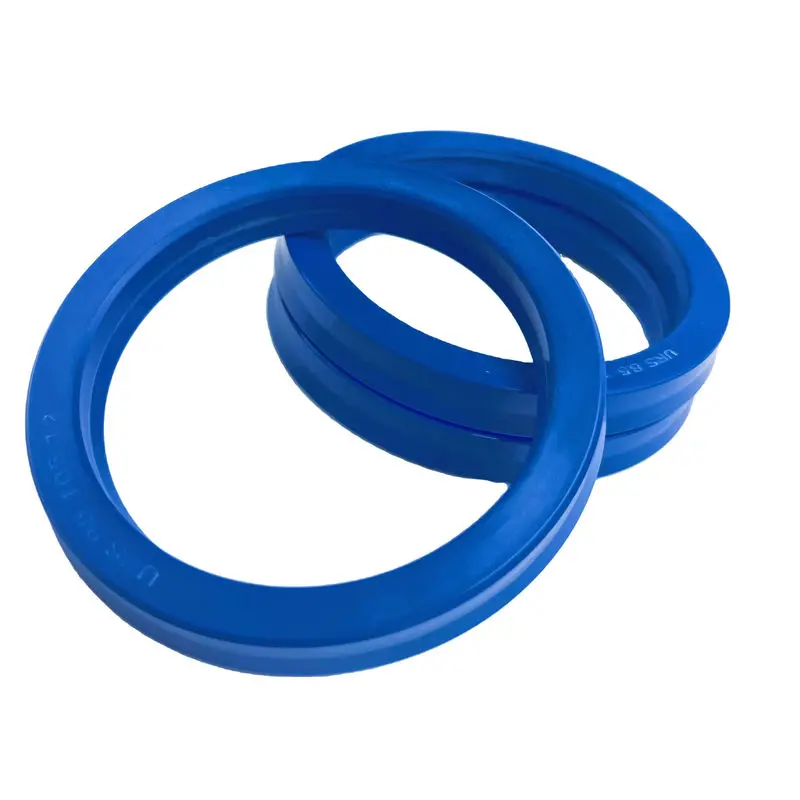

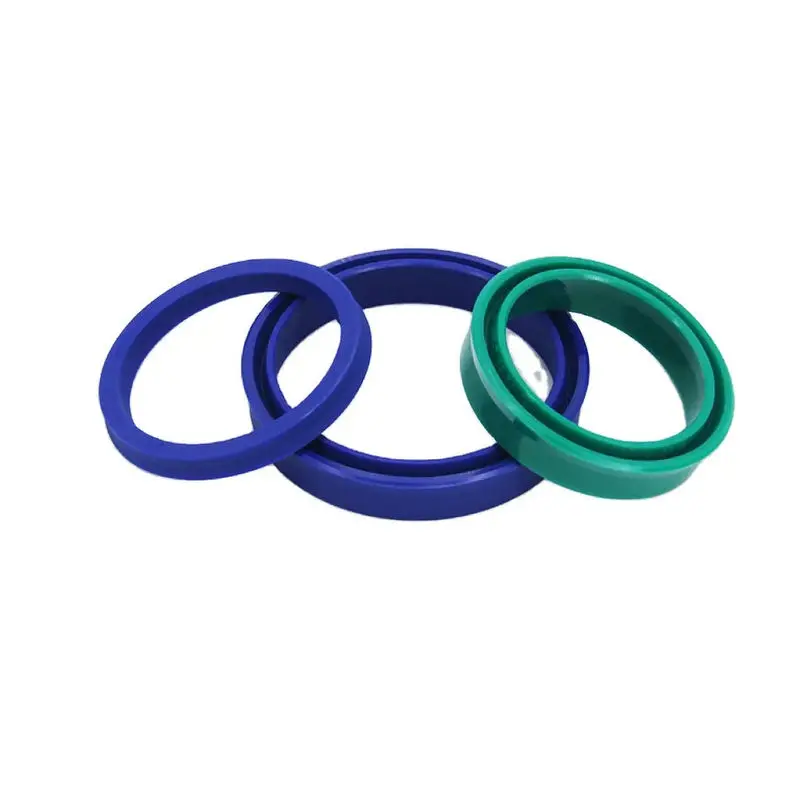

Manufacturer Customized U601 U603 Hydraulic Jack Oil Seal Polyurethane UN PU Piston Rod Seals for cylinders.
KLHPS-01 is a high-performance single-acting U-rod or piston all-purpose seal that provides the driest seal in light and medium-load applications. The seals are injection molded with high performance U5203 material, easy to install and excellent low temperature resistance. When used in conjunction with a full-coverage retainer, the seal may be considered for heavy-duty applications. Unique design seal lip angle provides optimal sealing performance.
Temp: -30°C to 125°C | Hardness: 40-90A
Excellent oil resistance and stability, widely used and affordable.
Temp: 20°C to 250°C | Hardness: 50-90A
Wear resistance, acid and alkali resistance, high temperature resistance.
Temp: 60°C to 225°C | Hardness: 25-90A
Good heat resistance, cold resistance, and water resistance. Food grade.
Temp: 50°C to 150°C | Hardness: 40-90A
Excellent ozone, heat, steam, and cold resistance.
| Material Type | High Temp (°C) | Low Temp (°C) | General Properties |
|---|---|---|---|
| ACM | 150 | -10 | Used in diaphragm/hose for automotive. Good resistance to heat, ozone, and oil. |
| NR | 70 | -40 | Excellent compression set, high tensile strength, abrasion and tear resistance. |
| VMQ | 225 | 55 | Widest temperature range. Good weather and ozone resistance. |
| PTFE | 250 | -150 | Low friction coefficient, used in oil seal lip. Low elastic property. |
| TPU (PU) | 100 | -40 | High tensile strength, abrasive resistance, and tear strength. Extremely durable. |
| XNBR | 100 | -40 | Modified NBR with better tensile strength and abrasion resistance. |
