Double Acting Compact Piston Seal

Mobile machinery Compact Piston Seal

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL46X

Send Inquiry

Product Description

Product Specifications

◈Style:Compact Piston Seal

◈Material:NBR / TPE / PA

◈Max Pressure:400 Bar

◈Temperature:-30 / +100 °C

◈Max Sliding Speed:0.5 M/s

◈Application:Construction & Agricultural Machinery

Payment & Shipping Terms

✈Packaging:Opp bags

✈Delivery Time:7-15 work days

✈Payment Terms:L/C, T/T, Paypal

✈Supply Ability:100,000 pcs / month

Performance Overview

KL46X Is A High-Performance Double Acting Compact Piston Seal For Higher Load Bearing Performance At Higher Temperatures

KL46X is a high-performance double acting compact piston seal that consists of one NBR profile ring, thermoplastic elastomer support rings, and glass-reinforced PA guide rings. Among similar double-acting piston seals, KL46X comes forward with its TPE support rings with special geometry which enhances the extrusion resistance at variable pressures of mobile hydraulic applications and glass-reinforced PA guide rings that provides higher load bearing performance at higher temperatures.

★ Advantages

✔ Ultimate extrusion resistance due to special TPE back-up rings

✔ Better high temperature resistance due to PA guide rings

✔ Advanced performance at long stroke cylinders

★ Area of Application

● Agricultural machinery

● Construction machinery

● Mobile machinery

● Loading platforms & Forklifts

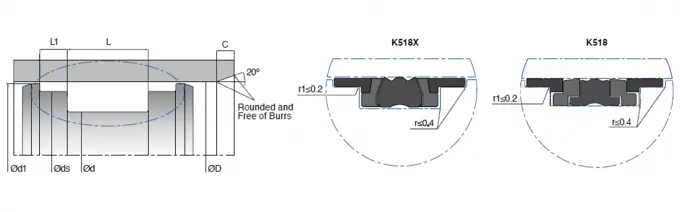

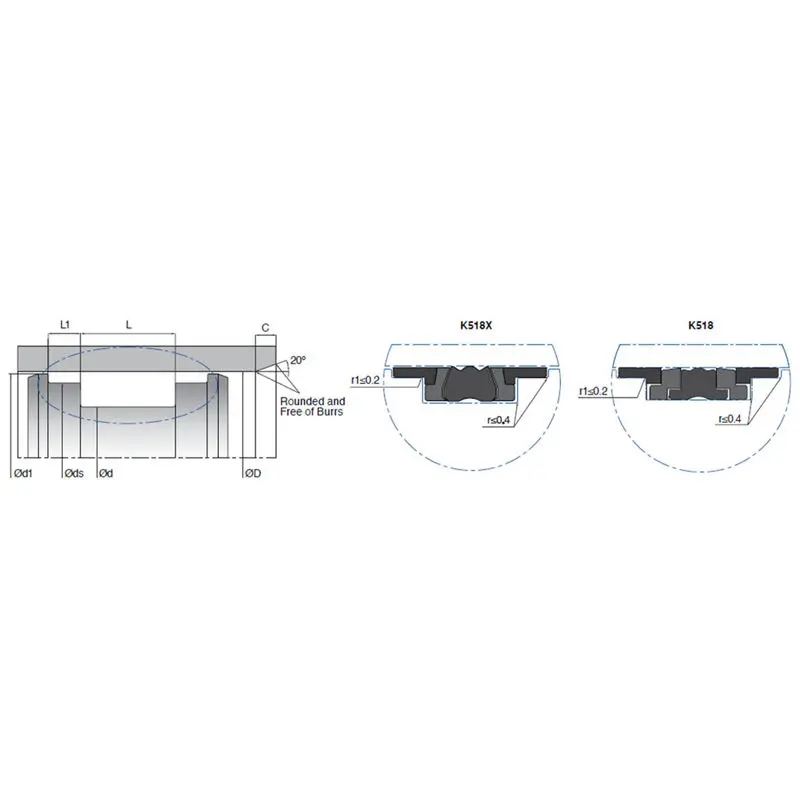

Double Acting Compact Piston Seal Technical Drawing

Dimension Table

Model	D (H8)	d (h9)	L (+0.2/-0)	ds (h8)	d1 (±0.1)	L1 (+0.2/-0)	C	Material
KL46 025-016	25	16	13.5	22	24	2.1	4	NBR
KL46 030-021	30	21	13.5	27	29	2.1	4	NBR
KL46 032-022	32	22	16.4	28.5	30.5	6.35	4	NBR
KL46 032-024	32	24	15.5	28	31	3.1	4	NBR
KL46 035-025	35	25	16.4	31.4	33.5	6.35	4	NBR
KL46 X 040-024	40	24	18.4	35.4	38.5	6.35	5	NBR
KL46 X 040-030	40	30	16.4	35.4	38.5	6.35	4	NBR
KL46 040-030/1	40	30	12.5	37	39	4	4	NBR
KL46 040-032	40	32	15.5	36	39.4	3.2	4	NBR
KL46 040-032/1	40	32	10	37	39	4	4	NBR
KL46 045-029	45	29	18.4	40.4	43.5	6.35	5	NBR
KL46 045-035	45	35	16.4	40.4	43.5	6.35	4	NBR
KL46 X 050-034	50	34	20.5	46	49	3.1	5	NBR
KL46 X 050-034/1	50	34	18.4	45.41	48.66	6.35	5	NBR
KL46 050-038	50	38	20.5	46	49.4	4.2	4	NBR
KL46 X 055-039	55	39	20.5	51	54	3.1	5	NBR
KL46 055-039/1	55	39	18.4	50.37	53.65	6.35	5	NBR
KL46 055-045	55	45	12.5	52	54	4	4	NBR
KL46 X 060-044	60	44	20.5	56	59	3.1	5	NBR
KL46 X 060-044/1	60	44	18.4	55.39	58.65	6.35	5	NBR
KL46 060-048	60	48	20.5	56	59.4	4.2	4	NBR
KL46 063-047	63	47	20.5	59	62	3.1	5	NBR
KL46 X 063-047/1	63	47	18.4	58.39	61.63	6.35	5	NBR
KL46 063-047/2	63	47	19.4	58.4	61.5	6.35	5	NBR
KL46 063-051	63	51	20.5	59	62.4	4.2	4	NBR
KL46 063-053	63	53	12.5	60	62	4	4	NBR
KL46 065-049	65	49	20.5	61	64	3.1	5	NBR
KL46 X 065-050	65	50	18.4	60.41	63.64	6.35	5	NBR
KL46 X 070-050	70	50	22.4	64.18	68.34	6.35	6	NBR
KL46 070-054	70	54	20.5	66	69	3.1	5	NBR
KL46 070-058	70	58	20.5	66	69.4	4.2	5	NBR
KL46 X 075-055	75	55	22.4	69.2	73.3	6.35	6	NBR
KL46 075-059	75	59	20.5	71	74	3.1	5	NBR
KL46 X 080-060	80	60	22.4	74.15	78.3	6.35	6	NBR
KL46 080-060/2	80	60	25	75	78	6.35	6	NBR
KL46 080-062	80	62	22.5	76	79	3.6	5	NBR
KL46 080-066	80	66	22.4	76	79.4	5.2	5	NBR
KL46 085-065	85	65	22.4	79.15	83.3	6.35	6	NBR
KL46 X 090-070	90	70	22.4	84.15	88.3	6.35	6	NBR
KL46 090-072/1	90	72	22.5	86	89	3.6	6	NBR
KL46 090-075	90	75	20	86	88.5	5	5	NBR
KL46 090-076	90	76	22.4	86	89.4	5.2	5	NBR
KL46 X 095-075	95	75	22.4	89.15	93.31	6.35	6	NBR
KL46 095-081	95	81	22.4	91	94.4	5.2	5	NBR
KL46 X 100-075	100	75	22.4	93.13	98	6.35	6	NBR
KL46 100-086	100	86	22.4	96	99.4	5.2	5	NBR
KL46 105-080	105	80	22.4	98.1	103	6.5	6	NBR
KL46 105-080/1	105	80	22.4	98.1	103	6.35	6	NBR
KL46 X 110-085	110	85	22.4	103.1	108	6.35	6	NBR
KL46 110-085/1	110	85	25.4	103.1	108	6.35	6	NBR
KL46 110-092	110	92	22.4	106	109	3.6	5	NBR
KL46 110-096	110	96	22.4	106	109.4	5.2	5	NBR
KL46 X 115-090	115	90	22.4	108.1	113.02	6.35	6	NBR
KL46 115-101	115	101	22.4	111	114.4	5.2	5	NBR
KL46 X 120-095	120	95	22.4	113.1	118	6.35	6	NBR
KL46 120-106	120	106	22.4	116	119.4	5.2	5	NBR
KL46 X 125-100	125	100	25.4	118.1	123	6.35	6	NBR
KL46 125-108	125	108	26.5	121	124.4	7.2	6	NBR
KL46 130-105	130	105	25.4	123.1	128	6.35	6	NBR
KL46 130-105/1	130	105	25.4	123.1	128	9.52	6	NBR
KL46 X 130-105/2	130	105	25.4	122.6	127.5	9.52	6	NBR
KL46 135-110	135	110	25.4	127.6	132.5	9.52	6	NBR
KL46 135-110/1	135	110	25.4	128.1	133	6.35	6	NBR
KL46 140-115	140	115	25.4	132.6	137.5	6.35	6	NBR
KL46 X 140-115/2	140	115	25.4	133	138	6.35	6	NBR
KL46 140-115/1	140	115	25.4	132.6	137.5	9.52	6	NBR
KL46 X 140-118	140	118	26.5	136	139	5.1	6	NBR
KL46 140-123	140	123	26.5	136	139.4	7.2	6	NBR
KL46 150-125	150	125	25.4	142.6	147.5	9.5	6	NBR
KL46 X 150-128	150	128	26.5	146	149	5.1	6	NBR
KL46 150-133	150	133	26.5	146	149.4	7.2	5	NBR
KL46 155-130/1	155	130	25.4	147.6	152.5	9.52	6	NBR
KL46 X 160-130	160	130	25.4	153	157.5	6.35	7	NBR
KL46 160-130/1	160	130	25.4	152.6	157.5	9.52	7	NBR
KL46 160-135	160	135	25.4	152.6	157.5	9.52	6	NBR
KL46 160-143	160	143	26.5	156	159.4	7.2	5	NBR
KL46 165-140	165	140	25.4	157.6	162.5	9.52	6	NBR
KL46 X 165-143	165	143	26.5	161	163.5	5.25	4	NBR
KL46 170-145	170	145	25.4	161.72	167.1	12.7	6	NBR
KL46 170-148	170	148	26.5	166	169	5.1	6	NBR
KL46 180-150	180	150	35.4	172.95	177.87	6.35	7	NBR
KL46 X 180-155	180	155	25.4	171.72	177.1	12.7	6	NBR
KL46 X 180-158	180	158	26.5	176	179	5.1	6	NBR
KL46 180-163	180	163	26.5	176	179.4	7.2	5	NBR
KL46 X 190-165	190	165	25.4	181.72	187.05	12.7	6	NBR
KL46 200-170	200	170	35.4	193	198	6.35	7	NBR
KL46 X 200-175	200	175	31.5	196	199	6.6	6	NBR
KL46 200-175/1	200	175	25.4	191.62	197	12.7	6	NBR
KL46 200-180	200	180	31.5	196	199.4	9.2	6	NBR
KL46 X 210-185	210	185	25.4	201.62	207	12.7	6	NBR
KL46 X 220-195	220	195	25.4	211.62	217	12.7	6	NBR
KL46 220-200	220	200	31.5	216	219.4	9.2	6	NBR
KL46 X 230-205	230	205	25.4	221.62	227	12.7	6	NBR
KL46 240-215	240	215	25.4	231.62	237	12.7	6	NBR
KL46 X 250-225	250	225	25.4	241.62	247	12.7	6	NBR
KL46 250-230	250	230	31.5	246	249.4	9.2	6	NBR
KL46 260-235	260	235	35.4	252.9	257	12.7	6	NBR
KL46 300-275	300	275	31.5	296	299	6.6	6	NBR

Frequently Asked Questions

Q1: What materials are used in the KL46X piston seal?

The KL46X consists of a high-grade NBR profile ring for sealing, thermoplastic elastomer (TPE) support rings for extrusion resistance, and glass-reinforced PA guide rings for stability.

Q2: What is the maximum pressure limit for this seal?

The KL46X double acting compact piston seal is designed to handle pressures up to a maximum of 400 Bar.

Q3: Can this seal operate in extreme temperatures?

Yes, the seal is optimized for a temperature range between -30°C and +100°C, making it suitable for most industrial hydraulic environments.

Q4: In which machines is the KL46X typically applied?

It is widely used in heavy-duty applications including construction machinery, agricultural equipment, mobile hydraulic machinery, forklifts, and loading platforms.

Q5: What makes KL46X superior to standard compact seals?

The integration of glass-reinforced PA guide rings ensures higher load-bearing performance at elevated temperatures, while the special TPE geometry significantly improves resistance against extrusion.

Q6: What is your standard supply ability and delivery time?

We have a supply ability of 100,000 pieces per month. Typical delivery for orders is between 7 to 15 working days depending on quantity and stock.
