Interchangeable Sealing Elements

Sealing Elements Easy installation

PU Custom Hydraulic Seals

Place of Origin:

CHINA

Brand Name:

KELONG

Model Number:

KL-117

Send Inquiry

Product Description

KL117 - STATIC SEAL

Interchangeable For O-Ring And O-Ring With Back-Up Ring

KL117 static seal is a double-acting sealing element produced from thermoplastic polyurethane, providing higher extrusion resistance and longer service life compared to o-rings and other elastomer static seals.

Product Specifications
Name:
Custom Hydraulic Seals
Material:
PU (Thermoplastic Polyurethane)
Max Pressure:
600 Bar
Temperature Range:
-35°C to +110°C
Application:
High Pressure / Cranes
Key Advantages
Interchangeable for O-ring and O-ring with back-up ring
High extrusion resistance
Easy installation
Can be used at high pressure
No twisting in the housing
Area of Application
High pressure applications
Cranes
Construction machinery
Injection moulding machines
Standard industrial cylinders
Commercial Terms
Min. Order Quantity:
100
Packaging:
Customizable packaging
Delivery Time:
15 Days
Payment Terms:
L/C, T/T
Supply Ability:
100,000 pcs / month
Product Gallery

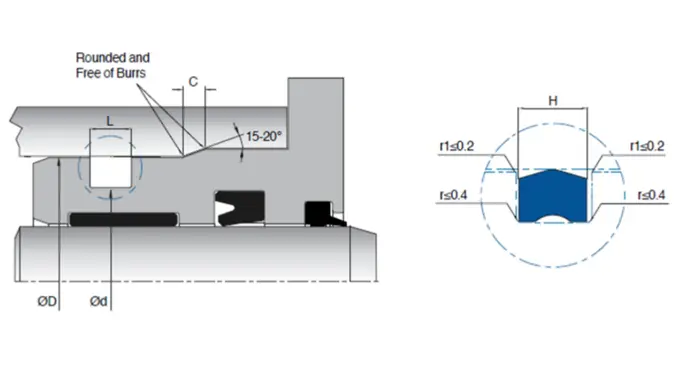

Custom Hydraulic Seals 0
Custom Hydraulic Seals 1
Frequently Asked Questions
What is the maximum pressure the KL117 seal can handle?
The KL117 static seal is designed for high-pressure applications and can handle a maximum pressure of up to 600 Bar.
Is the KL117 seal compatible with standard O-ring housings?
Yes, it is specifically designed to be interchangeable for O-rings and O-rings with back-up rings, ensuring no twisting in the housing.
What materials are used for these hydraulic seals?
These seals are produced from high-quality thermoplastic polyurethane (PU), which provides superior extrusion resistance.
What is the operating temperature range?
The seals perform effectively in temperatures ranging from a minimum of -35°C to a maximum of +110°C.
What are the typical applications for these seals?
Common applications include cranes, construction machinery, injection moulding machines, and standard industrial cylinders.
What is the standard delivery time and MOQ?
The minimum order quantity is 100 pieces, with a standard delivery time of approximately 15 days.
