Discount Excavator Hydraulic Piston Seals Double Acting NBR / TPE / POM Material Company, Companies

1 / 5

Discount Excavator Hydraulic Piston Seals Double Acting NBR / TPE / POM Material Company, Companies

Excavator Hydraulic Piston Seals

NBR Hydraulic Piston Seals

Double Acting Piston Seal Material

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL36

Send Inquiry

Product Description

📦Product Specifications

Style: Hydraulic Piston Seals

Material: NBR / TPE / POM

Pressure (max) Bar: 700

Temperature (max) °C: -30/+100

Sliding Speed (max) M/s: 0.5

Application: Excavators

🚚Payment & Shipping Terms

Packaging Details: Opp bags

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Paypal

Supply Ability: 100,000 pcs /months

Double Acting Compact Seal Sets For Working At High And Variable Pressures In Heavy Duty Applications

KL36 is a five piece double acting compact seal which consists of elastomeric sealing element, thermoplastic elastomer backup rings and thermoplastic guide rings. It is designed for working at high and variable pressures in heavy duty applications.

⭐Advantages

✔ Effective sealing during vibration and shock loading

✔ High extrusion resistance at high pressures

✔ High sealing performance in locked systems

🛠️Area of Application

● Construction machinery

● Excavators

● Lifting platforms

● Heavy duty machinery

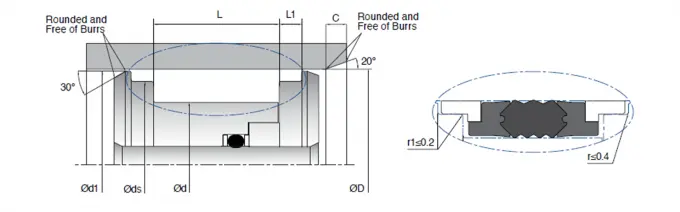

Excavator Hydraulic Piston Seals Double Acting

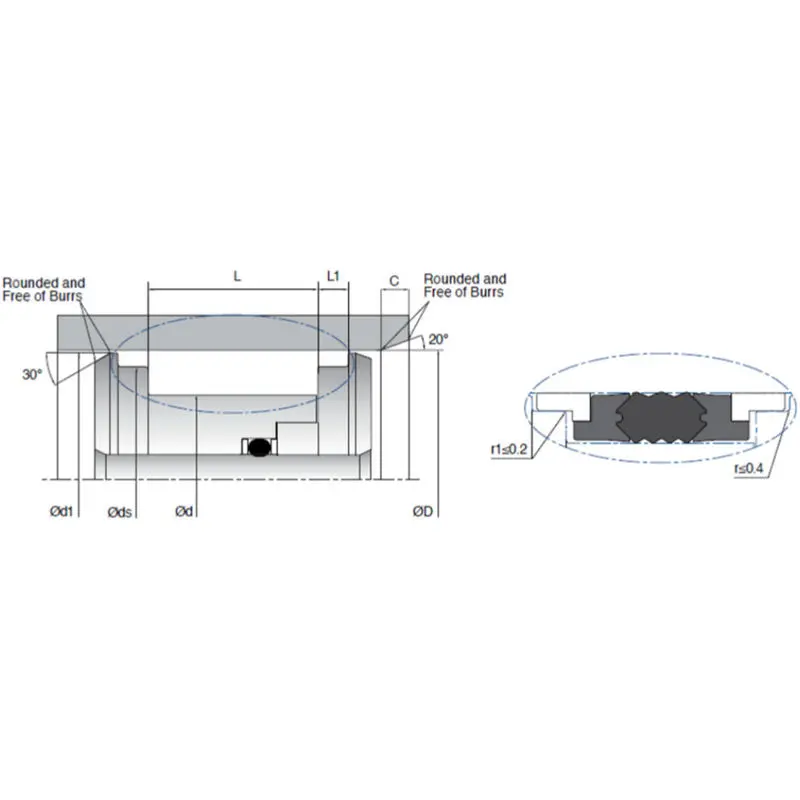

📊Dimension Data

Ref No.	D (H11)	d (h11)	L (+0.2/-0)	ds (h8)	d1 (±0.1)	L1 (+0.2/-0)	C	MATERIAL
KL36 050-034	50	34	32	43.77	49	6.35	5	NBR
KL36 060-044	60	44	32	53.8	57.8	6.35	5	NBR
KL36 063-047	63	47	32	56.74	60.8	6.35	5	NBR
KL36 070-050	70	50	35	62.62	68.5	9.52	5	NBR
KL36 080-060	80	60	35	72.62	77.5	9.52	5	NBR
KL36 085-065	85	65	35	77.62	82.5	9.52	5	NBR
KL36 090-070	90	70	35	82.58	87.8	9.52	5	NBR
KL36 095-075	95	75	35	87.6	92.5	9.52	5	NBR
KL36 100-080	100	80	35	92.6	97.5	9.52	7	NBR
KL36 110-090	110	90	35	102.7	107.5	9.52	7	NBR
KL36 120-100	120	100	35	112.8	117.5	9.52	7	NBR
KL36 125-100	125	100	45	116.82	124	12.7	7	NBR
KL36 130-110	130	110	35	122.7	127.3	9.52	7	NBR
KL36 140-120	140	120	35	132.7	137.3	9.52	7	NBR
KL36 150-120	150	120	44	143.85	148	9.5	7	NBR
KL36 150-125	150	125	45	141.72	147.3	12.7	7	NBR
KL36 160-135	160	135	45	151.72	157.1	12.7	7	NBR
KL36 170-140	170	140	45	163	167.8	12.7	7	NBR
KL36 180-155	180	155	45	171.6	177.1	12.7	7	NBR
KL36 190-165	190	165	45	181.72	187.1	12.7	7	NBR
KL36 200-175	200	175	45	191.72	197.1	12.7	10	NBR
KL36 210-185	210	185	45	201.6	207.1	12.7	10	NBR
KL36 220-195	220	195	45	211.6	217.6	12.7	10	NBR
KL36 250-225	250	225	45	241.72	247.1	12.7	10	NBR
KL36 280-255	280	255	45	271.72	277.1	12.7	10	NBR
KL36 300-275	300	275	45	291.72	297.1	12.7	10	NBR
KL36 320-295	320	295	45	311.72	317.1	12.7	10	NBR
KL36 350-325	350	325	45	341.72	347.1	12.7	10	NBR

❓Frequently Asked Questions

What is the structural composition of the KL36 compact seal?

The KL36 is a five-piece double-acting compact seal. It includes an elastomeric sealing element, thermoplastic elastomer backup rings, and thermoplastic guide rings.

What is the maximum pressure these seals can withstand?

These seals are designed for heavy-duty applications and can handle a maximum pressure of up to 700 Bar.

What materials are used in the production of these piston seals?

The primary materials used are NBR (Nitrile Butadiene Rubber), TPE (Thermoplastic Elastomer), and POM (Polyoxymethylene).

Are these seals suitable for extreme temperature conditions?

Yes, the KL36 seals are designed to operate effectively within a temperature range of -30°C to +100°C.

What are the primary applications for the KL36 seal?

They are widely used in construction machinery, excavators, lifting platforms, and other heavy-duty hydraulic systems.

What is the typical delivery time for an order?

Standard delivery time ranges between 7 to 15 working days, depending on order volume and requirements.
