Meets Standards: SAE 100R2 And EN 853 2SN

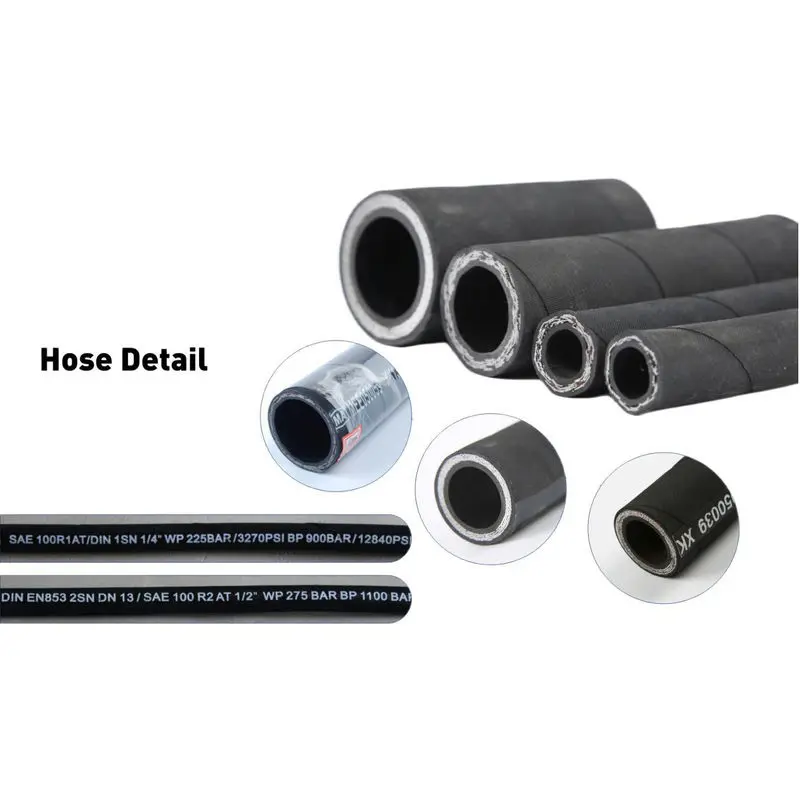

1. Structure:
Core: PA/PU
Reinforcement: Fiber braid / Steel wire braid / Steel winding
Cover: Usually PU or PA
2. Main Use:

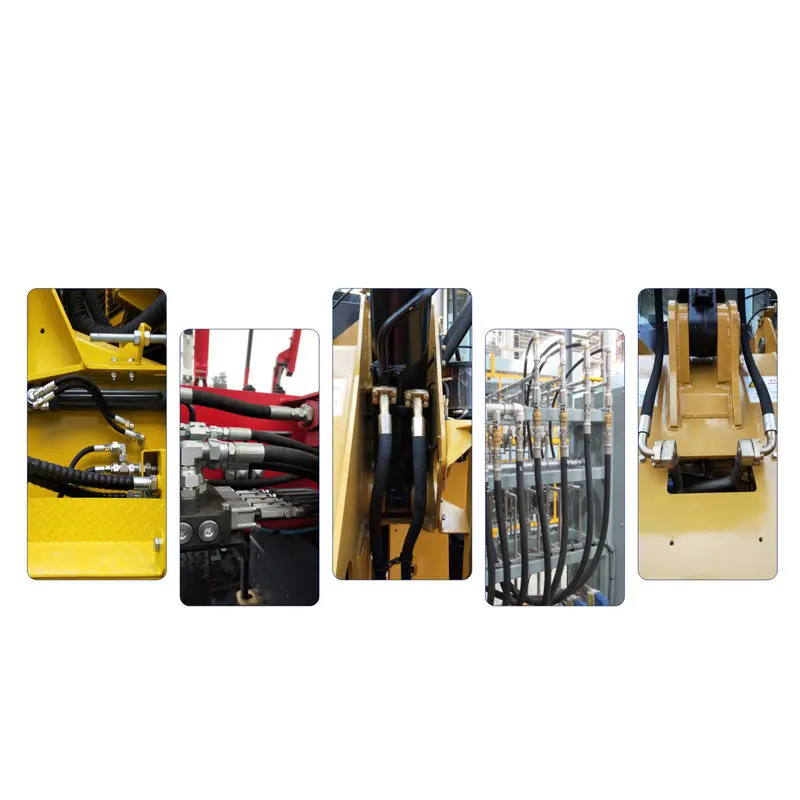

Hydraulic tools, ultra high pressure water cleaning, transport of liquid (water, oil, gas), high pressure painting, and test systems.
3. Characteristics:
Oil resistance, high pressure resistance, acid and alkali resistance, wear resistance, smooth lining, high chemical resistance, and long service life.
| TYPE | Dash Size | I.D (mm) | O.D (mm) | Working Pressure | Min Burst Pressure | Min Bend Radius | Weight (Kg/m) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | Inch | Min | Max | Min | Max | Mpa | Psi | Mpa | Psi | Inch | mm | ||
| KS1702-03 | 5 | 3/16 | 4.6 | 5.4 | 10.6 | 11.7 | 35 | 5075 | 140 | 20300 | 3.54 | 90 | 0.32 |
| KS1702-04 | 6.3 | 1/4 | 6.2 | 7.0 | 12.1 | 13.3 | 35 | 5075 | 140 | 20300 | 3.94 | 100 | 0.36 |
| KS1702-05 | 8 | 5/16 | 7.7 | 8.5 | 13.7 | 14.9 | 29.7 | 4310 | 119 | 17255 | 4.53 | 115 | 0.45 |
| KS1702-06 | 10 | 3/8 | 9.3 | 10.1 | 16.1 | 17.3 | 28 | 4060 | 112 | 16240 | 4.92 | 130 | 0.54 |
| KS1702-08 | 12.5 | 1/2 | 12.3 | 13.5 | 19.0 | 20.6 | 24.5 | 3550 | 98 | 14210 | 7.09 | 180 | 0.68 |
| KS1702-10 | 16 | 5/8 | 15.5 | 16.7 | 22.2 | 23.8 | 19.2 | 2780 | 77 | 11165 | 8.07 | 200 | 0.80 |
| KS1702-12 | 19 | 3/4 | 18.6 | 19.8 | 26.2 | 27.8 | 15.7 | 2280 | 63 | 9135 | 9.45 | 240 | 0.94 |
| KS1702-16 | 25 | 1 | 25.0 | 26.4 | 34.1 | 35.7 | 14 | 2030 | 56 | 8120 | 11.81 | 300 | 1.35 |
| KS1702-20 | 31.5 | 1-1/4 | 31.4 | 33.0 | 43.2 | 45.6 | 11.3 | 1640 | 45.5 | 6600 | 16.54 | 420 | 2.15 |
| KS1702-24 | 38 | 1-1/2 | 37.7 | 39.3 | 49.6 | 52.0 | 8.7 | 1260 | 35 | 5075 | 19.69 | 500 | 2.65 |
| KS1702-32 | 51 | 2 | 50.4 | 52.0 | 62.3 | 64.7 | 7.8 | 1130 | 31.5 | 4570 | 24.8 | 630 | 3.42 |
| KS1702-40 | 63 | 2-1/2 | 63.1 | 65.1 | 74.6 | 77.8 | 7 | 1015 | 28 | 4060 | 29.92 | 760 | 4.20 |
