KL53 is a glass-fibre reinforced POM guide ring, designed for general purpose in hydraulic applications. Glass-fibre composition in the material increases the load bearing capacity of the guiding element.

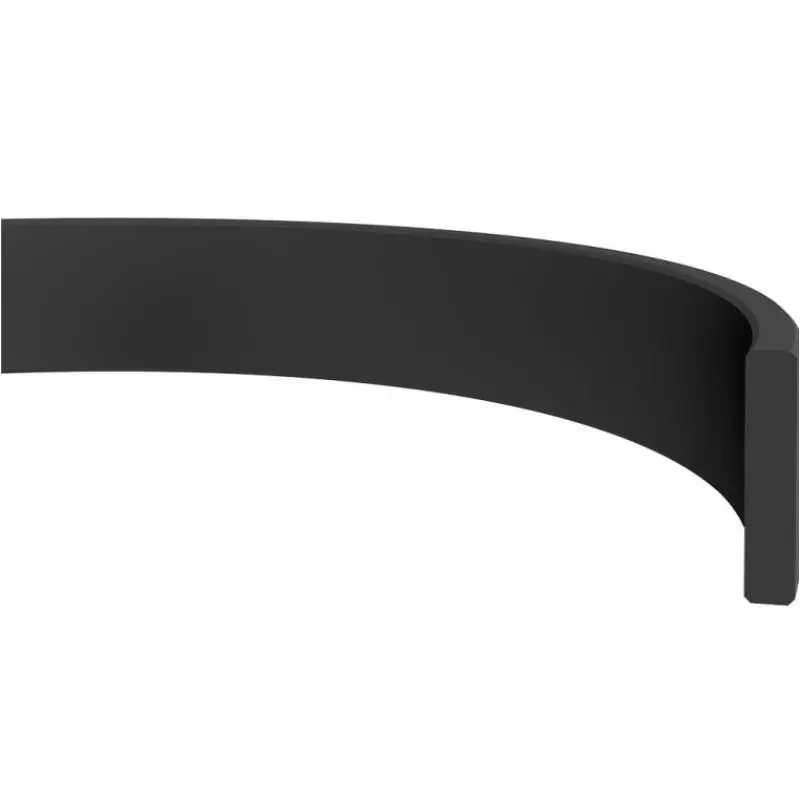

Hydraulic Guide Ring Bearing strip has the ability to support side loads and eliminate ‘stick slip’ between moving parts. The accurately dimensioned rectangular cross section is produced from a special combination of PTFE and Bronze materials.
It has excellent heat resistance and strength to resist creep, making it suitable for bearings with reciprocating, oscillating or rotary movement, whether lubricated or not. Our standard range of cross section sizes are proportioned to be wrapped around a wide range of rod or piston diameters.

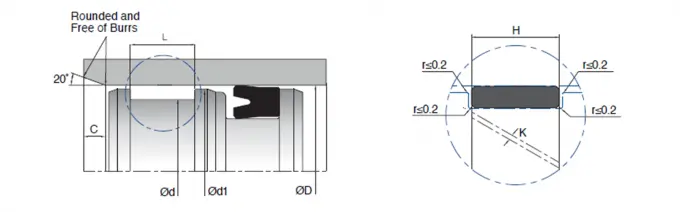

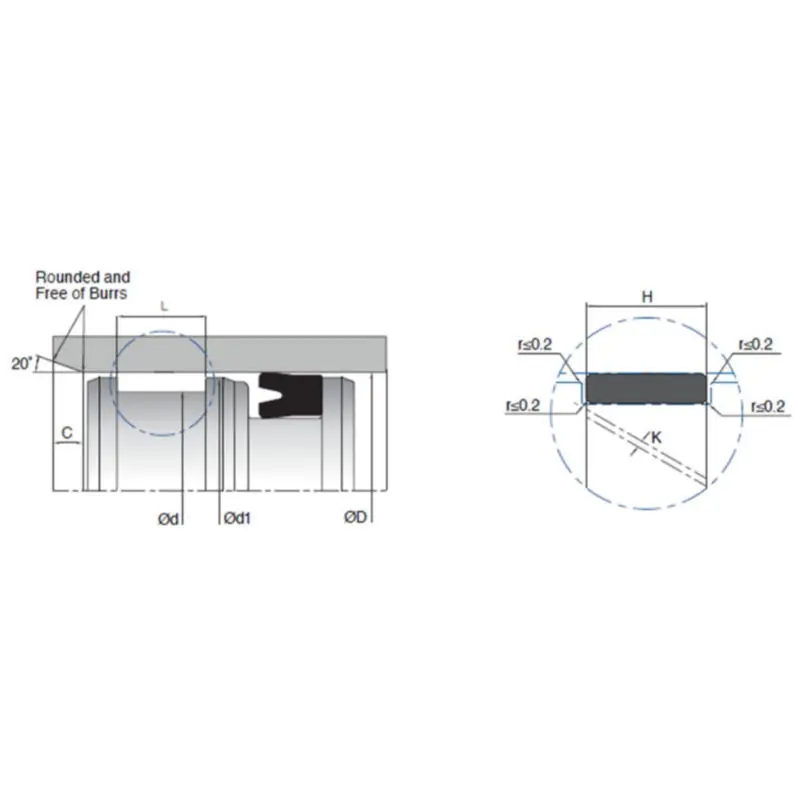

| Model No. | D (H8) | d (h8) | d1 (h9) | L (+0.2/-0) | H | MATERIAL |
|---|---|---|---|---|---|---|
| KL53-020 | 20 | 16 | 19.6 | 9.6 | 9.4 | POM |
| KL53-020/1 | 20 | 17 | 19.6 | 3.2 | 3 | POM |
| KL53-022 | 22 | 18 | 21.6 | 9.6 | 9.4 | POM |
| KL53-025 | 25 | 21 | 24.6 | 9.7 | 9.5 | POM |
| KL53-025/1 | 25 | 21 | 24.6 | 8.2 | 8 | POM |
| KL53-025/2 | 25 | 22 | 24.6 | 4.2 | 4 | POM |
| KL53-025/3 | 25 | 21.9 | 24.6 | 4 | 3.8 | POM |
| KL53-025/4 | 25 | 22 | 24.6 | 5.8 | 5.6 | POM |
| KL53-030 | 30 | 26 | 29.6 | 9.7 | 9.5 | POM |
| KL53-030/1 | 30 | 25 | 29.5 | 5.6 | 5.4 | POM |
| KL53-032 | 32 | 28 | 31.6 | 9.7 | 9.5 | POM |
| KL53-035 | 35 | 30 | 34.5 | 15.2 | 15 | POM |
| KL53-040 | 40 | 35 | 39.5 | 15.2 | 15 | POM |
| KL53-045 | 45 | 40 | 44.5 | 15.2 | 15 | POM |
| KL53-050 | 50 | 45 | 49.5 | 15.2 | 15 | POM |
| KL53-060 | 60 | 55 | 59.5 | 15.2 | 15 | POM |
| KL53-070 | 70 | 65 | 69.5 | 15.2 | 15 | POM |
| KL53-080 | 80 | 75 | 79.5 | 15.2 | 15 | POM |
| KL53-100 | 100 | 95 | 99.5 | 15.2 | 15 | POM |
| KL53-150 | 150 | 144 | 149.4 | 12.7 | 12.5 | POM |
| KL53-250 | 250 | 244 | 249.4 | 19.2 | 19 | POM |
