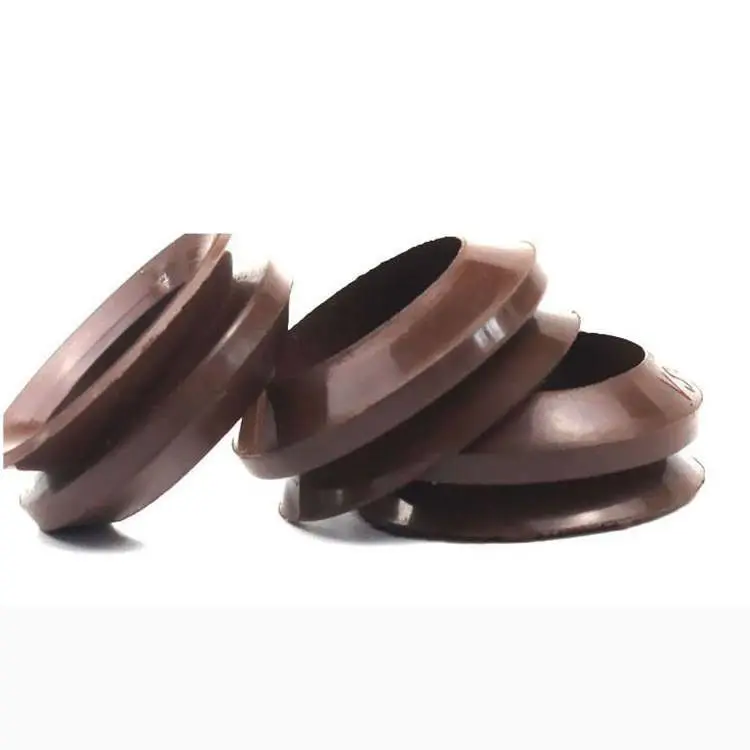

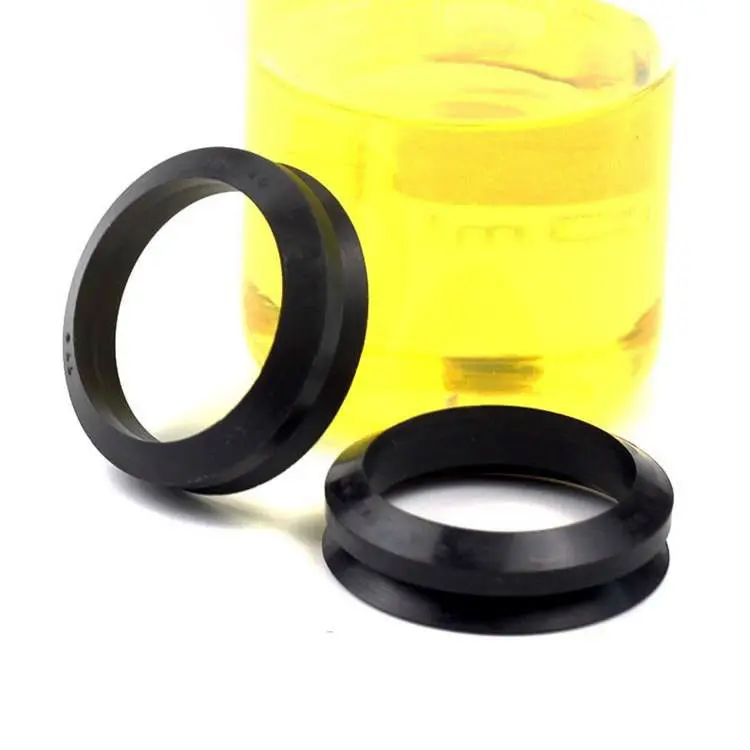

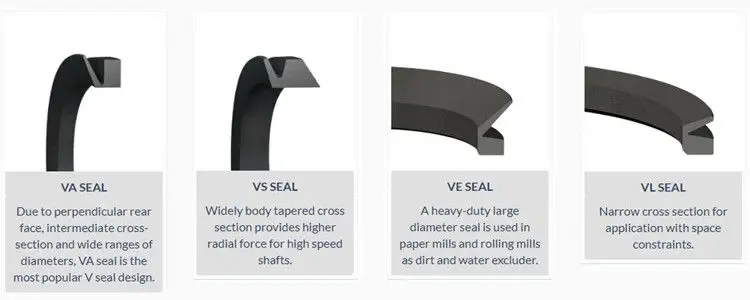

Type S V-rings with bevel back serves as a pressure-less, axial rod seal which is clamped on a shaft. The flexible sealing lip seals a counterface at a right angle to the shaft, preventing dirt, dust and splash to enter the construction. Available in sizes from .180″ (4.5mm) shaft to 8.270″ (210mm). Commonly used in agricultural and automotive applications.

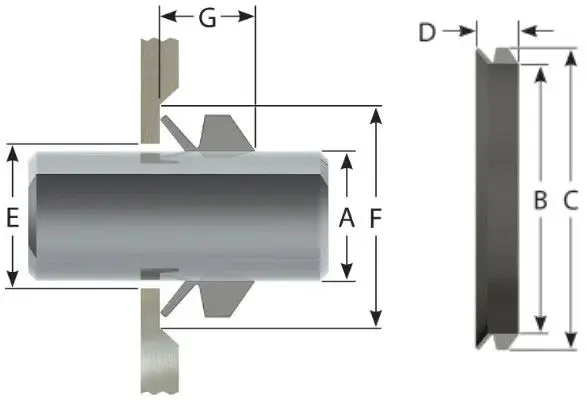

| Part Number | Shaft Diameter (A) | Seal Dimensions | Housing Dimensions | ||||
|---|---|---|---|---|---|---|---|
| I.D. (B) | O.D (C) | Height (D) | I.D. (E) | O.D (F) | Width (G) | ||
| VS 005 | 4.50-5.50 | 4.00 | 8.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 006 | 5.50 - 6.50 | 5.00 | 9.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 007 | 6.50-8.00 | 6.00 | 10.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 008 | 8.00-9.50 | 7.00 | 11.00 | 5.20 | A+1.00 | A+6.00 | 4.50±0.40 |
| VS 010 | 9.50-11.50 | 9.00 | 15.00 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 012 | 11.50-13.50 | 10.50 | 16.50 | 7.70 | A+ 2.00 | A+9.00 | 6.70±0.60 |
| VS 014 | 13.50-15.50 | 12.50 | 18.50 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 016 | 15.50-17.50 | 14.00 | 20.00 | 7.70 | A+2.00 | A+9.00 | 6.70±0.60 |
| VS 018 | 17.50-19.00 | 16.00 | 22.00 | 7.70 | A+2.00 | A+9.00 | 6.70± 0.60 |
| VS 020 | 19.00-21.00 | 18.00 | 26.00 | 10.50 | A+2.00 | A+ 12.00 | 9.00±0.80 |
| VS 030 | 29.00-31.00 | 27.00 | 35.00 | 10.50 | A+ 3.00 | A+ 12.00 | 9.00± 0.80 |
| VS 050 | 48.00-53.00 | 45.00 | 55.00 | 13.00 | A+3.00 | A+ 15.00 | 11.00±1.00 |
| VS 100 | 98.00-105.00 | 90.00 | 102.00 | 15.50 | A+4.00 | A+18.00 | 13.50±1.20 |
| VS 199 | 195.00-210.00 | 180.00 | 196.00 | 20.50 | A+ 5.00 | A+24.00 | 18.00±1.80 |
