400bar Oil Piston Seal

Rubber PTFE Asymmetric Rod Seals

PTFE Hydraulic Cylinder Oil Piston Seal

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

K03-P

Send Inquiry

Product Description

K03-P Product Overview

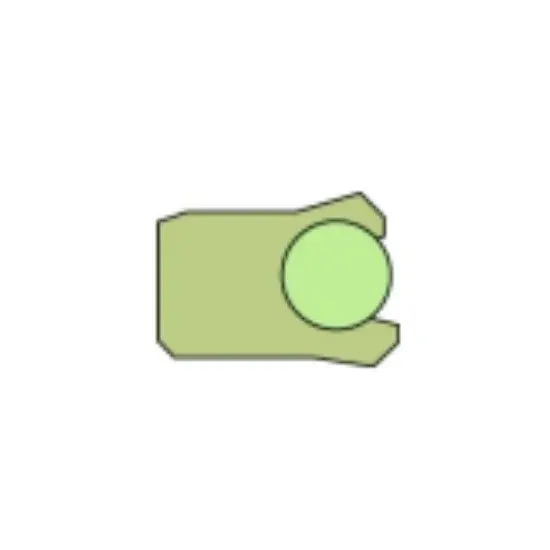

O-ring Preloaded Asymmetric Piston Seals

The K03-P is a high-performance asymmetric piston seal preloaded by an O-ring. Specifically engineered for demanding industrial environments, it offers exceptional pressure retention and durability.

  • Suitable for applications with large bias loads.
  • Excellent pressure retention capabilities.
  • Designed for a wide range of operational temperatures.
  • Ideal for both stationary and dynamic backwards/forwards actions.

Technical Specifications

Material
NBR / TPE / POM / PU / FKM
Max Pressure
400 Bar
Temperature Range
-50°C to +100°C
Sliding Speed
0.5 M/s
Seal Style
Piston Seals
Application Type
Asymmetric Standard Apps
Action Type
Backwards & Forwards Action

Logistics & Supply

Packaging
Opp bags
Delivery Time
7-15 Work Days
Payment Terms
L/C, T/T, Paypal
Supply Ability
100,000 pcs / Month

Product Gallery

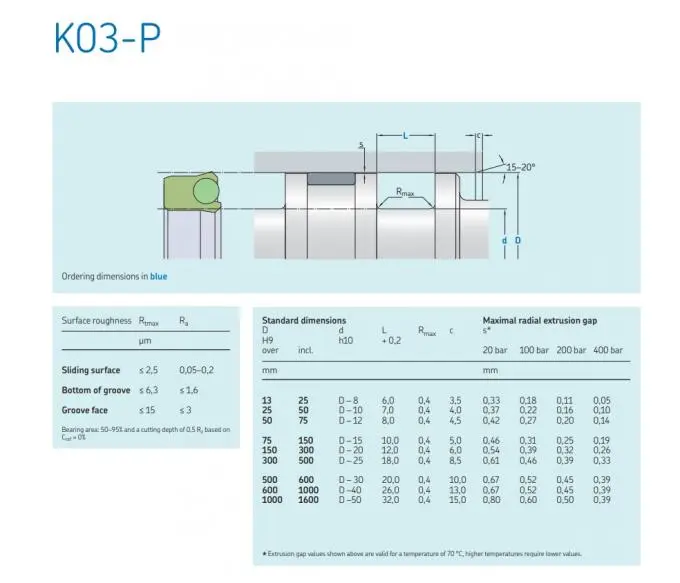

K03-P Asymmetric Piston Seal Hydraulic Component

Frequently Asked Questions

What materials are available for the K03-P piston seal?
The K03-P seal is available in a variety of high-grade materials including NBR, TPE, POM, PU, and FKM to suit different industrial requirements.
What is the maximum pressure limit for these seals?
These asymmetric piston seals are designed to handle high-pressure environments up to a maximum of 400 Bar.
In which temperature ranges can the K03-P operate?
The seal is highly versatile, operating effectively in temperatures ranging from as low as -50°C to as high as +100°C.
What applications are best suited for this product?
It is particularly suitable for hydraulic cylinders or pumps with large bias loads and standard asymmetric piston sealing applications involving backwards and forwards motion.
What is the typical lead time for an order?
Standard delivery time ranges between 7 to 15 working days, depending on the order volume and specific material requirements.
How many units can be supplied per month?
We maintain a high supply capacity of up to 100,000 pieces per month to ensure consistent availability for large-scale projects.
