⚙️ KDAS / TPM / DPM PRODUCT DETAILS
Material:
TPE+NBR TPE+FKM Others
Working Pressures:
35 Mpa
Temperature Max:
-35℃ ～ +150℃
Working Speed:
≤0.5m/s
Style:
Piston Seals
Seal Form:
Bidirectional Sealing
📝 SURFACE FINISH REQUIREMENTS
✓ Contact surface: Ra ≤ 0.3um
✓ Groove bottom: Ra ≤ 1.8um
✓ Groove side: Ra ≤ 3um
💡 PURPOSE AND PERFORMANCE

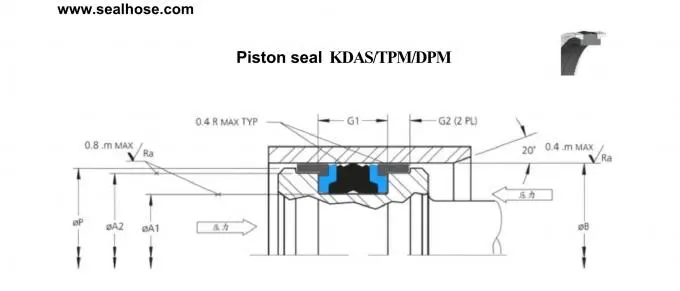

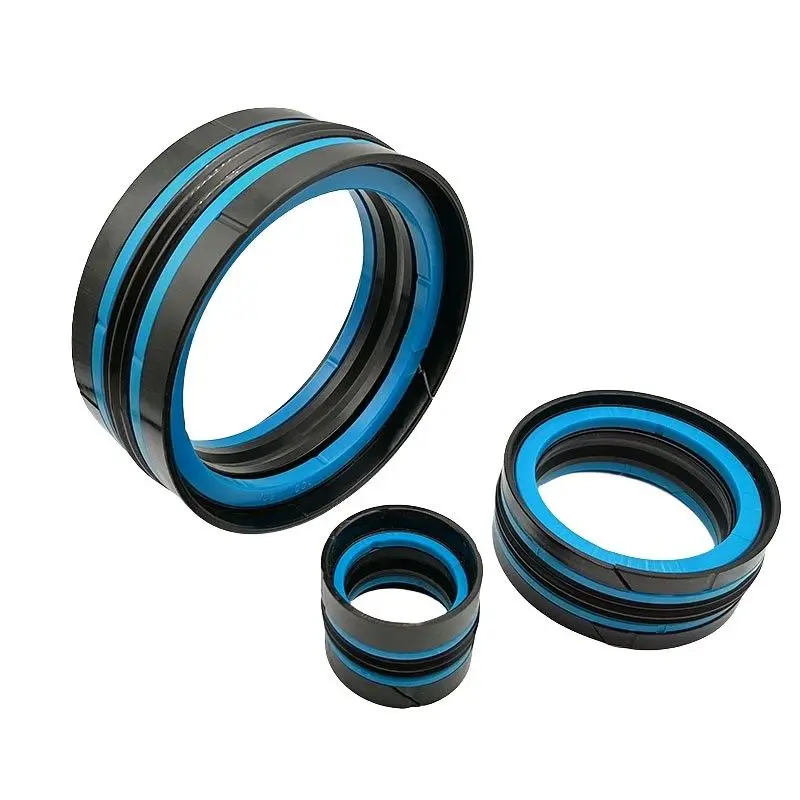

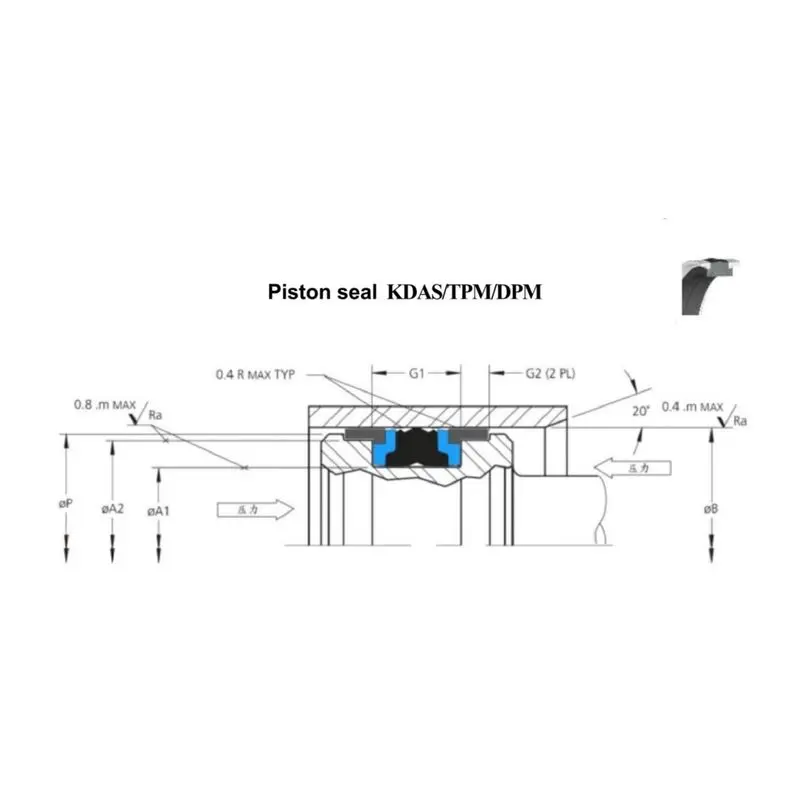

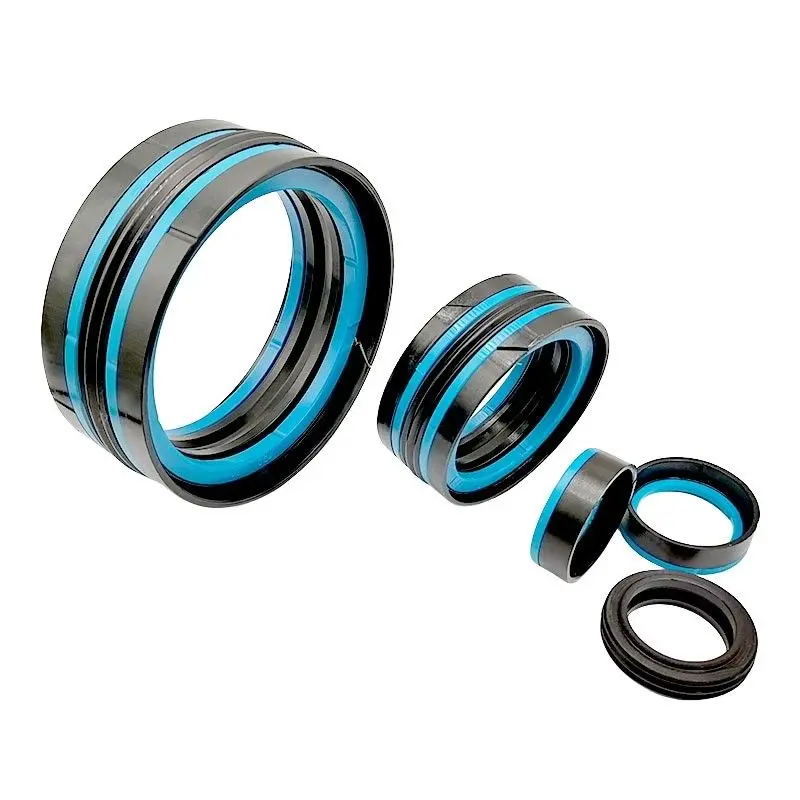

The KDAS/TPM/DPM combination sealing ring includes an elastic toothed sealing ring, two back-up rings and two wear-resistant rings. There is a real sealing element in the middle; a back-up ring and a wear ring are placed on each side. The back-up ring prevents the sealing ring from being squeezed out into the gap; the middle sealing ring is a toothed sealing ring, which can provide good sealing effect both at rest and in motion. The function of the wear ring is to guide the piston in the cylinder and to withstand radial force. Beveled back-up rings and wear rings are easy to install and are suitable for combined seals installed in closed grooves.
KDAS combined sealing ring is a double-acting piston sealing ring, suitable for sealing components in reciprocating hydraulic cylinders and pistons, such as: light bulldozers, injection molding machines, bottle blowing machines, cranes, forklifts, hydraulic valves and agricultural machinery, etc.
🛠️ WORKING CONDITIONS & MATERIALS
Temperature:
-35~+150℃
Pressure:
35Mpa
Teeth Seal:
Nitrile rubber NBR
Wear Ring:
Thermoplastic Polymer
Medium: Petroleum-based hydraulic oil, flame retardant fluid, environmentally friendly and safe hydraulic oil (bio-oil), water and others, depending on the material of the sealing ring.
📦 LOGISTICS & SHIPPING TERMS
Packaging:
Opp bags
Delivery Time:
7-15 work days
Payment:
L/C, T/T, Paypal
Supply Ability:
100,000 pcs / month
❓ FAQ
Q1: What components are included in a KDAS combination seal?
A1: It includes an elastic toothed sealing ring, two back-up rings, and two wear-resistant rings designed for bidirectional sealing.
Q2: What is the maximum working pressure these seals can handle?
A2: The KDAS seals are designed to operate under working pressures up to 35 Mpa.
Q3: What applications are suitable for KDAS piston seals?
A3: They are widely used in light bulldozers, injection molding machines, cranes, forklifts, and agricultural machinery.
Q4: Can these seals withstand high temperatures?
A4: Yes, the standard material configuration can handle temperatures ranging from -35℃ up to +150℃.
Q5: What are the standard materials used for the rings?
A5: The teeth seal is typically made of Nitrile rubber (NBR), the retaining ring is polyurethane elastomer, and the wear ring is reinforced thermoplastic polymer.
Q6: What is the typical delivery timeframe for bulk orders?
A6: Standard delivery time is between 7 to 15 work days depending on the order volume.
