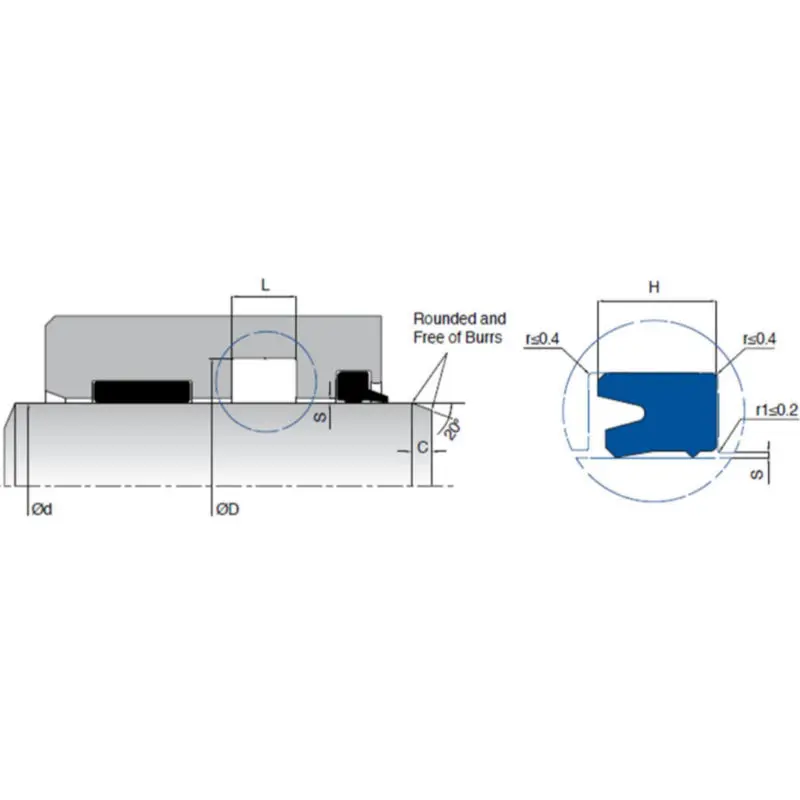

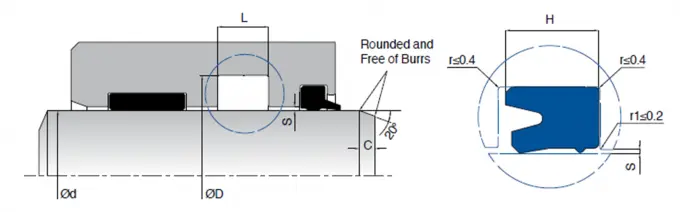

KL08 is a single acting rod seal with an extra lip designed for a wide range of hydraulic applications. K33 lip design offers an optimum oil film while the secondary lip provides additional wiping performance and system safety.
| Model | d (f8) | D (H10) | L (+0.2/-0) | H | C | Material |
|---|---|---|---|---|---|---|
| KL08-006 | 6 | 9 | 4 | 3.5 | 2.5 | PU |
| KL08-012 | 12 | 24 | 9 | 8 | 5.5 | PU |
| KL08-012/1 | 12 | 22 | 8 | 7 | 5.5 | PU |
| KL08-014 | 14 | 24 | 8.2 | 7.2 | 5.5 | PU |
| KL08-015 | 15.87 | 22.22 | 7.14 | 6.35 | 3.5 | PU |
| KL08-016 | 16 | 22 | 5 | 4.5 | 3.5 | PU |
| KL08-016/1 | 16 | 26 | 9 | 8 | 5.5 | PU |
| KL08-016/2 | 16 | 24 | 6 | 5 | 4.5 | PU |
| KL08-020 | 20 | 30 | 7 | 6 | 5.5 | PU |
| KL08-025 | 25 | 35 | 7 | 6 | 5.5 | PU |
| KL08-030 | 30 | 40 | 9 | 8 | 5.5 | PU |
| KL08-035 | 35 | 45 | 9 | 8 | 5.5 | PU |
