The KL09 heavy duty hydraulic rod seal set consists of one elastomer sealing ring, one elastomer or fabric elastomer extrusion ring and one thermoplastic backup ring. The back-up ring and extrusion ring supply long term service life while the elastomer ring gives an ability of superior sealing at variable and high pressures.

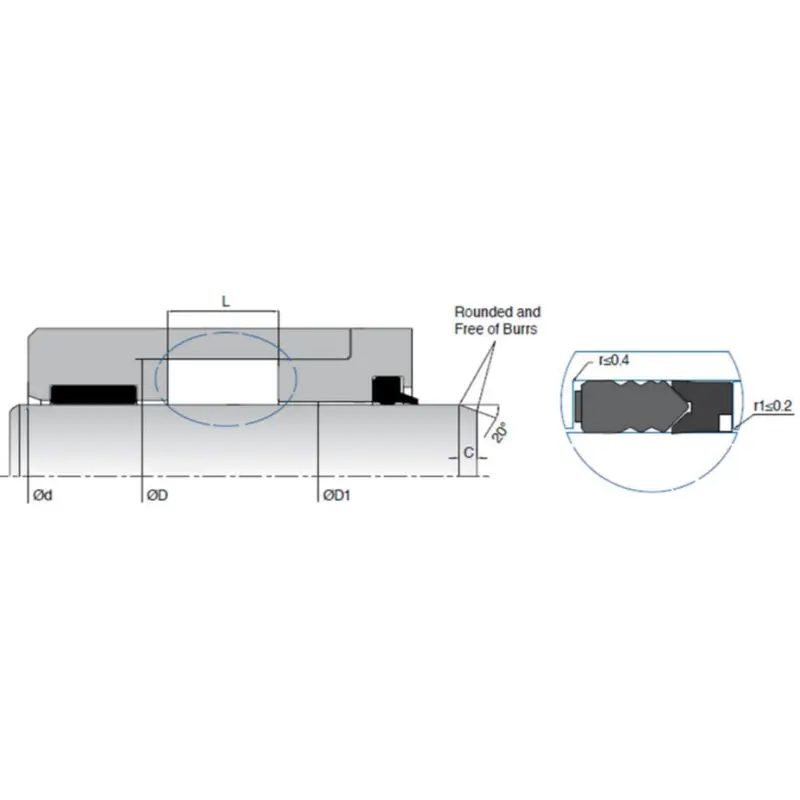

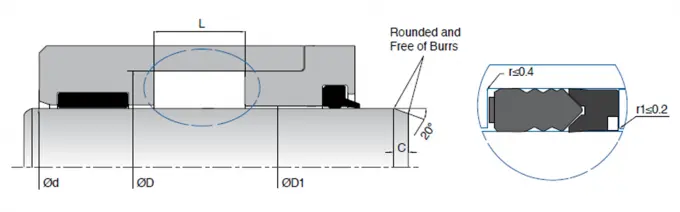

| Model No. | d (f8) | D (H10) | L (+0.4/-0) | D1 (+0.1/-0) | C | Material |
|---|---|---|---|---|---|---|
| KL09-030 | 30 | 43 | 20 | 30.4 | 5 | NBR |
| KL09-032 | 32 | 47 | 22.5 | 32.4 | 5 | NBR |
| KL09-035 | 35 | 47 | 22.5 | 35.4 | 5 | NBR |
| KL09-040 | 40 | 55 | 22.5 | 40.4 | 5 | NBR |
| KL09-045 | 45 | 60 | 22.5 | 45.4 | 5 | NBR |
| KL09-050 | 50 | 65 | 22.5 | 50.4 | 5 | NBR |
| KL09-055 | 55 | 70 | 22.5 | 55.4 | 5 | NBR |
| KL09-060 | 60 | 75 | 22.5 | 60.4 | 5 | NBR |
| KL09-063 | 63 | 83 | 37 | 63.4 | 5 | NBR |
| KL09-070 | 70 | 85 | 22.5 | 70.4 | 5 | NBR |
| KL09-080 | 80 | 100 | 30 | 80.4 | 5 | NBR |
| KL09-090 | 90 | 110 | 30 | 90.4 | 5 | NBR |
| KL09-100 | 100 | 120 | 30 | 100.4 | 7 | NBR |
| KL09-120 | 120 | 140 | 30 | 120.7 | 7 | NBR |
| KL09-140 | 140 | 160 | 30 | 140.7 | 7 | NBR |
| KL09-160 | 160 | 180 | 28 | 160.7 | 7 | NBR |
| KL09-200 | 200 | 225 | 35 | 200.7 | 7 | NBR |
| KL09-260 | 260 | 285 | 35 | 260.7 | 10 | NBR |
