KL10 single acting rod seal consists of a PTFE sealing ring and an energizer elastomer o-ring. It is preferred in many applications as a single rod seal or as a tandem while offering excellent sealing performance and low friction.

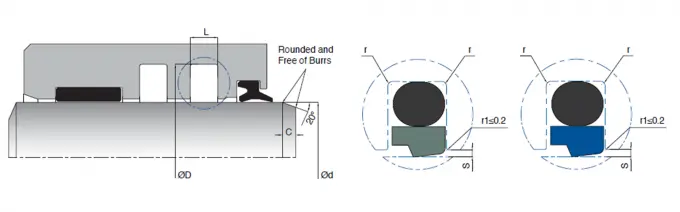

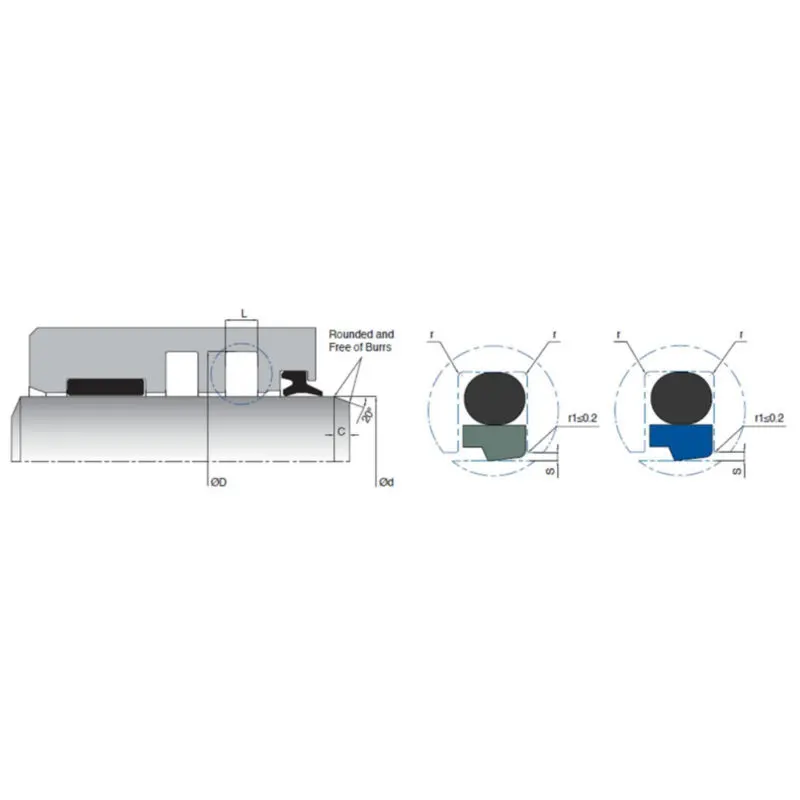

| Ref No. | d (f8) | D (H9) | L (+0.2/-0) | r | C | O-Ring | MATERIAL |
|---|---|---|---|---|---|---|---|
| KL10-003 | 3 | 7.9 | 2.2 | 0.4 | 2 | 4.48x1.78 | PTFE |
| KL10-004 | 4 | 8.9 | 2.2 | 0.4 | 2 | 5.28x1.78 | PTFE |
| KL10-005 | 5 | 9.9 | 2.2 | 0.4 | 2 | 6.75x1.78 | PTFE |
| KL10-006 | 6 | 10.9 | 2.2 | 0.4 | 2 | 7.66x1.78 | PTFE |
| KL10-008 | 8 | 12.9 | 2.2 | 0.4 | 2 | 9.66x1.78 | PTFE |
| KL10-010 | 10 | 14.9 | 2.2 | 0.4 | 2 | 11.11x1.78 | PTFE |
| KL10-012 | 12 | 19.3 | 3.2 | 0.6 | 2.5 | 13.95x2.62 | PTFE |
| KL10-015 | 15 | 22.3 | 3.2 | 0.6 | 2.5 | 17.86x2.62 | PTFE |
| KL10-020 | 20 | 30.7 | 4.2 | 1 | 3.5 | 24.99x3.53 | PTFE |
| KL10-030 | 30 | 40.7 | 4.2 | 1 | 3.5 | 34.52x3.53 | PTFE |
| KL10-040 | 40 | 55.1 | 6.3 | 1.3 | 5.5 | 47x5.33 | PTFE |
| KL10-050 | 50 | 65.1 | 6.3 | 1.3 | 5.5 | 56.52x5.33 | PTFE |
| KL10-060 | 60 | 75.1 | 6.3 | 1.3 | 5.5 | 66.04x5.33 | PTFE |
| KL10-100 | 100 | 115.1 | 6.3 | 1.3 | 5.5 | 104.14x5.33 | PTFE |
| KL10-200 | 200 | 220.5 | 8.1 | 1.8 | 7.5 | 208.92x6.99 | PTFE |
| KL10-500 | 500 | 524 | 8.1 | 1.8 | 8 | 506.86x6.99 | PTFE |
The KL10 seal is a composite design consisting of a high-performance PTFE sealing ring and an elastomer O-ring which acts as the energizer to ensure constant contact.
This seal is designed for heavy-duty applications and can handle a maximum pressure of up to 400 Bar.
It is widely used in wind turbines, forklifts, automotive manufacturing, injection moulding machines, and various construction machinery applications.
Yes, the KL10 seal supports sliding speeds up to 15.0 m/s for PTFE materials, making it ideal for high-frequency applications like servo cylinders.
The standard delivery time is between 7 to 15 work days, depending on the order volume and specific size requirements.
Yes, the KL10 rod seals are designed to fit housing grooves in accordance with the ISO 7425/1 standard.
