Cheap KL100 TPU Double Lip Wiper Seal Red / Blue / Black for Pneumatic Cylinders Product, Companies

1 / 5

Cheap KL100 TPU Double Lip Wiper Seal Red / Blue / Black for Pneumatic Cylinders Product, Companies

TPU Double Lip Wiper Seal

KELONG Double Lip Wiper Seal

Pneumatic Cylinders Double Wiper Seal

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL100

Send Inquiry

Product Description

📦 Product Specifications

Name: TPU Double Lip Wiper Seal

Material: PU

Max Temperature: +100 °C

Sliding Speed: 1.0 M/s

Application Area: Pneumatic Cylinders

Color: Red / Blue / Black / Custom

💳 Payment & Shipping Terms

Minimum Order: 100 pcs

Packaging: Customizable

Delivery Time: 15 Days

Payment Terms: L/C, T/T

Supply Ability: 100,000 pcs / Month

🔍 Product Overview

KL100 is a TPU double wiper featuring a static sealing lip as an addition to the wiping lip. The dynamic lips of the KL100 double wiper are engineered with a specific radius to optimize the oil film on the counter-running surface. Additionally, the seal geometry is designed to relief hydrodynamic pressure within the system effectively.

⭐ Key Advantages

Superior wiping performance
Notch design avoids hydrodynamic pressure build-up
Double lip design ensures thin oil film
No twisting in the housing
Excellent tear and rupture properties for heavy conditions
Exterior static sealing lip prevents leakage
Easy installation process

🛠️ Area of Application

Construction machinery
Mobile machinery
Cranes
Industrial cylinders
Forklifts
Cylinders working in open-air environments

🖼️ Visual Presentation

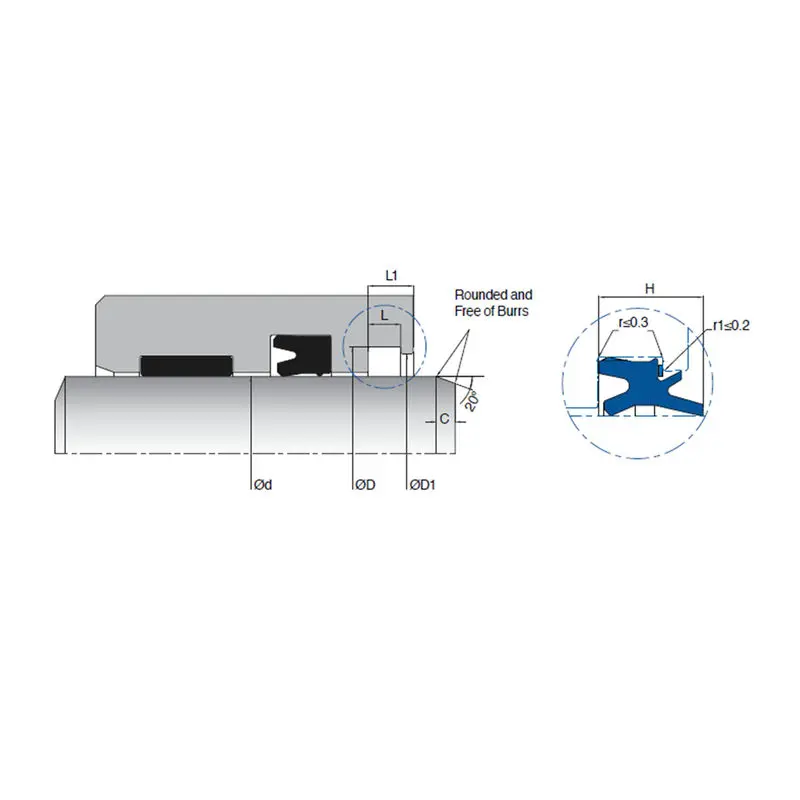

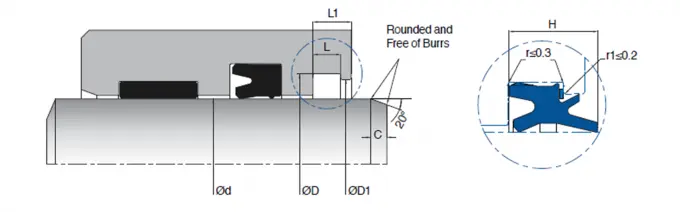

TPU Double Lip Wiper Seal Technical Drawing

📊 Technical Parameters

Model No.	d (f7)	D (H9)	D1 (H10)	L (+0.2/-0)	L1	H	Material
KL100-020	20	26	24.6	4	6	7	PU
KL100-020/1	20	28	26	4	6	7	PU
KL100-025	25	33	31	4	6	7	PU
KL100-030	30	38	36	4	6	7	PU
KL100-032	32	40	38	4	6	7	PU
KL100-035	35	43	41	4	6	7	PU
KL100-036	36	44	42	5	7	8	PU
KL100-040	40	48	46	4	6	7	PU
KL100-040/1	40	50	48	6.3	8.3	9	PU
KL100-045	45	53	51	4	6	7	PU
KL100-046	46	54	52	4	6	7	PU
KL100-048	48	58	55	6.3	8.3	9	PU
KL100-050	50	60	57	6.3	8.3	9	PU
KL100-055	55	65	62	6.3	8.3	9	PU
KL100-060	60	70	67	6.3	8.3	9	PU
KL100-060/1	60	68	66	4	6	7	PU
KL100-065	65	75	73	6.3	8.3	9	PU
KL100-070	70	80	77	6.3	8.3	9	PU
KL100-075	75	85	82	6.3	8.3	9	PU
KL100-080	80	90	87	6.3	8.3	9	PU
KL100-085	85	95	92	6.3	8.3	9	PU
KL100-090	90	100	97	6.3	8.3	9	PU

❓ Frequently Asked Questions

1. What is the primary function of the KL100 double lip wiper seal?

The KL100 is designed for pneumatic cylinders to provide superior wiping performance and prevent external contaminants from entering the system while maintaining an optimal oil film.

2. What are the temperature and speed limits for this seal?

It can withstand temperatures ranging from -40°C to +100°C and supports a maximum sliding speed of 1.0 M/s.

3. Can I request a custom color for the seal?

Yes, while our standard colors include Red, Blue, and Black, we offer customization to meet specific customer color requirements.

4. Does the design prevent hydrodynamic pressure build-up?

Yes, the KL100 features a specific notch design and seal geometry specifically engineered to relief hydrodynamic pressure within the system.

5. What is the standard lead time for bulk orders?

The typical delivery time is approximately 15 days, with a supply ability of up to 100,000 pieces per month.

6. Is the packaging suitable for international shipping?

Absolutely. We provide customizable packaging options to ensure the products are protected during transit and meet your logistics standards.
