The KL101 polyurethane wipers are specifically designed to prevent foreign particles from passing into hydraulic cylinders. Featuring an improved lip design, they provide a superior wiping effect on the rod. A second static lip on the external side face ensures the wiper remains tight in the housing and serves as an effective static seal.

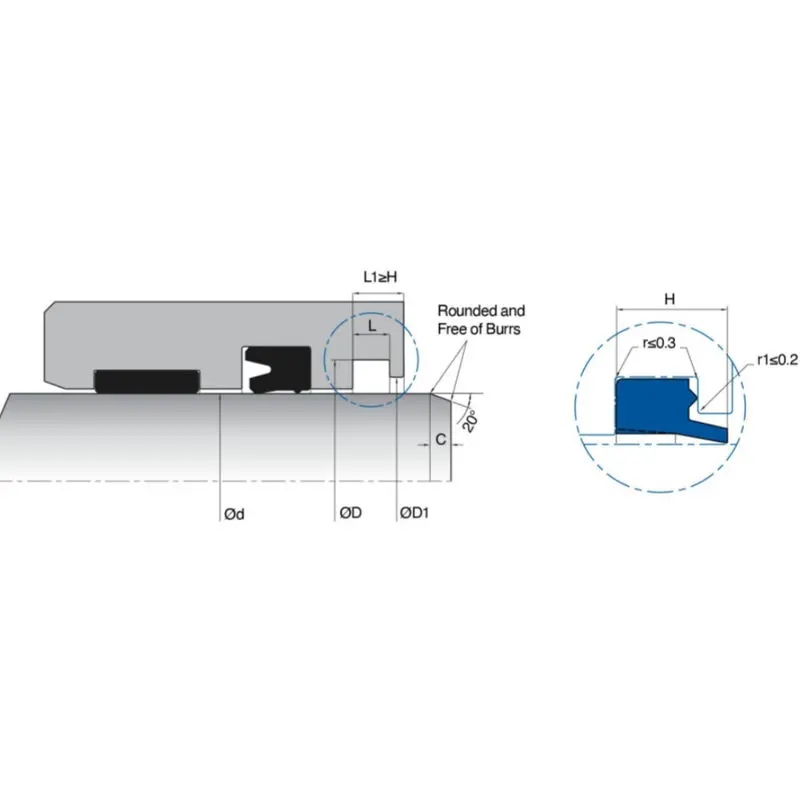

| Model No. | d (f8) | D (H10) | D1 (H11) | L (+0.2/-0) | H | Material |
|---|---|---|---|---|---|---|
| KL101-018 | 18 | 26.6 | 21 | 5.3 | 7 | PU |
| KL101-020 | 20 | 28.6 | 23 | 5.3 | 7 | PU |
| KL101-022 | 22 | 30.6 | 25 | 5.3 | 7 | PU |
| KL101-025 | 25 | 33.6 | 28 | 5.3 | 7 | PU |
| KL101-030 | 30 | 38.6 | 33.2 | 5.3 | 7 | PU |
| KL101-035 | 35 | 43.6 | 38 | 5.3 | 7 | PU |
| KL101-036 | 36 | 44.6 | 39 | 5.3 | 7 | PU |
| KL101-040 | 40 | 48.6 | 43 | 5.3 | 7 | PU |
| KL101-045 | 45 | 55.6 | 48.2 | 5.3 | 7 | PU |
| KL101-050 | 50 | 60.6 | 53.2 | 5.3 | 7 | PU |
| KL101-055 | 55 | 65.6 | 58.2 | 5.3 | 7 | PU |
| KL101-060 | 60 | 70.6 | 63 | 5.3 | 7 | PU |
| KL101-065 | 65 | 75.6 | 68.2 | 5.3 | 7 | PU |
| KL101-075 | 75 | 87.2 | 80.8 | 7.3 | 12 | PU |
| KL101-080 | 80 | 92.2 | 86 | 7.3 | 12 | PU |
| KL101-090 | 90 | 102.2 | 96 | 7.3 | 12 | PU |
| KL101-100 | 100 | 112.2 | 106 | 7.3 | 12 | PU |
