Kl109 High Pressure Chevron Seal

KELONG High Pressure Chevron Seal

PTFE Chevron Seals

Place of Origin:

CHINA

Brand Name:

KELONG

Model Number:

KL109

Send Inquiry

Product Description

Product Specifications
■ Product Name: Kl109 High Pressure Chevron Seal
■ Material: FABRIC NBR POM PTFE
■ Max Pressure: 400 Bar
■ Temperature: -30 / +80 °C
■ Sliding Speed: 2.0 M/s
■ Advantages: Adjustable Housing
Trade & Logistics
📦 MOQ: 100 pcs
🚚 Delivery Time: 15 Days
💳 Payment: L/C, T/T
📈 Supply Ability: 100,000 pcs / month
Product Overview

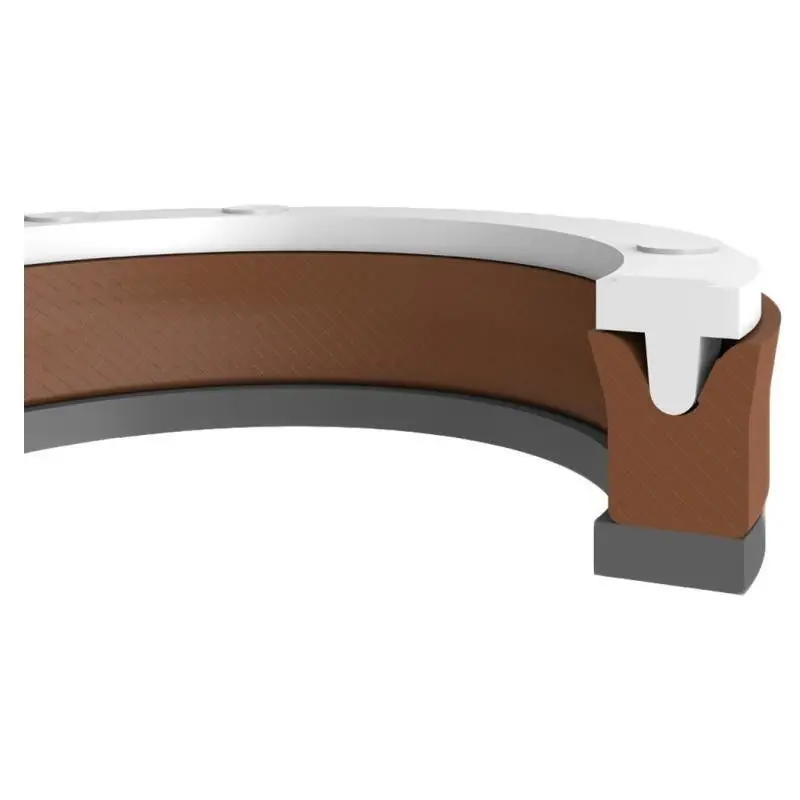

The K151/Kl109 high pressure sealing sets are high-performance three-piece rod sealing elements. These units consist of a water-resistant fabric elastomer chevron ring, a backup ring, and a head adapter specifically designed for pressure washers.

For SKU variations, K151 consists of a chevron ring and front adapter, while the K151B series includes an additional back-up ring for enhanced stability under extreme conditions.

Kl109 High Pressure Chevron Seal
Key Advantages
  • Optimized for High-Speed applications.
  • Superior Water Compatibility and low swelling characteristics.
  • Extended Service Life even in rigorous environments.
  • Features an Adjustable Housing design for versatile installation.
Application Area

• High-performance Pressure Washers and related industrial cleaning equipment.

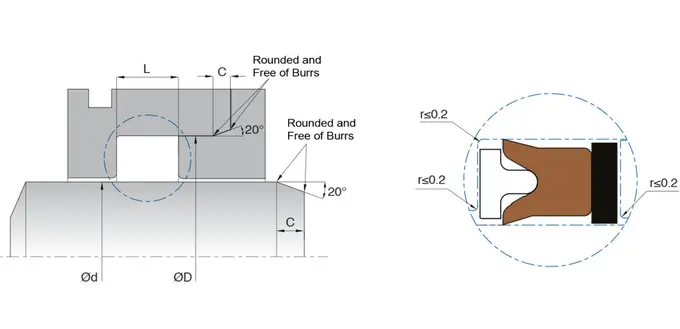

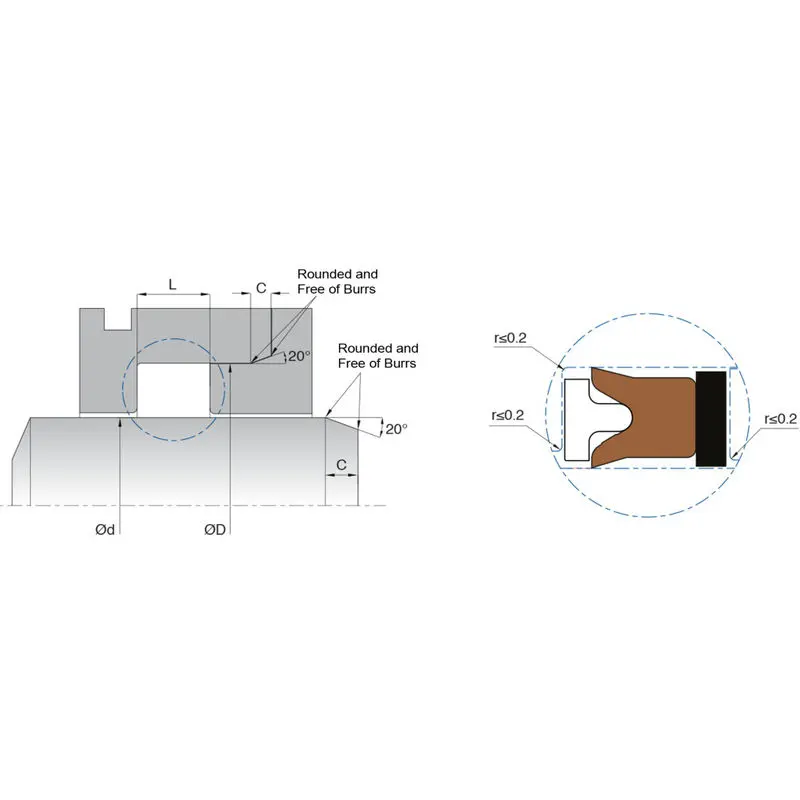

Technical Dimensions
Model No. d (f7) D (H9) L (+0.2/-0) C Material
KL109-014 B142496FABRIC NBR/POM/PTFE
KL109-015 B152496FABRIC NBR/POM/PTFE
KL109-016 B162696FABRIC NBR/POM/PTFE
KL109-018 B1828106FABRIC NBR/POM/PTFE
KL109-020 B2030106FABRIC NBR/POM/PTFE
KL109-022 B2232106FABRIC NBR/POM/PTFE
KL109-025 B2535106FABRIC NBR/POM/PTFE
KL109-01414247.256FABRIC NBR/POM/PTFE
KL109-01616267.256FABRIC NBR/POM/PTFE
KL109-020/120358.358FABRIC NBR/POM/PTFE
KL109-022/122.23286FABRIC NBR/POM/PTFE
KL109-02525357.856FABRIC NBR/POM/PTFE
Frequently Asked Questions
What are the primary materials used in the Kl109 Chevron Seal?
The seal is manufactured using a robust combination of FABRIC, NBR (Nitrile Rubber), POM (Polyoxymethylene), and PTFE (Polytetrafluoroethylene) for maximum durability and chemical resistance.
What is the maximum pressure rating for this sealing set?
The Kl109 High Pressure Chevron Seal is designed to withstand a maximum operating pressure of up to 400 Bar.
Is this seal compatible with high-temperature environments?
Yes, the seal is rated for temperatures ranging from -30°C to +80°C, making it ideal for various industrial pressure washing applications.
Can the packaging be customized for bulk orders?
Absolutely. We offer customizable packaging options to meet your specific branding or logistical requirements.
What is the standard lead time for a minimum order?
The typical delivery time is approximately 15 days after order confirmation, depending on the current production schedule and quantity.
Are these seals suitable for water-based applications?
Yes, they are specifically engineered for water compatibility and feature low swelling properties, which is essential for pressure washers.
