Product Specifications
| Material | X-TONE |
| Product Name | Backup Ring Sealing Elements |
| Max Pressure | 600 Bar |
| Temperature Range | -30/+120 °C |
| Sliding Speed (max) | 1.0 M/s |
| Area Of Application | Mining Industry |
| Min Order Quantity | 100 |
| Packaging Details | Customizable packaging |
| Delivery Time | 15 Days |
| Payment Terms | L/C, T/T |
| Supply Ability | 100,000 pcs / month |

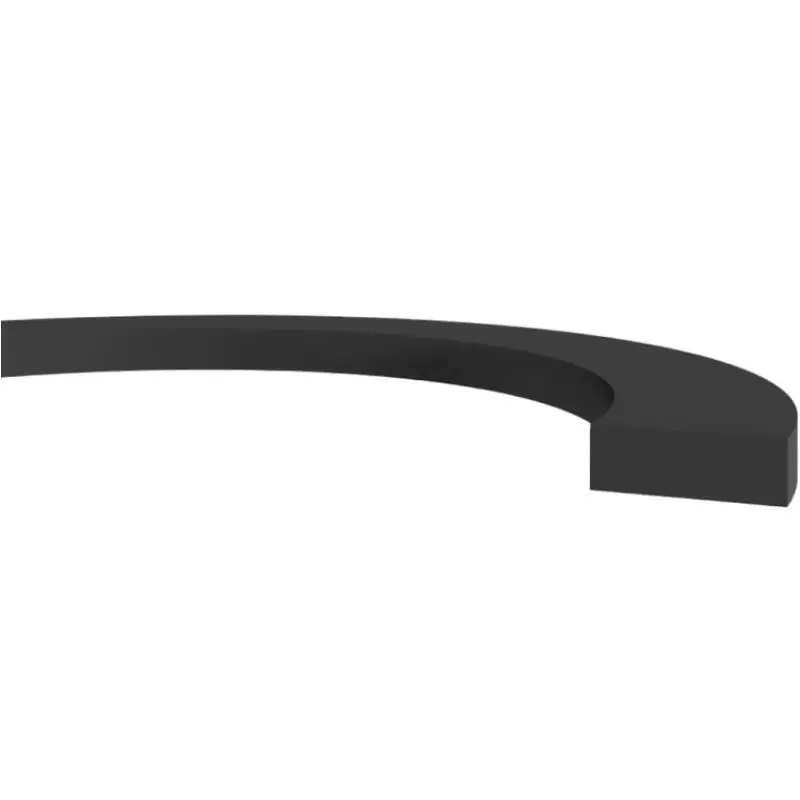

KL125 - High-Performance Back-Up Ring
KL125 back-up rings are produced from X-tone, a special grade thermoplastic material which can operate dynamically or statically in heavy duty applications. This material is specifically engineered for environments requiring high mechanical properties and exceptional temperature resistance.
Key Advantages
- High extrusion and pressure resistance
- High temperature resistance
- Hydrolysis resistance
- High wear resistance
- Low coefficient of friction
Common Areas of Application
- Construction machinery
- Loading platforms
- Injection moulding machines
- Cranes
- Heavy duty cylinders
- Mining industry
Frequently Asked Questions
What is the main material used in KL125 back-up rings?
The KL125 is manufactured from X-tone, a high-grade thermoplastic known for its superior mechanical properties and durability in heavy-duty environments.
What is the maximum pressure these rings can withstand?
These sealing elements are designed for high-pressure environments, with a maximum pressure resistance of up to 600 Bar.
Can KL125 rings be used in high-temperature applications?
Yes, they are specifically engineered for high temperature resistance, operating efficiently within a range of -30°C to +120°C.
Are these rings suitable for dynamic sealing?
Absolutely. KL125 back-up rings are versatile components that can be used for both dynamic and static applications in heavy-duty hydraulic systems.
In which industries are these backup rings typically used?
They are widely used in the mining industry, construction machinery, cranes, injection moulding machines, and heavy-duty cylinders due to their high wear and extrusion resistance.
What is the supply capacity for this product?
We maintain a high supply ability of up to 100,000 pieces per month to meet large-scale industrial demands.
