KL127 - ROD SEAL: High Wear Resistance, Low Friction, and Stick-Slip Free
K702 is a double-acting rotary sealing element consisting of a PTFE ring and an energizer elastomer o-ring. It provides high performance with its superior properties in rod-type pressurized rotary sealing applications.

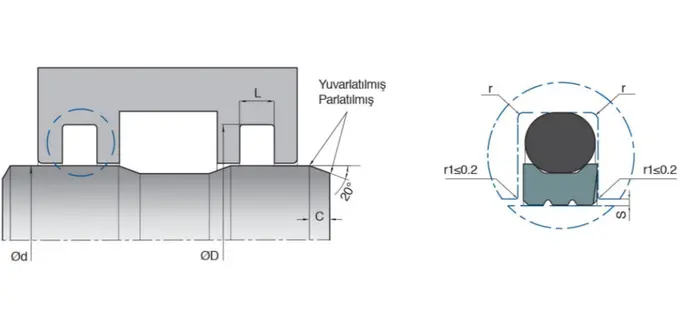

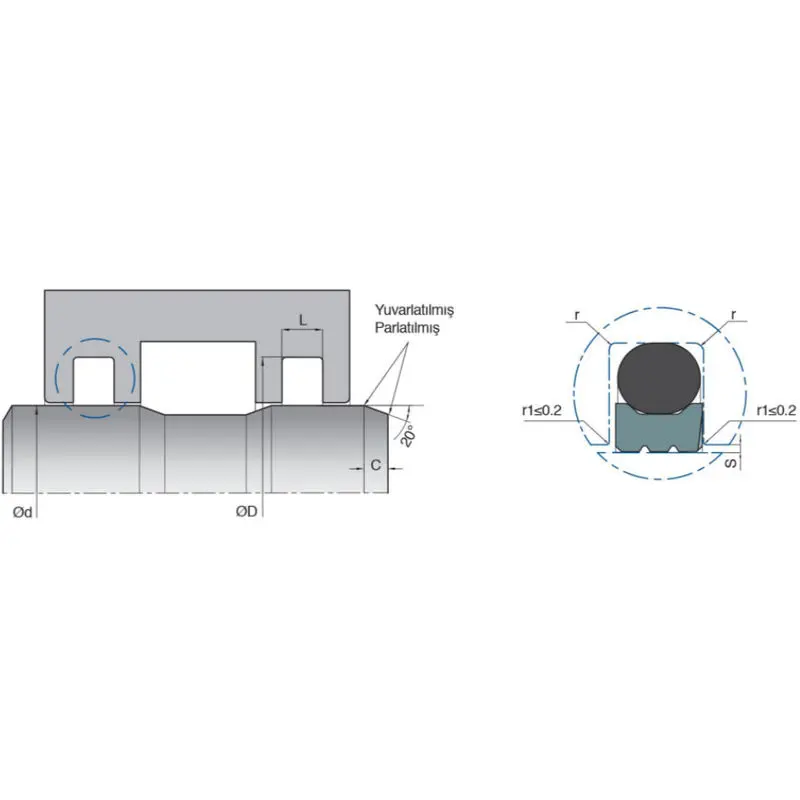

| Model | d (f8) | D (H9) | L (+0.2/-0) | r | C | O-Ring | MATERIAL |
|---|---|---|---|---|---|---|---|
| KL127-010 | 10 | 14.9 | 2.2 | 0.4 | 3 | 11.11x1.78 | PTFE / NBR |
| KL127-012 | 12 | 16.9 | 2.2 | 0.4 | 3 | 12.42x1.78 | PTFE / NBR |
| KL127-015 | 15 | 19.9 | 2.2 | 0.4 | 3 | 17.17x1.78 | PTFE / NBR |
| KL127-016/1 | 16 | 20.9 | 2.2 | 0.4 | 3 | 17.17x1.78 | PTFE / NBR |
| KL127-020 | 20 | 27.5 | 3.2 | 0.6 | 4.5 | 23.47x2.62 | PTFE / NBR |
| KL127-024 | 24 | 31.5 | 3.2 | 0.6 | 4.5 | 26.64x2.62 | PTFE / NBR |
| KL127-025 | 25 | 32.5 | 3.2 | 0.6 | 4.5 | 28.25x2.62 | PTFE / NBR |
| KL127-030 | 30 | 37.5 | 3.2 | 0.6 | 4.5 | 33.00x2.62 | PTFE / NBR |
| KL127-040 | 40 | 51 | 4.2 | 0.8 | 5.5 | 44.45x3.53 | PTFE / NBR |
| KL127-050 | 50 | 61 | 4.2 | 0.8 | 5.5 | 53.57x3.53 | PTFE / NBR |
| KL127-060 | 60 | 71 | 4.2 | 0.8 | 5.5 | 63.50x3.53 | PTFE / NBR |
| KL127-080 | 80 | 91 | 4.2 | 0.8 | 5.5 | 82.14x3.53 | PTFE / NBR |
| KL127-100 | 100 | 111 | 4.2 | 0.8 | 5.5 | 104.37x3.53 | PTFE / NBR |
| KL127-120 | 120 | 131 | 4.2 | 0.8 | 5.5 | 123.40x3.53 | PTFE / NBR |
| KL127-130 | 130 | 141 | 4.2 | 0.8 | 5.5 | 132.94x3.53 | PTFE / NBR |
