KL14 Hydraulic Rod Seals

Kelong Hydraulic Rod Seals

Hydraulic Elastomer Seals

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL14

Send Inquiry

Product Description

Technical Specifications
Style: Hydraulic Rod Seals
Temperature (max) °C: -35 / +105
Pressure (max) Bar: 150
Material: NBR
Sliding Speed (max) M/s: 0.5
Application: Industrial Cylinders
Trade Information
Packaging: Opp bag
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 100,000 pcs / month
Product Features

The KL14 Rod Seal is an elastomer sealing solution featuring a specialized inner lip design, engineered for high-performance hydraulic applications.

Superior static sealing performance Easy installation Up to 250 bars with back-up ring

Primary Areas of Application:

Construction machinery Forklifts Standard industrial cylinders

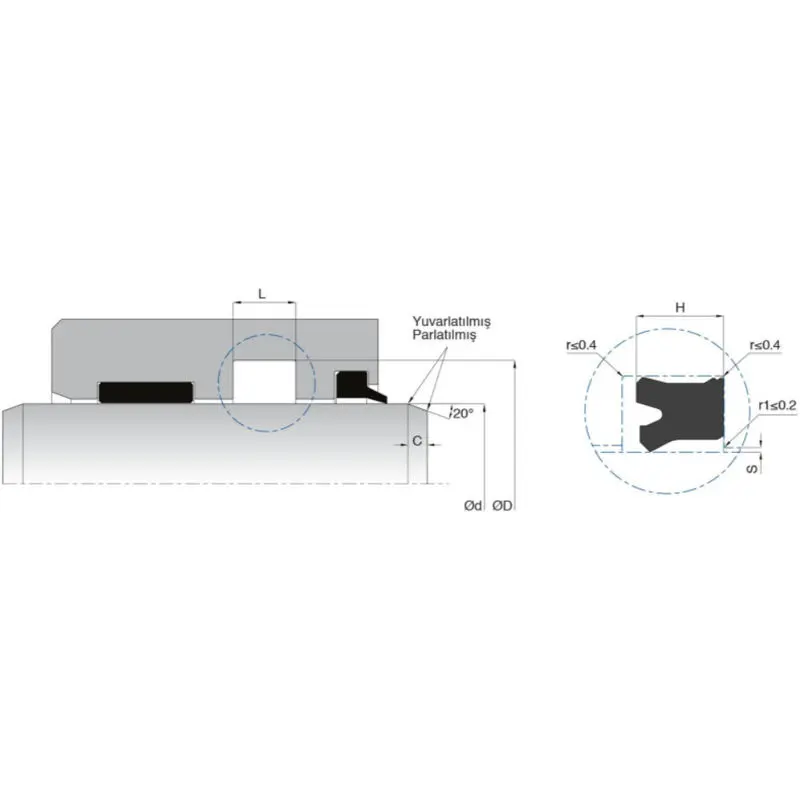

KL14 Hydraulic Rod Seals Technical Diagram
Dimensional Data
Model d (f8) D (H11) L (+0.2/-0) H C Material
KL14-0404050874.5NBR
KL14-0454555874.5NBR
KL14-050506311105NBR
KL14-050/15063875NBR
KL14-055556811105NBR
KL14-065657811105NBR
KL14-070708311105NBR
KL14-075758811105NBR
KL14-080809311105NBR
KL14-0858510011105.5NBR
KL14-0909010511105.5NBR
KL14-0959511011.510.55.5NBR
KL14-10010011511105.5NBR
KL14-11011013011106NBR
KL14-110/11101251096NBR
KL14-12012014011106NBR
KL14-120/11201408.57.56NBR
KL14-14014016013126NBR
KL14-140/114016011106NBR
KL14-18018020013126NBR
Frequently Asked Questions
What is the pressure limit for the KL14 Rod Seal?
The standard maximum pressure is 150 Bar. However, with the addition of a back-up ring, it can handle pressures up to 250 Bar.
Which temperature range is this seal suitable for?
The KL14 seal is designed to operate efficiently within a temperature range of -35°C to +105°C.
What material is used for the KL14 series?
These seals are manufactured using high-quality NBR (Nitrile Butadiene Rubber), providing excellent elastomer properties.
Can these seals be used in forklifts?
Yes, KL14 rod seals are commonly used in forklifts, construction machinery, and standard industrial hydraulic cylinders.
How long is the typical delivery period?
The standard delivery time is between 7 to 15 working days depending on the order quantity and specific requirements.
Is installation difficult for these seals?
No, one of the primary advantages of the KL14 design is that it allows for easy and straightforward installation in standard grooves.
