Product Specifications
⚙
Style
PTFE Rod Seals Hydraulic
🌡
Temperature (max) °C
-30 / +105
⚡
Sliding Speed (max) M/s
15.0
🏗
Application
Large Diameter Cylinders
KL17 single acting rod seal consists of PTFE sealing ring and a profile ring as an energizer. Specially designed for heavy duty applications, KL17 rod seal offers high extrusion resistance and superior sealing performance.
Key Advantages
- • Suitable for heavy duty cylinders with large diameters
- • Long Service Life
- • High extrusion resistance
- • Low friction and stick-slip free
- • Available up to 1500 mm
Area of Application
- • Iron and steel industry
- • Injection moulding machines
- • Rolling mills
- • Hydraulic press cylinders
- • Marine hydraulics
Payment & Shipping Terms
🚚
Delivery Time
7-15 work days
💳
Payment Terms
L/C, T/T, Paypal
📈
Supply Ability
100,000 pcs / month

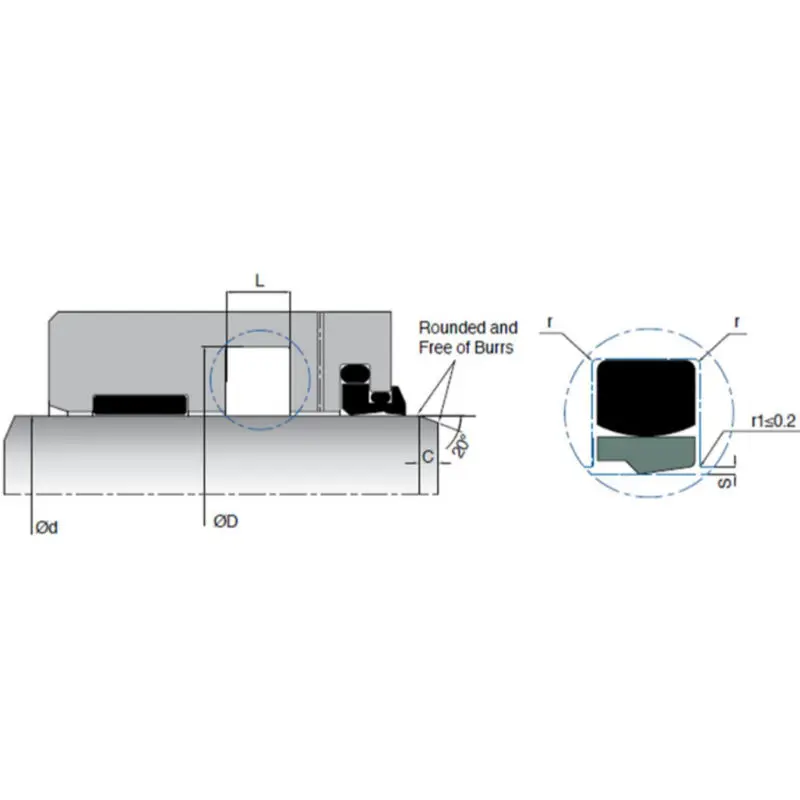

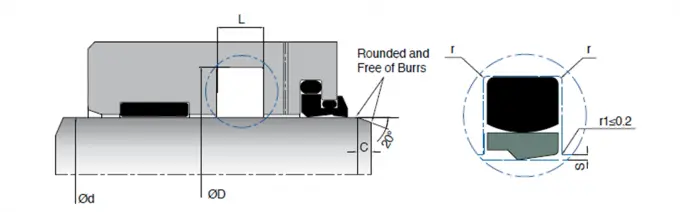

Technical Parameters
| Model |
d (f8) |
D (H8) |
L (+0.2/-0) |
r |
C |
Material |
| KL17-140 | 140 | 160 | 10 | 0.4 | 7.5 | PTFE |
| KL17-155 | 155 | 175 | 10 | 0.4 | 7.5 | PTFE |
| KL17-200 | 200 | 220 | 10 | 0.4 | 7.5 | PTFE |
| KL17-240 | 240 | 265 | 12.5 | 0.4 | 10 | PTFE |
| KL17-280 | 280 | 305 | 12.5 | 0.4 | 10 | PTFE |
| KL17-290 | 290 | 315 | 12.5 | 0.4 | 10 | PTFE |
| KL17-300 | 300 | 325 | 12.5 | 0.4 | 10 | PTFE |
| KL17-310 | 310 | 340 | 15 | 0.8 | 12 | PTFE |
| KL17-320 | 320 | 350 | 15 | 0.8 | 12 | PTFE |
| KL17-330 | 330 | 360 | 15 | 0.8 | 12 | PTFE |
| KL17-340 | 340 | 370 | 15 | 0.8 | 12 | PTFE |
| KL17-380 | 380 | 410 | 15 | 0.8 | 12 | PTFE |
| KL17-415 | 415 | 445 | 15 | 0.8 | 12 | PTFE |
| KL17-475 | 475 | 505 | 15 | 0.8 | 12 | PTFE |
| KL17-560 | 560 | 584 | 17.5 | 1.2 | 12 | PTFE |
| KL17-570 | 570 | 605 | 17.5 | 1.2 | 12 | PTFE |
Product FAQ
What materials are used in the KL17 rod seal?
The KL17 rod seal is constructed using a high-performance PTFE sealing ring combined with an NBR profile ring as an energizer.
What is the maximum pressure rating for this hydraulic seal?
The KL17 seal is designed for heavy-duty applications and can withstand a maximum pressure of up to 400 Bar.
In what temperature range can this seal operate?
The standard operating temperature range for these PTFE rod seals is between -30°C and +105°C.
What is the maximum sliding speed supported by the KL17 seal?
This seal is capable of handling high-speed operations with a maximum sliding speed of 15.0 meters per second.
What are the primary applications for the KL17 rod seal?
It is ideal for large diameter cylinders, rolling mills, iron and steel industry machinery, injection moulding machines, and marine hydraulics.
How long does it typically take for delivery?
Standard delivery time for orders is between 7 to 15 working days, depending on order volume and requirements.
