Discount KL24 Single Acting Piston Rod Seals Hydraulic Symmetrical Design Exporters, Product

KL24 Piston Rod Seals

Single Acting Piston Rod Seals

Single Acting Rod Seals Hydraulic

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL24

Send Inquiry

Product Description

⚙️Product Specifications

Style:

Single Acting Piston Rod Seals

Material:

NBR / PU

Pressure (max):

400 Bar

Temperature:

-30 / +100 °C

Sliding Speed:

0.5 M/s

Application:

Mobile Machinery / Mining Industry

📦Payment & Shipping Terms

Packaging:

Opp bag

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs / month

KL24 piston-rod seal is a single acting sealing element which is able to work both at piston and rod applications thanks to symmetrical design.

Advantages

Superior static and dynamic sealing performance
Low leakage under variable pressure levels
High and sustainable preload due to x-ring
High abrasion resistance

Area of Application

Mining industry
Iron and steel industry
Scrap metal presses
Mobile machinery
Marine hydraulics

KL24 Single Acting Piston Rod Seals Hydraulic Symmetrical Design

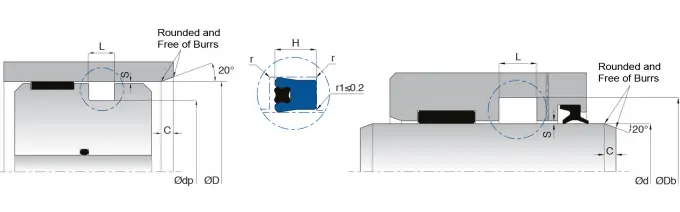

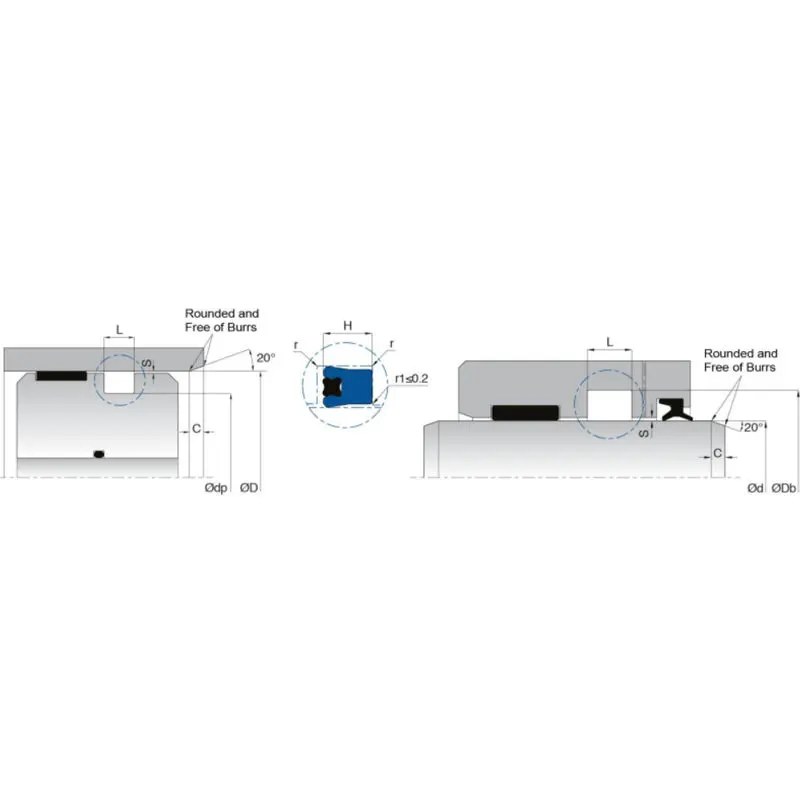

📊Technical Dimensions

Model No.	d(f8) dp(h9)	Db(H10) D(H10)	L (+0.2/-0)	H	r	C	MATERIAL
KL24-030	30	40	7	6	0.2	5.5	PU
KL24-035	35	45	7	6	0.2	5.5	PU
KL24-040	40	50	7	6	0.2	5.5	PU
KL24-045	45	60	11	10	0.4	6	PU
KL24-045/1	45	55	7	6	0.2	5.5	PU
KL24-050	50	60	7	6	0.2	5.5	PU
KL24-050/1	50	60	11	10	0.2	5.5	PU
KL24-053	53	63	7	6	0.2	5.5	PU
KL24-055	55	65	7	6	0.2	5.5	PU
KL24-060	60	70	7	6	0.2	5.5	PU
KL24-065	65	75	7	6	0.2	5.5	PU
KL24-070	70	80	7	6	0.2	5.5	PU
KL24-075	75	85	7	6	0.2	5.5	PU
KL24-080	80	90	7	6	0.2	5.5	PU
KL24-085	85	100	9	7	0.4	6	PU
KL24-165	165	180	9	7	0.4	6	PU

Frequently Asked Questions

What makes the KL24 seal design unique?

The KL24 features a symmetrical design that allows it to function effectively in both piston and rod applications as a single-acting sealing element.

What are the primary materials used for these seals?

KL24 seals are typically manufactured using high-quality NBR (Nitrile Butadiene Rubber) or PU (Polyurethane) to ensure durability and abrasion resistance.

What is the maximum operational pressure for the KL24 seal?

These seals are designed to handle high-pressure environments, with a maximum pressure rating of up to 400 Bar.

Can these seals withstand extreme temperatures?

Yes, the KL24 seals are rated for a temperature range of -30°C to +100°C, making them suitable for various industrial climates.

In which industries are these rod seals most commonly used?

They are widely used in the mining industry, iron and steel industry, mobile machinery, scrap metal presses, and marine hydraulics.

What is the typical lead time for an order?

The standard delivery time is between 7 to 15 working days, depending on the order size and specific requirements.
