KL27 Double Acting Piston Seal consists of a polyurethane special formed sealing ring and an elastomer O-ring energizer ring. Preferred in light to medium duty applications, KL27 is an economic piston seal solution.

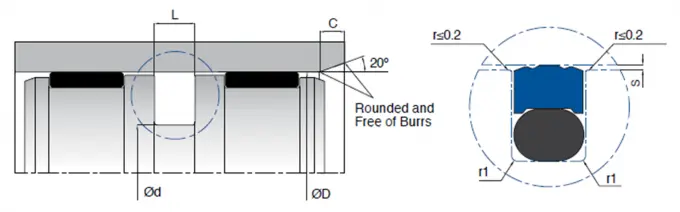

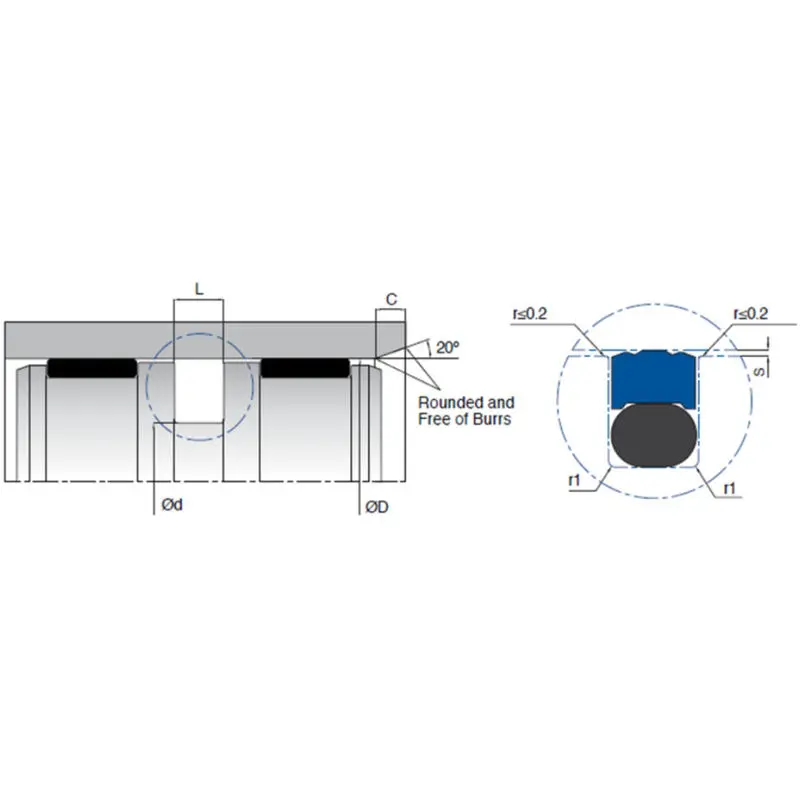

| Model | D (H9) | d (h9) | L (+0.2/-0) | r1 | C | O-Ring | Material |
|---|---|---|---|---|---|---|---|
| KL27 015-007.5 | 15 | 7.5 | 3.2 | 0.6 | 3 | 7.60x2.62 | PU |
| KL27 016-008.5 | 16 | 8.5 | 3.2 | 0.6 | 3 | 7.60x2.62 | PU |
| KL27 020-012.5 | 20 | 12.5 | 3.2 | 0.6 | 3 | 11.91x2.62 | PU |
| KL27 022-014.5 | 22 | 14.5 | 3.2 | 0.6 | 3 | 13.95x2.62 | PU |
| KL27 025-014 | 25 | 14 | 4.2 | 1 | 4.5 | 13.87x3.53 | PU |
| KL27 025-017.5 | 25 | 17.5 | 3.2 | 0.6 | 3 | 17.13x2.62 | PU |
| KL27 030-022.5 | 30 | 22.5 | 3.2 | 0.6 | 3 | 21.89x2.62 | PU |
| KL27 032-021 | 32 | 21 | 4.2 | 1 | 4.5 | 20.22x3.53 | PU |
| KL27 032-024.5 | 32 | 24.5 | 3.2 | 0.6 | 3 | 23.81x2.62 | PU |
| KL27 040-024.5 | 40 | 24.5 | 6.3 | 1.3 | 6 | 23.17x5.33 | PU |
| KL27 050-034.5 | 50 | 34.5 | 6.3 | 1.3 | 6 | 32.69x5.33 | PU |
| KL27 063-047.5 | 63 | 47.5 | 6.3 | 1.3 | 6 | 47x5.33 | PU |
| KL27 080-059 | 80 | 59 | 8.1 | 1.8 | 8 | 58x6.99 | PU |
| KL27 100-084.5 | 100 | 84.5 | 6.3 | 1.3 | 6 | 81.92x5.33 | PU |
| KL27 150-129 | 150 | 129 | 8.1 | 1.8 | 8 | 126.37x6.99 | PU |
| KL27 250-229 | 250 | 229 | 8.1 | 1.8 | 8 | 227.97x6.99 | PU |
