KL35 Single Acting Piston Seal

Single Acting Piston Seal Ring

Energizer Elastomer O Ring

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL35

Send Inquiry

Product Description

Product Specifications

Style:Single Acting Piston Seal

Material:NBR / TPE / POM

Pressure (max):400 Bar

Temperature (max):-30/+105 °C

Sliding Speed (max):15.0 M/s

Application:Long Stroke Cylinders

Payment & Shipping Terms

Packaging:Opp bags

Delivery Time:7-15 work days

Payment Terms:L/C, T/T, Paypal

Supply Ability:100,000 pcs / month

KL35 single acting piston seal consists of a PTFE sealing ring and an energizer elastomer O-ring, designed for high-performance hydraulic systems.

Advantages

Low friction and stick-slip free

Excellent dynamic and static sealing

Long service life

High extrusion resistance

No hydrodynamic pressure

High speeds and frequencies

Designed for grooves according to ISO 7425/1

Area of Application

Cranes

Injection moulding machines

Hydraulic press cylinders

Forklifts

Construction machinery

Servo cylinders

Hydraulic breakers

Wind turbine

Automotive industry

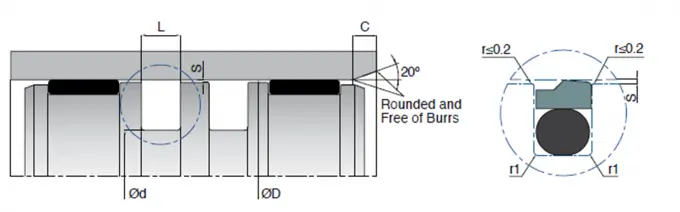

KL35 Single Acting Piston Seal Energizer Elastomer O Ring

Technical Data Sheet

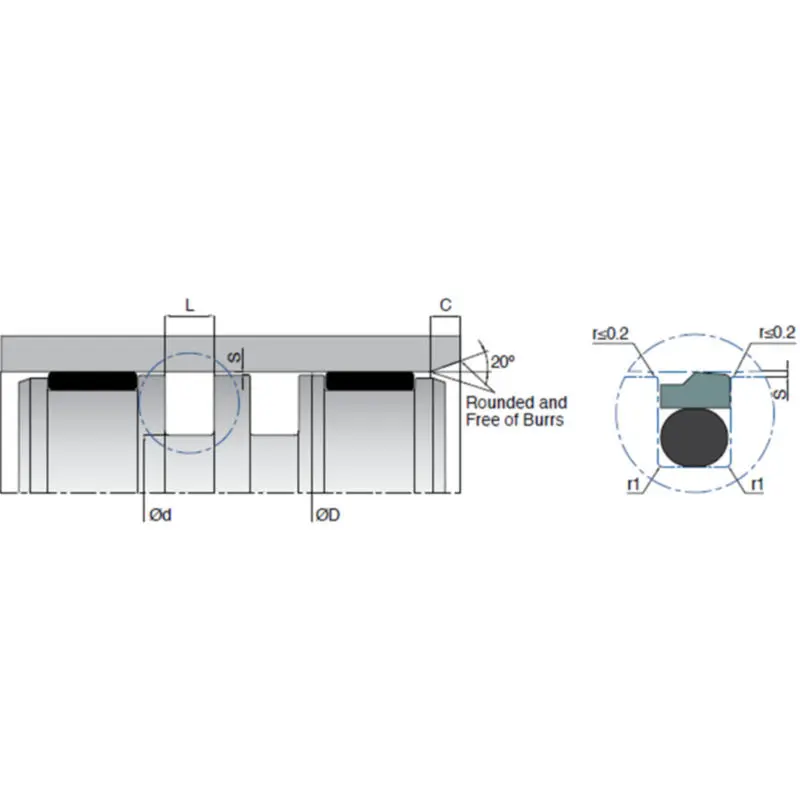

Model No.	D (H8)	d (h9)	L (+0.2/-0)	r1	C	O-Ring	Material
KL35-009	9	4.1	2.2	0.4	3	3.68x1.78	PTFE
KL35-012	12	7.1	2.2	0.4	3	6.75x1.78	PTFE
KL35-016	16	11.1	2.2	0.4	3	10.82x1.78	PTFE
KL35-018	18	10.7	3.2	0.6	4.5	9.92x2.62	PTFE
KL35-022	22	14.7	3.2	0.6	4.5	13.95x2.62	PTFE
KL35-025	25	17.7	3.2	0.6	4.5	17.13x2.62	PTFE
KL35-028	28	17.3	4.2	1	6	15.47x3.53	PTFE
KL35-030	30	19.3	4.2	1	6	18.64x3.53	PTFE
KL35-032	32	21.3	4.2	1	6	20.22x3.53	PTFE
KL35-040	40	29.3	4.2	1	6	28.17x3.53	PTFE
KL35-050	50	39.3	4.2	1	6	37.69x3.53	PTFE
KL35-060	60	44.9	6.3	1.3	9	43.82x5.33	PTFE
KL35-080	80	64.9	6.3	1.3	9	62.87x5.33	PTFE
KL35-100	100	84.9	6.3	1.3	9	81.92x5.33	PTFE
KL35-150	150	134.9	6.3	1.3	9	133.35x5.33	PTFE
KL35-200	200	179.5	8.1	1.8	12	177.17x6.99	PTFE

Frequently Asked Questions

What is the composition of the KL35 piston seal?

The KL35 single acting piston seal is a high-performance seal consisting of a PTFE sealing ring and an energizer elastomer O-ring to ensure optimal sealing tension.

What is the maximum pressure rating for this seal?

This seal can handle a maximum operating pressure of up to 400 Bar, making it suitable for heavy-duty hydraulic applications.

What are the main application areas?

It is widely used in cranes, injection moulding machines, hydraulic press cylinders, forklifts, construction machinery, and wind turbines.

Is the KL35 seal resistant to high-speed movement?

Yes, it is designed for high speeds and frequencies, with a maximum sliding speed of up to 15.0 M/s.

What is the typical delivery time for orders?

The standard delivery time is 7-15 working days, depending on the order size and specific requirements.

What temperature range can the KL35 handle?

The seal is designed to operate effectively in a temperature range from -30°C to +105°C.
