KL42 Hydraulic Piston Seals

Hydraulic Piston Seals 3 Piece

Compact Elastomeric Sealing Ring

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL42

Send Inquiry

Product Description

Product Specifications
Style:Hydraulic Piston Seals 3 Piece
Material:NBR / FABRIC NBR / POM
Pressure (max) Bar:500
Temperature (max) °C:-30/+100
Sliding Speed (max)- M/s:0.5
Application:Iron And Steel Industry
Payment & Shipping Terms
Packaging:Opp bags
Delivery Time:7-15 work days
Payment Terms:L/C, T/T, Paypal
Supply Ability:100,000 pcs / month
KL42 is a 3-piece compact piston seal which consists of a fabric impregnated elastomer sealing ring and 2 POM guide rings. The sealing ring has superior abrasion resistance and low leakage performance in rough surfaces.
Key Advantages
Superior abrasion resistance
Suitable for water-based fluids
Low dynamic and static leakage
Long service life
Main Application Areas
Mining industry
Iron and steel industry
Marine hydraulics
KL42 Hydraulic Piston Seals

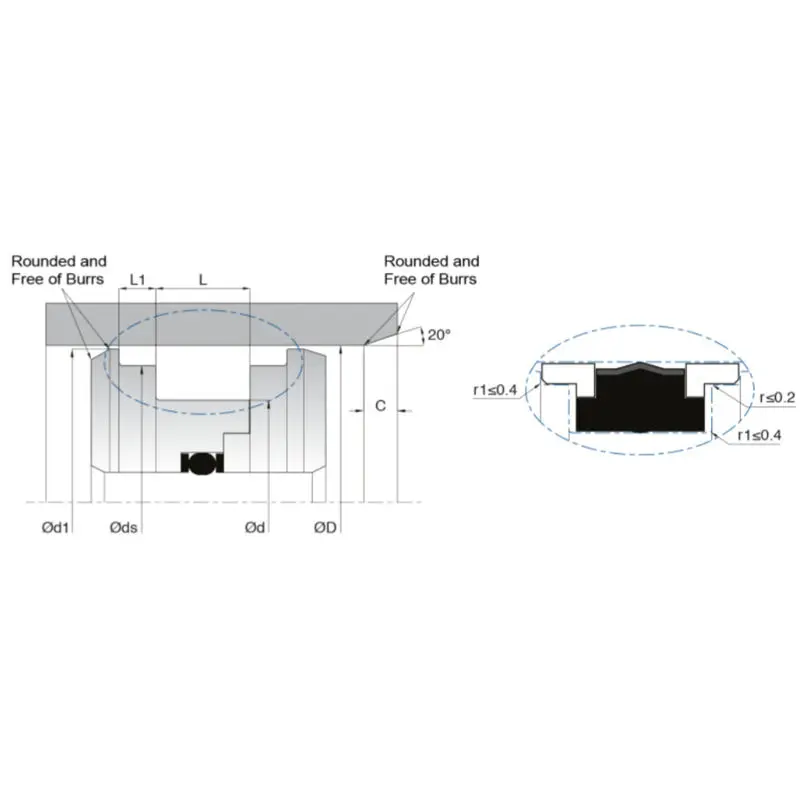

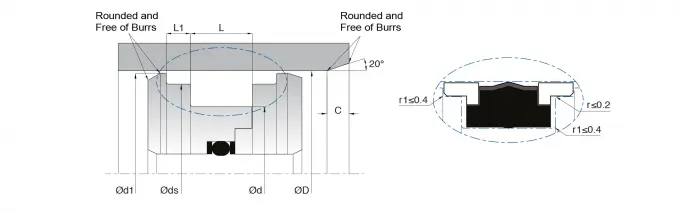

Technical Data Dimensions
Model D (H8) d (h9) L (+0.2/-0) ds (h8) d1 (±0.1) L1 (+0.2/-0) C Material
KL42-050-034503418.445.48493.15FABRIC NBR
KL42-060-044604418.455.48593.15FABRIC NBR
KL42-070-050705022.464.2868.346.356FABRIC NBR
KL42-080-060806022.474.2878.36.356FABRIC NBR
KL42-090-070907022.484.2288.36.356FABRIC NBR
KL42-100-0801008025.494.22986.356FABRIC NBR
KL42-125-10012510025.4118.181236.356FABRIC NBR
KL42-140-11514011525.4133.08137.56.356FABRIC NBR
KL42-150-12515012525.4143.08147.59.56FABRIC NBR
Frequently Asked Questions
Q1: What are the main materials used in the KL42 piston seal?
A: The KL42 is a 3-piece compact seal consisting of a fabric-impregnated NBR elastomer sealing ring and two POM (polyoxymethylene) guide rings.
Q2: What is the maximum pressure capacity for this seal?
A: The KL42 hydraulic piston seal is designed to handle high-pressure environments up to a maximum of 500 Bar.
Q3: Can these seals be used with water-based fluids?
A: Yes, one of the primary advantages of the KL42 seal is its suitability for water-based fluids, making it versatile for various industrial applications.
Q4: What is the operating temperature range for the KL42?
A: These seals are engineered to perform reliably within a temperature range of -30°C to +100°C.
Q5: Which industries commonly use KL42 compact seals?
A: They are widely applied in the mining industry, iron and steel industry, and marine hydraulics due to their superior abrasion resistance.
Q6: What is the typical delivery time for an order?
A: The standard delivery time is between 7 to 15 working days, depending on the order volume and specifications.
