KL50 double acting piston seal consists of one PTFE profile ring, one elastomer X-ring and two O-ring energizers.
The KL50 is a superior sealing solution that differentiates itself with a double O-ring design, significantly increasing sealing performance by optimizing preload. It is an ideal choice for systems containing two different media separated by the piston, such as fluid and gas.

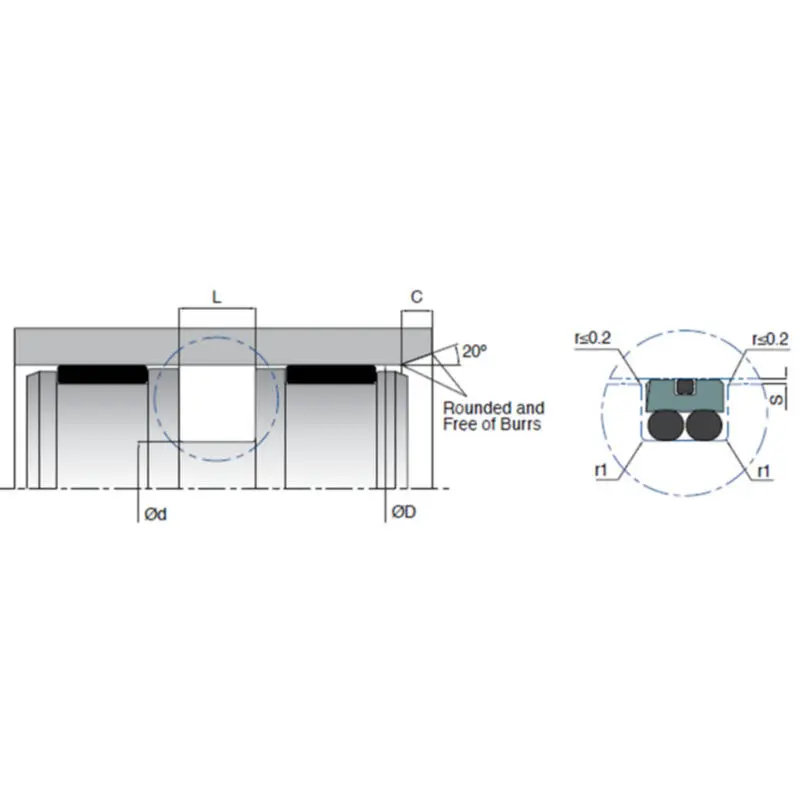

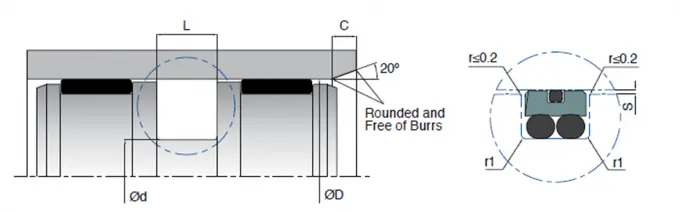

| Model | D (H9) | d (h9) | L (+0.2/-0) | r1 | C | O-Ring | X-Ring | Material |
|---|---|---|---|---|---|---|---|---|
| KL50-040 | 40 | 30 | 6.3 | 0.6 | 3 | 28.25x2.62 | 34.65x1.78 | PTFE |
| KL50-045 | 45 | 35 | 6.3 | 0.6 | 3 | 34.59x2.62 | 41.00x1.78 | PTFE |
| KL50-050 | 50 | 40 | 6.3 | 0.6 | 3 | 39.34x2.62 | 44.17x1.78 | PTFE |
| KL50-055 | 55 | 45 | 6.3 | 0.6 | 3 | 44.12x2.62 | 50.52x1.78 | PTFE |
| KL50-060 | 60 | 50 | 6.3 | 0.6 | 3 | 48.90x2.62 | 56.87x1.78 | PTFE |
| KL50-063 | 63 | 53 | 6.3 | 0.6 | 3 | 52.07x2.62 | 56.87x1.78 | PTFE |
| KL50-070 | 70 | 60 | 6.3 | 0.6 | 3 | 58.42x2.62 | 63.22x1.78 | PTFE |
| KL50-080 | 80 | 67 | 8.3 | 1 | 6 | 63.09x3.53 | 72.69x2.62 | PTFE |
| KL50-090 | 90 | 77 | 8.3 | 1 | 6 | 75.80x3.53 | 82.22x2.62 | PTFE |
| KL50-100 | 100 | 87 | 8.3 | 1 | 6 | 85.32x3.53 | 94.92x2.62 | PTFE |
| KL50-125 | 125 | 112 | 8.3 | 1 | 6 | 110.72x3.53 | 120.32x2.62 | PTFE |
| KL50-150 | 150 | 132 | 12.3 | 1.3 | 8 | 130.20x5.33 | 145.65x3.53 | PTFE |
| KL50-200 | 200 | 182 | 12.3 | 1.3 | 8 | 177.17x5.33 | 189.87x3.53 | PTFE |
| KL50-300 | 300 | 282 | 12.3 | 1.3 | 8 | 278.77x5.33 | 278.99x3.53 | PTFE |
| KL50-450 | 450 | 432 | 12.3 | 1.3 | 8 | 425.00x5.33 | 430.66x3.53 | PTFE |
