KL54 POM Guide Ring

Hydraulic POM Guide Ring

Place of Origin:

China

Brand Name:

Cologne

Certification:

ISO9001 / IRIS

Model Number:

KL54

Send Inquiry

Product Description

Product Overview

KL54 is a POM guide ring specifically designed for light duty hydraulic applications. It provides a reliable and cost-effective solution for guiding pistons and rods in hydraulic cylinders.

⚙

Style:Hydraulic Guiding Elements

🛠

Material:POM

🌡

Temperature Range:-40/+100 °C

⚡

Max Sliding Speed:1.0 M/s

Main Advantages

Low coefficient of friction for smooth operation
Simple and easy installation process
Available in a wide range of standard dimensions
Highly economical sealing and guiding solution

Area of Application

Agricultural machinery components
Mobile cranes and lifting equipment
Light and medium duty hydraulic cylinders
Standard industrial cylinder systems

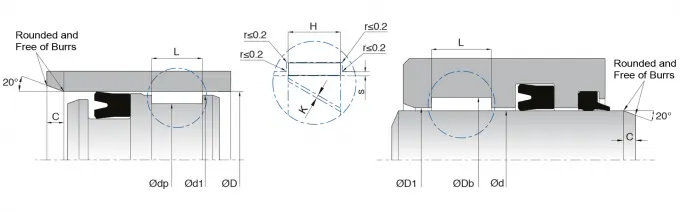

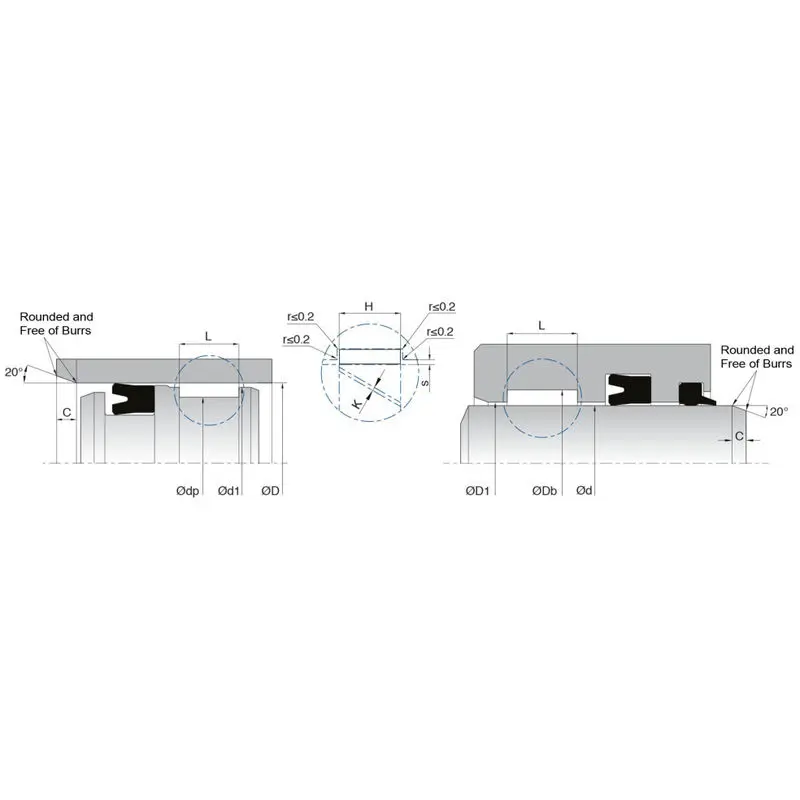

Technical Specifications

Model No.	d(f8) dp(h8)	Db(H8) D(H9)	L (+0.2/-0)	H	d1 (h9)	D1 (H9)	Material
KL54-022	22	26	10.4	10	25.6	22.4	POM
KL54-022/1	22	26	5.4	5	25.6	22.4	POM
KL54-025	25	29	6.4	6	28.6	25.4	POM
KL54-025/1	25	29	10.4	10	28.6	25.4	POM
KL54-025/2	25	30	5.7	5.3	29.5	25.5	POM
KL54-028	28	32	6.4	6	31.6	28.4	POM
KL54-028/1	28	32	10.4	10	31.6	28.4	POM
KL54-030	30	35	15.4	15	34.5	30.5	POM
KL54-030/1	30	35	5.7	5.3	34.5	30.5	POM
KL54-030/2	30	36	9.9	9.5	35.4	30.6	POM
KL54-035	35	40	15.4	15	39.5	35.5	POM
KL54-036	36	40	6.4	6	39.6	36.4	POM
KL54-036/1	36	40	15.4	15	39.6	36.4	POM
KL54-036/2	36	40	10.4	10	39.6	36.4	POM
KL54-040	40	45	15.4	15	44.5	40.5	POM
KL54-040/1	40	45	8.4	8	44.5	40.5	POM
KL54-040/2	40	45	20.4	20	44.5	40.5	POM
KL54-045	45	50	15.4	15	49.5	45.5	POM
KL54-045/1	45	51	8.4	8	50.4	45.6	POM
KL54-045/2	45	51	20.4	20	50.4	45.6	POM
KL54-046	46	50	10.4	10	49.6	46.4	POM
KL54-050/1	50	56	8.4	8	55.4	50.6	POM
KL54-050/2	50	56	20.4	20	55.4	50.6	POM
KL54-050/3	50	56	12.9	12.5	55.4	50.6	POM
KL54-055/1	55	61	8.4	8	60.4	55.6	POM
KL54-055/2	55	61	20.4	20	60.4	55.6	POM
KL54-056	56	62	8.4	8	61.4	56.6	POM
KL54-056/1	56	62	20.4	20	61.4	56.6	POM
KL54-060	60	65	15.4	15	64.5	60.5	POM
KL54-060/1	60	66	8.4	8	65.4	60.6	POM
KL54-060/2	60	66	20.4	20	65.4	60.6	POM
KL54-065	65	70	15.4	15	69.5	65.5	POM
KL54-080	80	85	15.4	15	84.5	80.5	POM

Shipping & Payment Terms

📦

Packaging:Opp bags

🕒

Delivery Time:7-15 work days

💳

Payment:L/C, T/T, Paypal

📈

Supply Ability:100,000 pcs / month

Frequently Asked Questions

What is the main material used in the KL54 guide ring?

The KL54 guide ring is manufactured using high-quality POM (Polyoxymethylene), known for its excellent dimensional stability and strength.

What is the maximum operating temperature for this guide ring?

The KL54 can operate effectively in temperatures ranging from -40°C up to +100°C.

In which type of machinery is the KL54 typically used?

It is ideal for agricultural machinery, mobile cranes, and standard industrial cylinders, particularly in light to medium-duty applications.

How long does it take for delivery?

Our standard delivery time is between 7 to 15 working days depending on the order size.

What is the sliding speed capability of this guide ring?

The KL54 guide ring supports a maximum sliding speed of up to 1.0 meters per second.

Is the KL54 guide ring easy to install?

Yes, easy installation is one of the key design advantages of the KL54 series, helping to reduce maintenance downtime.
