PTFE Composite Bushing Low Friction

PTFE Bronze Composite Bushings

PTFE Composite Bushing Low Abrasion

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL63

Send Inquiry

Product Description

Product Overview

KL63 PTFE Composite Bushing is a high-performance self-lubricating solution consisting of carbon steel, bronze, and PTFE. It is specifically designed to provide low friction and exceptional abrasion resistance in demanding environments.

Name: KL63 PTFE Composite Bushing
Material: Carbon Steel PTFE Bronze
Temperature (max): -195 / +280 °C
Sliding Speed: 2.0 (Dry Run) / 5.0 (Hydraulic Fluid) M/s
Style: Hydraulic Guiding Elements
Application: High Radial Load Applications

⭐ Key Advantages

  • Suitable for dry applications
  • Excellent Abrasion Resistance
  • Ultra-Low friction coefficient
  • Extended service life
  • Superior thermal properties & dimensional stability
  • Optimum oil film maintenance
  • High load-bearing capacity

⚙️ Area of Application

  • Hydraulic Cylinders
  • Pneumatic Cylinders
  • Heavy-duty Industrial Machinery
  • High Radial Load Systems
KL63 Carbon Steel PTFE Bronze Composite Bushings

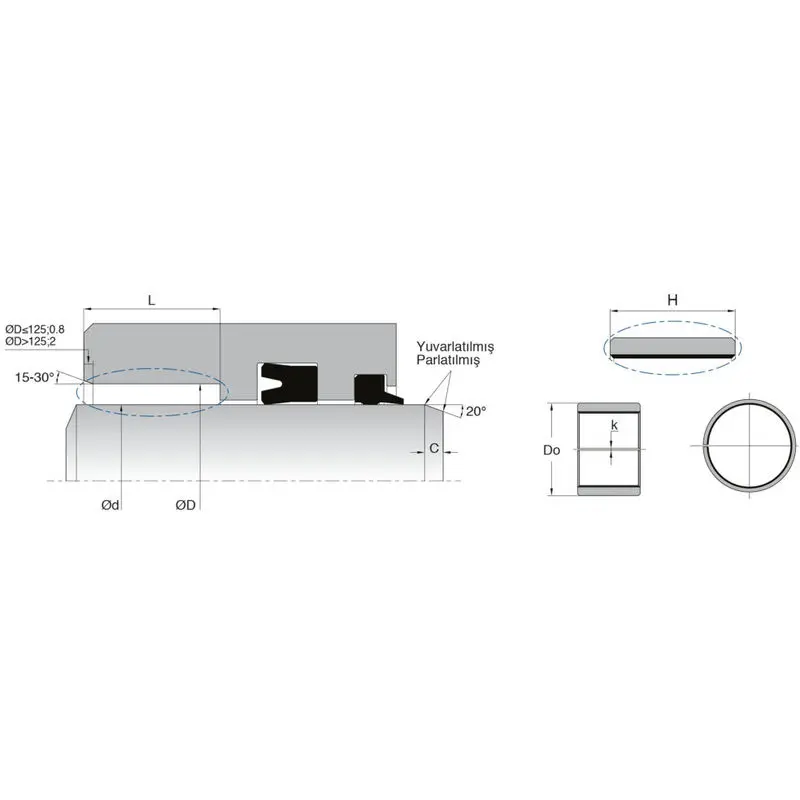

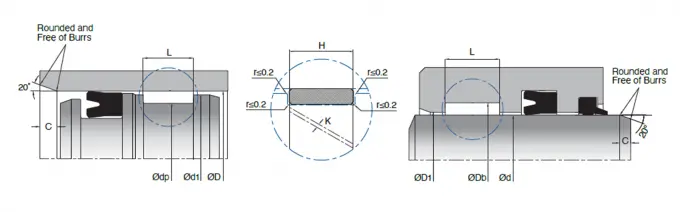

Technical Dimensions

Model Part No. d (f7) D (H7) L (+0.2/-0) Material Details
KL63-0066810Steel - Teflon - Bushing
KL63-00881010Steel - Teflon - Bushing
KL63-008/28108Steel - Teflon - Bushing
KL63-010101215Steel - Teflon - Bushing
KL63-012121415Steel - Teflon - Bushing
KL63-012/1121420Steel - Teflon - Bushing
KL63-016161815Steel - Teflon - Bushing
KL63-020202320Steel - Teflon - Bushing
KL63-025252830Steel - Teflon - Bushing
KL63-030303430Steel - Teflon - Bushing
KL63-040404440Steel - Teflon - Bushing
KL63-050505550Steel - Teflon - Bushing
KL63-060606560Steel - Teflon - Bushing
KL63-080808560Steel - Teflon - Bushing
KL63-10010010550Steel - Teflon - Bushing
KL63-15015015560Steel - Teflon - Bushing
KL63-210/121021580Steel - Teflon - Bushing

*Note: Partial models listed. Please contact for full size range available from KL63-006 to KL63-210.

Payment & Shipping Terms

Packaging: Opp bags
Delivery Time: 7-15 work days
Payment: L/C, T/T, Paypal
Supply Ability: 100,000 pcs / month

Frequently Asked Questions

What materials are used in the KL63 bushing?
The KL63 is a composite bushing made of a robust carbon steel backing, a sintered bronze layer, and a PTFE self-lubricating sliding surface.
What is the maximum operating temperature for these bushings?
KL63 bushings are designed to withstand extreme temperatures ranging from -195°C up to +280°C.
Are KL63 bushings suitable for dry running conditions?
Yes, they are specifically designed for dry applications with a sliding speed of up to 2.0 m/s without additional lubrication.
In which applications is the KL63 most commonly used?
They are ideal for hydraulic and pneumatic cylinders, particularly in applications involving high radial loads.
What is the typical lead time for an order?
Standard orders are typically processed and delivered within 7 to 15 working days.
What are the available payment methods?
We accept various payment terms including L/C, T/T, and Paypal to facilitate easy transactions.
