Discount KL64 Hydraulic Guide Ring High Performance Composite Bushings Exporters, Pricelist

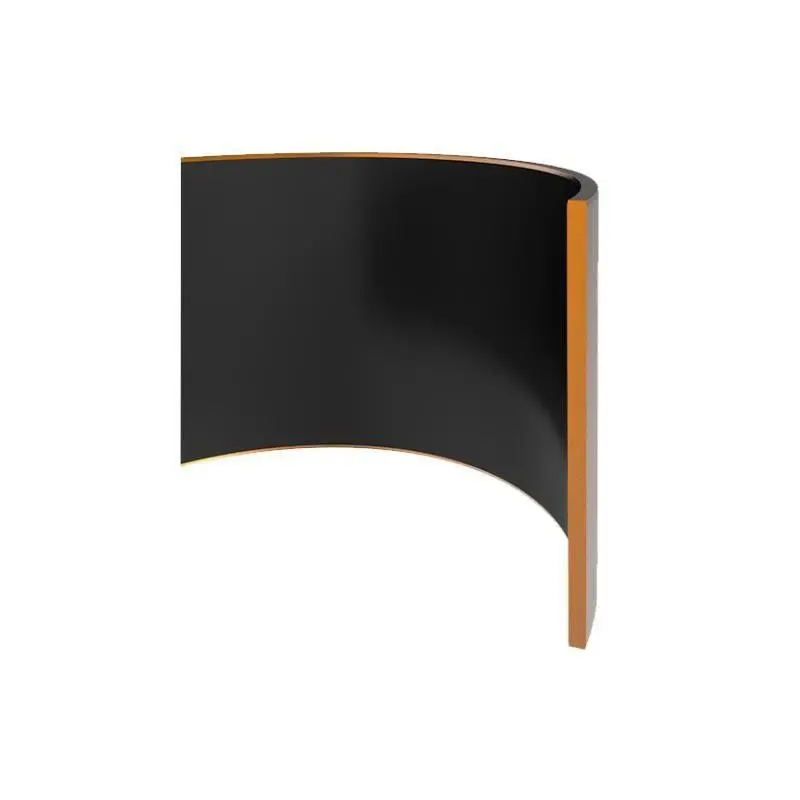

KL64 Hydraulic Guide Ring

Kelong Hydraulic Guide Ring

High Performance Composite Bushings

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL64

Send Inquiry

Product Description

⚙️ Product Details

Material: Carbon Steel PTFE Bronze

Temperature (max): -195 / +280 °C

Sliding Speed (max): 2.0 m/s (Dry Run) | 5.0 m/s (Hydraulic Fluid)

Style: Hydraulic Guiding Elements

Application: Hydraulic and Pneumatic Cylinders

Packaging: Opp bags

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Paypal

Supply Ability: 100,000 pcs / month

⭐ Features & Advantages

The KL64 is a high-performance composite bushing specifically engineered to provide exceptional stability and durability under extreme high-temperature conditions.

Excellent Thermal Properties: Optimized bronze layer for superior heat dissipation.
Corrosion Resistance: The specialized bronze layer is suitable for acidic or alkaline media.
High Load Capacity: Engineered for high radial load-bearing applications.

🎯 Area of Application

Hydraulic and Pneumatic Cylinders
Industrial equipment with high radial load requirements

📊 Specifications & Dimensions

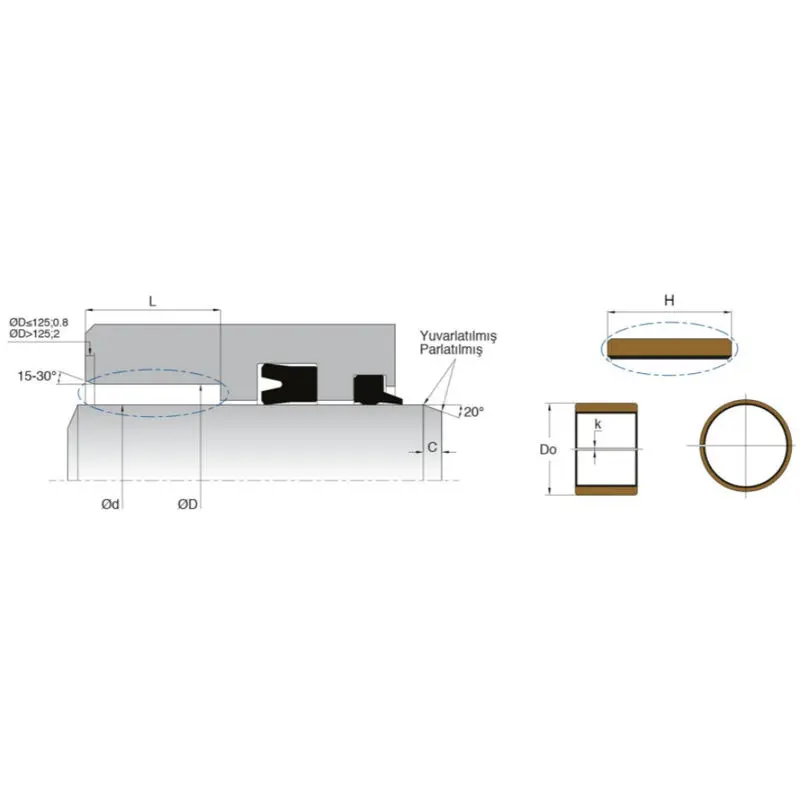

Model	d (f7)	D (H7)	L (+0.2/-0)	Material
KL64-014	14	16	10	Bronze - Teflon - Bushing
KL64-016	16	18	10	Bronze - Teflon - Bushing
KL64-016/1	16	18	25	Bronze - Teflon - Bushing
KL64-016/3	16	18	15	Bronze - Teflon - Bushing
KL64-020	20	23	15	Bronze - Teflon - Bushing
KL64-020/1	20	23	30	Bronze - Teflon - Bushing
KL64-020/2	20	23	25	Bronze - Teflon - Bushing
KL64-022	22	25	25	Bronze - Teflon - Bushing
KL64-035	35	39	30	Bronze - Teflon - Bushing
KL64-040	40	44	30	Bronze - Teflon - Bushing
KL64-045	45	50	30	Bronze - Teflon - Bushing
KL64-050	50	55	30	Bronze - Teflon - Bushing
KL64-050/1	50	55	40	Bronze - Teflon - Bushing
KL64-055	55	60	30	Bronze - Teflon - Bushing
KL64-060	60	65	20	Bronze - Teflon - Bushing
KL64-060/1	60	65	30	Bronze - Teflon - Bushing
KL64-060/2	60	65	40	Bronze - Teflon - Bushing
KL64-065	65	70	40	Bronze - Teflon - Bushing
KL64-070	70	75	30	Bronze - Teflon - Bushing
KL64-080	80	85	30	Bronze - Teflon - Bushing
KL64-090	90	95	30	Bronze - Teflon - Bushing
KL64-100	100	105	30	Bronze - Teflon - Bushing
KL64-120	120	125	50	Bronze - Teflon - Bushing
KL64-150	150	155	60	Bronze - Teflon - Bushing

FAQ

What is the temperature range for the KL64 bushing?

The KL64 bushing is designed for extreme environments, with a working temperature range from -195°C up to +280°C.

What are the main materials used in this product?

The product is a composite bushing made of Carbon Steel, PTFE (Teflon), and Bronze layers.

What is the maximum sliding speed supported?

It supports up to 2.0 m/s during dry runs and up to 5.0 m/s when working with hydraulic fluids.

Can these bushings handle corrosive media?

Yes, the bronze layer is specifically designed to be corrosion-resistant and is suitable for use in acidic or alkaline environments.

What are the standard delivery and payment terms?

Standard delivery takes 7-15 working days. We accept L/C, T/T, and Paypal as payment methods.

Is this product suitable for pneumatic cylinders?

Yes, the KL64 is designed for use in both hydraulic and pneumatic cylinder applications, especially those involving high radial loads.
