The KL71 pneumatic piston seal is a high-performance double acting seal specifically engineered for use in small grooves. Its design ensures efficiency in compact pneumatic systems while maintaining robust durability.

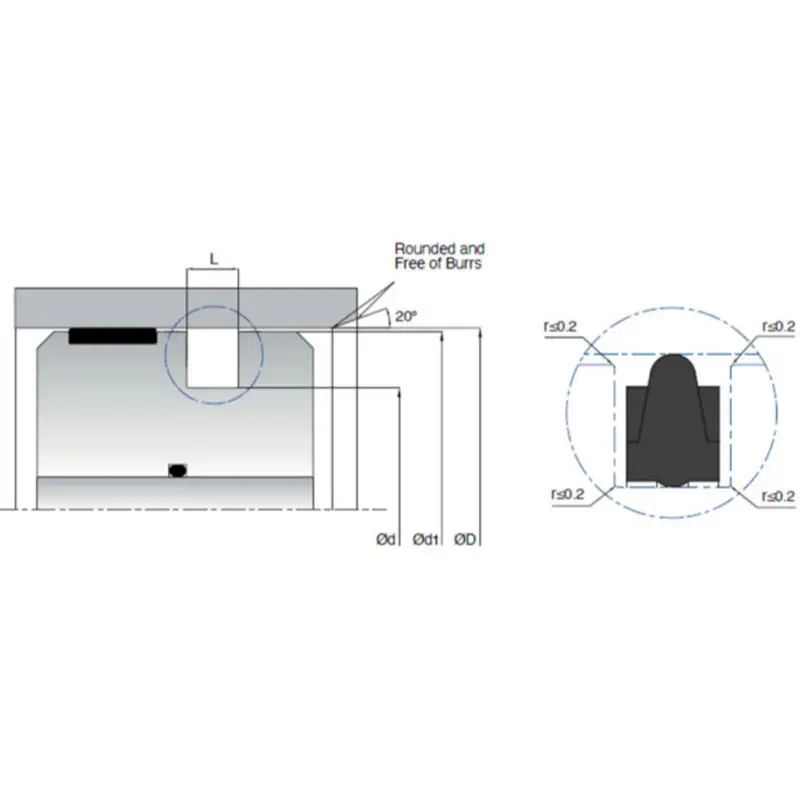

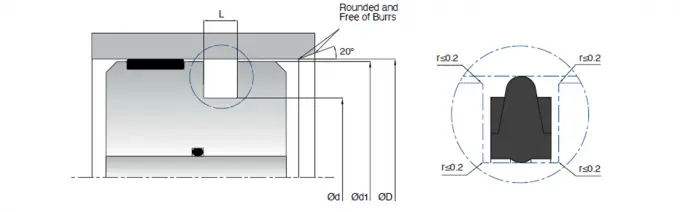

| Model | D (H11) | d (h9) | L (+0.2/-0) | d1 (±0.1) | Material |
|---|---|---|---|---|---|
| KL71-008 | 8 | 4 | 1.6 | 7.7 | NBR |
| KL71-008/1 | 8 | 4.4 | 1.8 | 7.7 | NBR |
| KL71-010 | 10 | 5.4 | 1.8 | 9.7 | NBR |
| KL71-012 | 12 | 7.4 | 1.8 | 11.7 | NBR |
| KL71-016 | 16 | 11.4 | 1.8 | 15.7 | NBR |
| KL71-020 | 20 | 14 | 2.4 | 19.5 | NBR |
| KL71-025 | 25 | 17 | 3.2 | 24.5 | NBR |
| KL71-030 | 30 | 22 | 3.2 | 29.5 | NBR |
| KL71-032 | 32 | 24 | 3.2 | 31.5 | NBR |
| KL71-040 | 40 | 32 | 3.2 | 39.5 | NBR |
| KL71-050 | 50 | 40 | 4 | 49.5 | NBR |
| KL71-063 | 63 | 53 | 4 | 62.4 | NBR |
| KL71-080 | 80 | 65 | 6 | 79.4 | NBR |
| KL71-100 | 100 | 85 | 6 | 99.4 | NBR |
| KL71-125 | 125 | 110 | 6 | 124.3 | NBR |
| KL71-160 | 160 | 140 | 8 | 159.3 | NBR |
