Cheap KL76 Pneumatic Rod Seals Single Acting Sealing Element For Open Groove Exporter, Company

KL76 Pneumatic Rod Seals

Pneumatic Rod Seals Single Acting

Single Acting Rod Seals Pneumatic

Place of Origin:

China

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL76

Send Inquiry

Product Description

Product Specifications

Style Pneumatic Rod Seals

Material NBR

Pressure (max) 16 Bar

Temperature -30 / +105 °C

Sliding Speed (max) 10 M/s

Application Pneumatic Cylinders

Payment & Shipping

Packaging Details Opp bags

Delivery Time 7-15 work days

Payment Terms L/C, T/T, Paypal

Supply Ability 100,000 pcs / months

Product Overview

KL76 pneumatic rod seal is a single acting sealing element made of elastomer material. It features a metal ring body inside designed specifically for use in open grooves.

Advantages

Superior wiping performance
Superior sealing performance
Wide range of dimensions
Good adaptation to temperature changes thanks to the internal metal ring

Area of Application

Pneumatic Cylinders
Recommended for use in cylinders according to ISO 6432

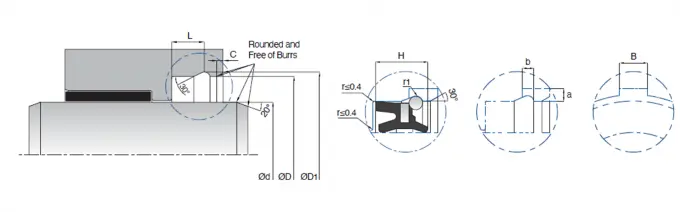

KL76 Pneumatic Rod Seals Single Acting Sealing Element

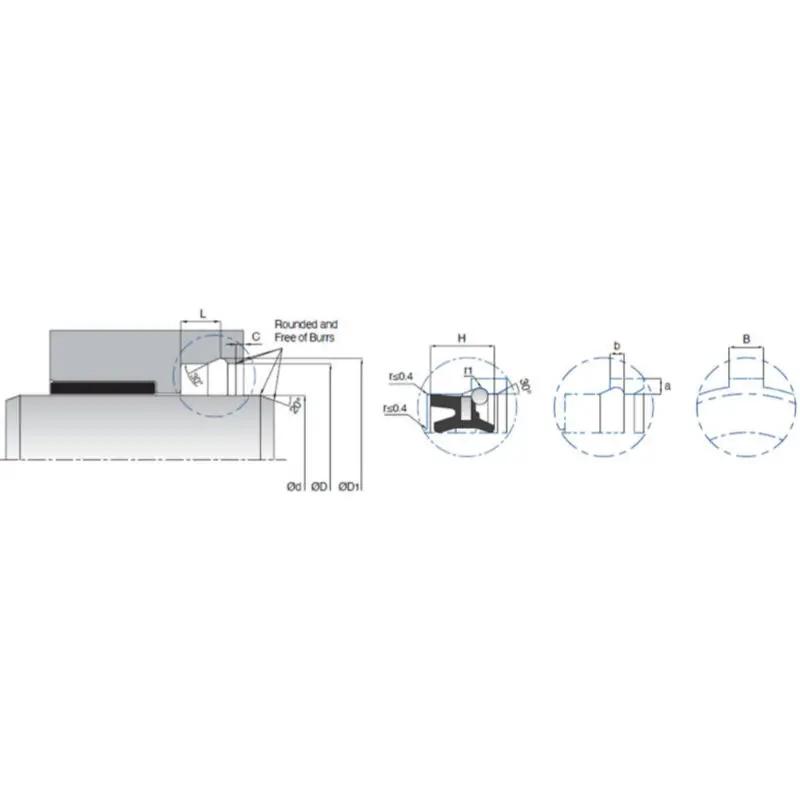

Dimensions & Parameters

Model	d (f9)	D1 (± 0.1)	D (H10)	H	L (+0.2/-0)	r1	a	b	B	C	Material
KL76-010	10	19	17	8.4	7.5	1.1	1.8	2.2	4	1.5	NBR
KL76-012	12	24	22	9.5	8.5	1.1	1.8	2.2	4	1.5	NBR
KL76-012/1	12	22	20	8.5	7.5	1.1	1.8	2.2	4	1.5	NBR
KL76-014	14	26	24	9.5	8.5	1.1	1.8	2.2	5	1.5	NBR
KL76-016	16	28	26	9.5	8.5	1.1	1.8	2.2	5	1.5	NBR
KL76-018	18	28	26	8.5	7.5	1.1	1.8	2.2	5	1.5	NBR
KL76-020	20	32	30	9.5	8.5	1.1	1.8	2.2	5	2	NBR
KL76-022	22	34.5	32	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-025	25	37.5	35	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-030	30	42.5	40	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-032	32	44.5	42	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-035	35	47.5	45	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-040	40	52.5	50	9.5	8.5	1.4	2	2.8	7.5	2	NBR
KL76-045	45	57.5	55	9.5	8.5	1.4	2.5	2.8	10	2	NBR
KL76-050	50	63.2	60	9.5	8.9	1.8	2.5	3.6	10	2	NBR

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the KL76 pneumatic rod seal? A: The KL76 is a single-acting sealing element designed to provide superior wiping and sealing performance for pneumatic cylinders, specifically those with open grooves.

Q2: What material is used for the KL76 seal? A: It is made from high-quality NBR (Nitrile Rubber) elastomer material and includes an internal metal ring for better structural integrity and temperature adaptation.

Q3: What are the pressure and temperature limits for this seal? A: The KL76 seal can handle a maximum pressure of 16 Bar and operates efficiently within a temperature range of -30°C to +105°C.

Q4: Is the KL76 seal compatible with standard cylinder specifications? A: Yes, it is highly recommended for use in pneumatic cylinders that comply with the ISO 6432 standard.

Q5: What is the maximum sliding speed supported? A: This seal is designed to support a maximum sliding speed of up to 10 meters per second (M/s).

Q6: What are the available payment and delivery terms? A: We accept payment via L/C, T/T, and Paypal. Standard delivery time is between 7 to 15 working days depending on order volume.
