Product Specifications
Name
Pneumatic Cylinder Rod Seals
Material
PU (Polyurethane)
Max Temperature
-35 / +100 °C
Max Sliding Speed
1.0 M/s
Max Pressure
16 Bar
Standards
ISO 6432, 21287
KL77 Performance Overview

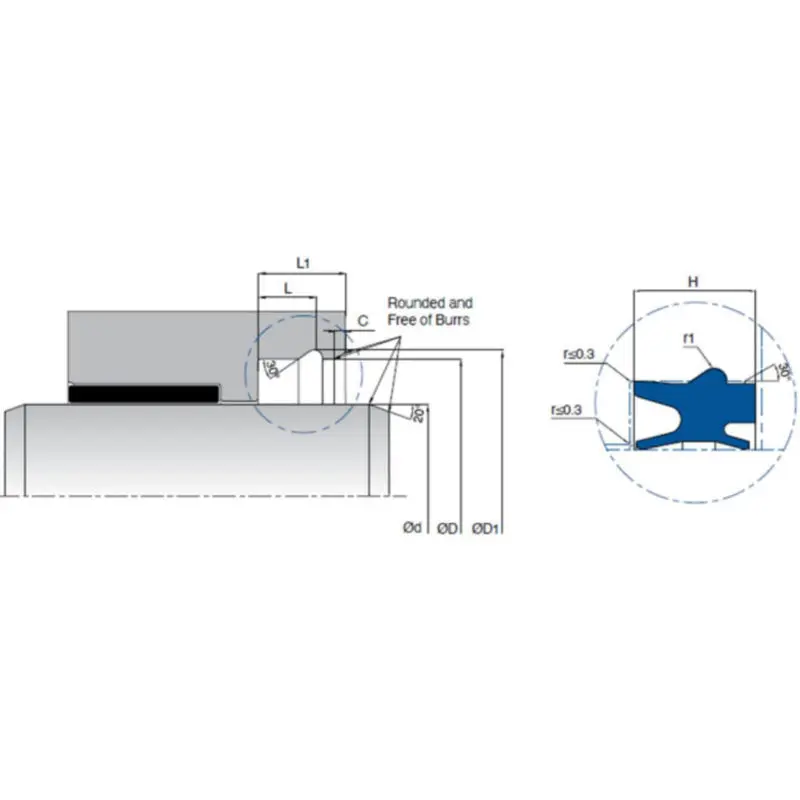

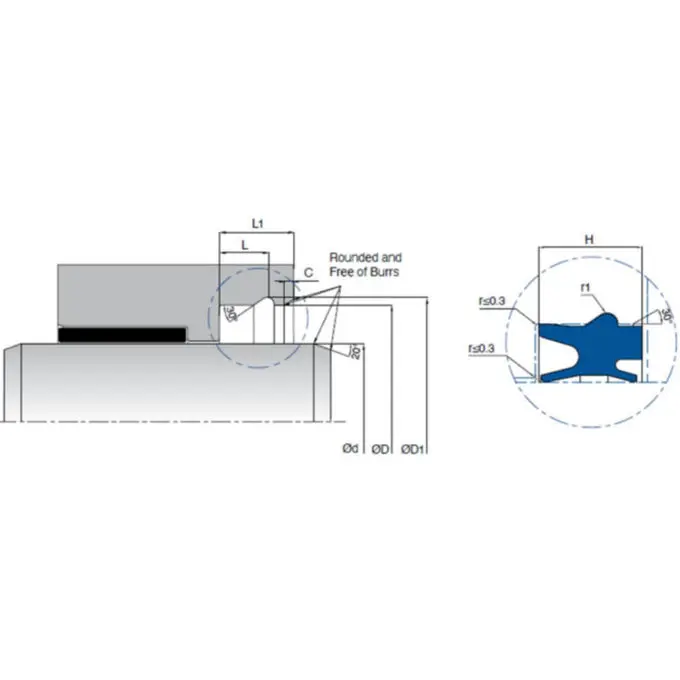

KL77 - PNEUMATIC ROD SEAL provides superior wiping and sealing performance. This specialized sealing element is designed with integrated scraping features. Its unique design allows for assembly into open grooves without the need for additional circlips, significantly reducing assembly complexity and cost.
🛡️
Superior Wiping
Advanced scraping design to keep rods clean.
💎
High Tear Strength
Durable PU material for long-lasting service.
⚙️
Low Cost
Economic sealing solution without sacrificing quality.
Frequently Asked Questions
❓ What material is the KL77 rod seal made of?
The KL77 pneumatic rod seal is manufactured from high-quality PU (Polyurethane), which provides excellent tear strength and durability.
❓ What is the working temperature range for this seal?
This seal can operate effectively within a temperature range of -35°C to +100°C.
❓ Does the KL77 seal require a circlip for installation?
No, the special design of the KL77 allows it to be assembled into open grooves without the need for any circlips.
❓ Which ISO standards are compatible with these seals?
They are highly recommended for use in pneumatic cylinders according to ISO 6432 and ISO 21287 standards.
❓ What are the maximum pressure and speed ratings?
The KL77 rod seal supports a maximum pressure of 16 Bar and a maximum sliding speed of 1.0 M/s.
❓ What are the customization options for packaging?
We provide customizable packaging solutions to meet specific client requirements for shipping and storage.
