KL80 Pneumatic Cylinder Rod Seals

ISO9001 Pneumatic Cylinder Rod Seals

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL80

Send Inquiry

Product Description

KL80 Pneumatic Rod Seal

KL80 pneumatic rod seal is a single acting sealing element featuring an elastomer sealing ring and a specially designed high-strength TPE scraper. This combination ensures superior performance in demanding pneumatic applications.

Material NBR / TPE
Max Pressure 16 Bar
Temperature Range -30°C to +100°C
Sliding Speed 1.0 m/s

Area of Application

  • ✓ Pneumatic Cylinders
  • ✓ Recommended for use in cylinders according to ISO 6432, 21287

Payment & Shipping

MOQ 100 Pcs
Delivery Time 15 Days
Supply Ability 100,000 pcs / month

Key Advantages

  • ★ Excellent surface scraping property in heavy duty conditions
  • ★ Good resistance to rupture and tear due to high-strength TPE scraper
  • ★ Suitable for varying operating temperatures
  • ★ Superior wiping performance ensuring cylinder longevity
KL80 Pneumatic Cylinder Rod Seals

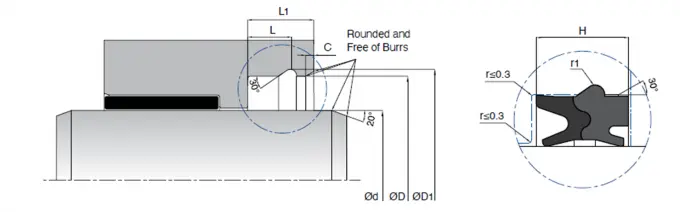

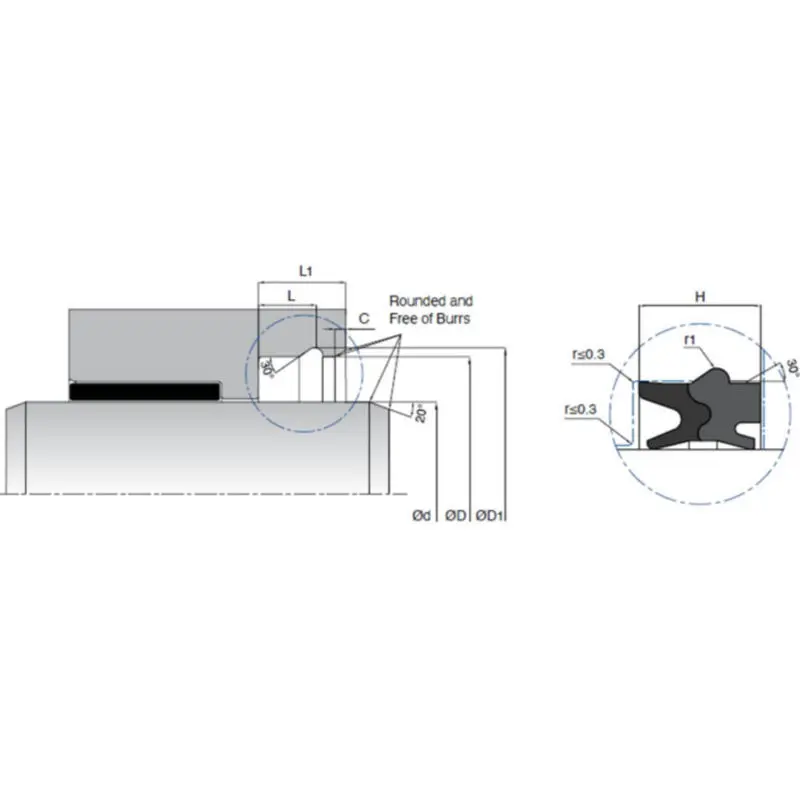

Technical Dimensions

Model d (f9) D (H10) L (+0.5/-0) L1 (+0.2/-0) H D1 (+0.2/-0.1) r1 C Material
KL80-01212227.71310.4241.11.5TPE
KL80-01414247.71310.4261.11.5TPE
KL80-01616267.71310.4281.11.5TPE
KL80-01818287.71311301.11.5TPE
KL80-02020307.71310.4321.11.5TPE
KL80-02222328.9131134.51.42TPE
KL80-02525358131137.51.42TPE
KL80-028283881411.540.51.42TPE
KL80-030304081411.542.51.42TPE
KL80-03232428131144.51.42TPE
KL80-035354581411.547.51.42TPE
KL80-04040508131152.51.42TPE
KL80-04545558.61411.558.21.82TPE
KL80-05050608.61411.563.21.82TPE
KL80-06363759.6161378.21.82TPE

Frequently Asked Questions

What is the primary function of the KL80 Pneumatic Rod Seal?
The KL80 is a single-acting sealing element designed to provide both sealing and high-efficiency scraping for pneumatic cylinders, specifically those adhering to ISO 6432 and 21287 standards.
What materials are used in the construction of the KL80?
It utilizes an elastomer sealing ring (typically NBR) combined with a high-strength TPE scraper for enhanced durability and wiping performance.
Can the KL80 handle high-pressure environments?
Yes, the KL80 is designed to operate at maximum pressures of up to 16 Bar, making it suitable for most standard pneumatic applications.
What are the temperature limitations for this seal?
The seal is highly versatile, operating effectively in temperatures ranging from -30°C to +100°C.
Why is the TPE scraper design beneficial?
The specially designed TPE scraper provides high resistance to rupture and tearing, ensuring excellent surface scraping even in heavy-duty or contaminated environments.
Are custom packaging options available?
Yes, we provide customizable packaging details to meet specific logistics and branding requirements.
