Cheap KL90 Hydraulic Double Lip Wiper Seal No Twisting In Housing Exporter, Company

Hydraulic Double Lip Wiper Seal

KL90 Double Lip Wiper Seal

ISO9001 Hydraulic Wiper Seal

Place of Origin:

CHINA

Brand Name:

KELONG

Model Number:

KL-90

Product Description

Product Specifications
Name Double Lip Wiper Seal
Material PU NBR
Temperature (max) °C -40/+100 -30/+105
Sliding Speed (max)- M/s 1.0
Payment & Shipping Terms
Minimum Order Quantity 100
Packaging Details Customizable packaging
Delivery Time 15 Days
Payment Terms L/C, T/T
Supply Ability 100,000 pcs /months
KL90-WIPER Superior Wiping Performance Simple Groove Design No Twisting In The Housing

KL90 wipers are sealing elements preventing foreign particles from the outer environment from penetrating hydraulic applications. They can be produced from thermoplastic polyurethane or elastomer material. They have a superior wiping effect thanks to the cut lip design. K09 provides optimal contact force with its stepped design at the outside diameter.

Key Advantages
Superior wiping performance

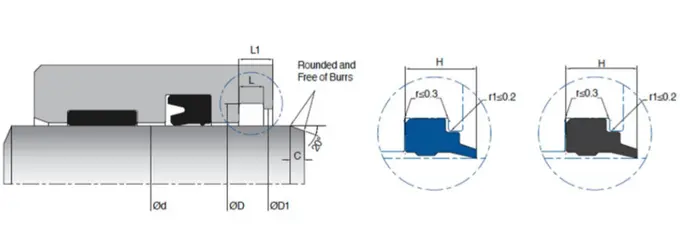

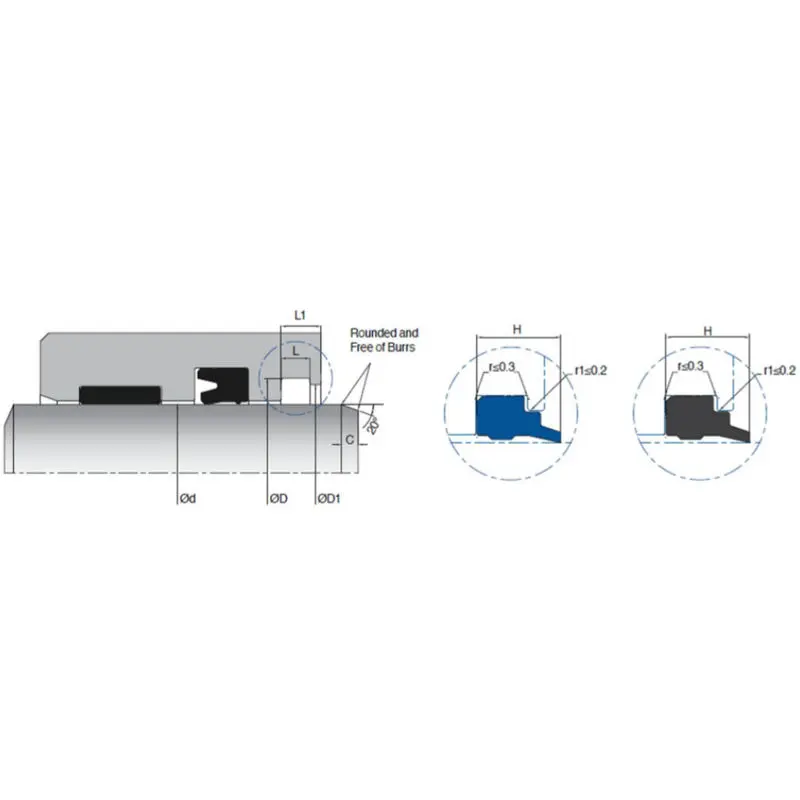

Simple groove design for easy maintenance
No twisting in the housing during operation
Used in heavy conditions by the good tear and rupture properties of PU material
Easy and quick installation
Area of Application
Agricultural machinery
Construction machinery
Cranes and lifting equipment
Forklifts
Standard industrial cylinders
Mining industry
Product Visuals
Frequently Asked Questions
What is the primary function of the KL90 Double Lip Wiper Seal?
The KL90 wiper seal is designed to prevent foreign particles, dust, and moisture from entering hydraulic systems, ensuring the longevity and efficiency of the internal components.
Which materials are available for these seals?
These seals are primarily manufactured using high-quality TPU (Thermoplastic Polyurethane) or elastomer materials (PU NBR) known for their excellent tear and rupture resistance.
What is the maximum operating temperature for these wiper seals?
The material options allow for a wide temperature range, typically from -40°C to +100°C or -30°C to +105°C depending on the specific material choice.
Does the design prevent twisting during installation?
Yes, the KL90 features a specialized design that ensures it remains stable and does not twist within the housing, even under heavy-duty conditions.
Are the packaging and shipping options customizable?
Yes, we provide customizable packaging details to meet specific client requirements, with a standard supply ability of up to 100,000 pieces per month.
