Discount KLSB Hydraulic Guide Ring Custom For Rod / Piston Application Product, Company

1 / 5

Discount KLSB Hydraulic Guide Ring Custom For Rod / Piston Application Product, Company

KLSB Hydraulic Guide Ring

Hydraulic Guide Ring Custom

ISO9001 Hydraulic Piston Rings

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KLSB

Send Inquiry

Product Description

Product Specifications

Name:

Hydraulic Piston Rings

Material:

POLYESTER FIBER, PHENOLIC RESIN

Temperature:

-40 / +120 °C

Sliding Speed:

1.0 M/s (max)

Style:

Hydraulic Guiding Elements

Application:

Excavators / Heavy Duty Cylinders

Payment & Shipping Terms

Packaging:

Opp bags

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs / month

Product Details

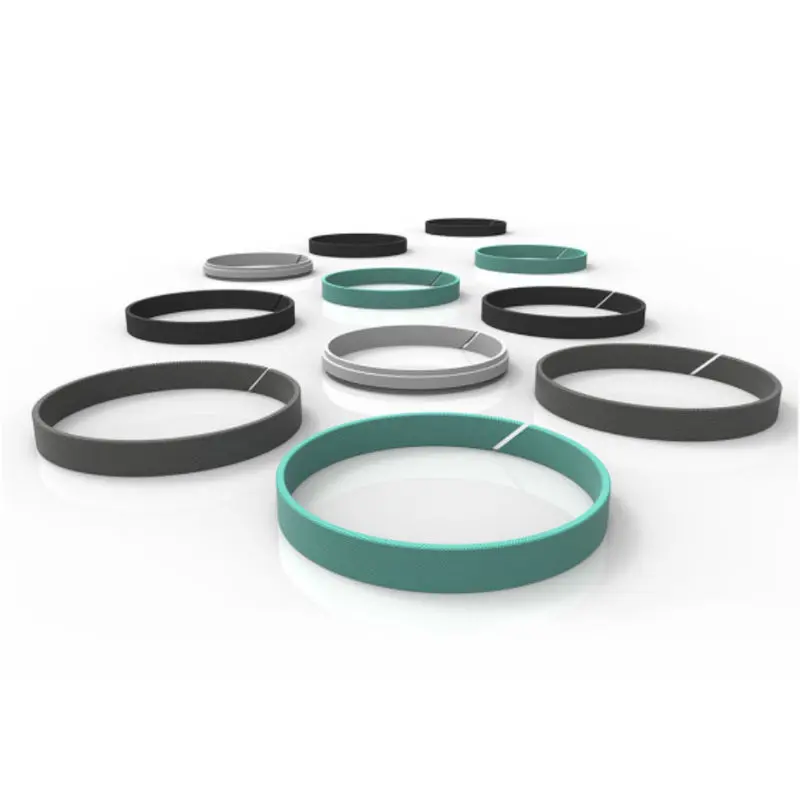

KLSB produced from synthetic fabric and phenolic resin to be used in rod and piston applications in hydraulic systems. These piston-rod guide rings are composite guiding elements designed to provide high load carrying capacity.

Key Advantages

Heavy and medium duty application compatible

High form stability at operating temperature

Easy installation

Wide range of standard products

Area of Application

Mobile machinery

Mining industry

Excavators

Presses

Heavy duty cylinders

KLSB Hydraulic Guide Ring Custom For Rod / Piston Application

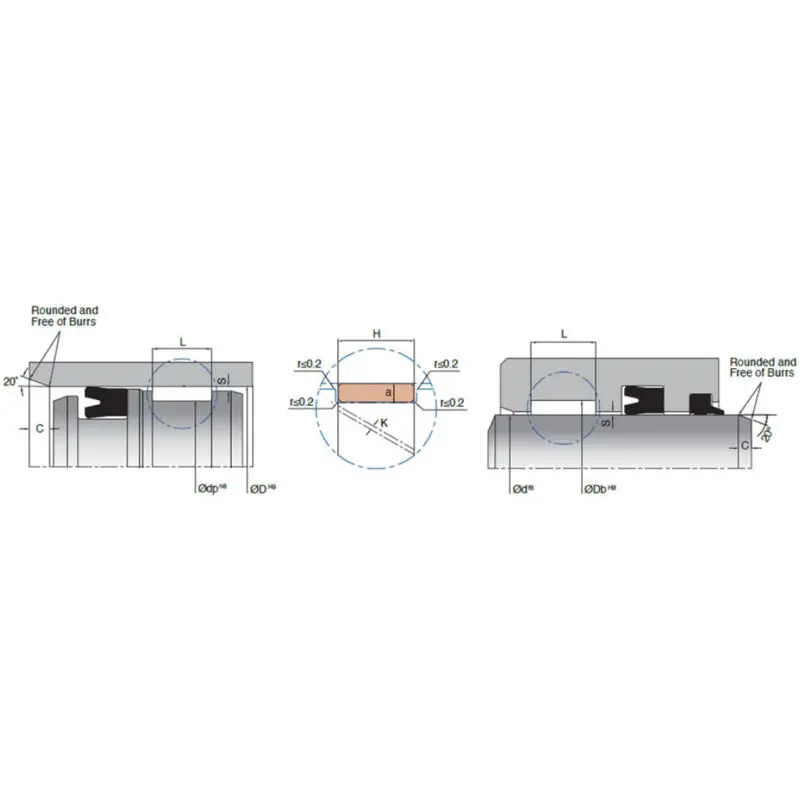

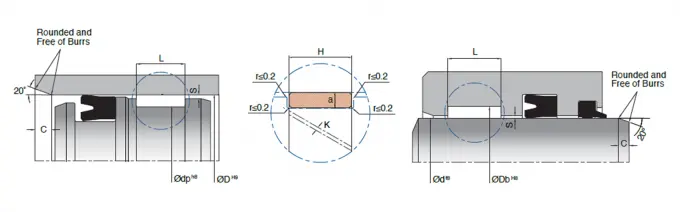

Technical Dimensions

Model	a	L (+0.2/-0)	H	Material
KLSB-2X10	2	10	9.8	PHENOLIC RESIN
KLSB-2X15	2	15	14.8	PHENOLIC RESIN
KLSB-2X20	2	20	19.8	PHENOLIC RESIN
KLSB-2X25	2	25	24.8	PHENOLIC RESIN
KLSB-2.5X5.6	2.5	5.6	5.5	PHENOLIC RESIN
KLSB-2.5X9.7	2.5	9.7	9.5	PHENOLIC RESIN
KLSB-2.5X10	2.5	10	9.8	PHENOLIC RESIN
KLSB-2.5X15	2.5	15	14.8	PHENOLIC RESIN
KLSB-2.5X20	2.5	20	19.8	PHENOLIC RESIN
KLSB-2.5X25	2.5	25	24.8	PHENOLIC RESIN
KLSB-3X15	3	15	14.8	PHENOLIC RESIN
KLSB-3X20	3	20	19.8	PHENOLIC RESIN
KLSB-3X25	3	25	24.8	PHENOLIC RESIN
KLSB-4X15	4	15	14.8	PHENOLIC RESIN
KLSB-4X20	4	20	19.8	PHENOLIC RESIN
KLSB-4X25	4	25	24.8	PHENOLIC RESIN
KLSB-4X30	4	30	29.8	PHENOLIC RESIN

Frequently Asked Questions

What materials are used in KLSB Hydraulic Piston Rings?

KLSB guide rings are manufactured using a high-quality composite of synthetic fabric and phenolic resin, which ensures high load-bearing capacity and durability.

What is the temperature range for these guiding elements?

These rings are designed to operate efficiently within a temperature range of -40°C to +120°C, making them suitable for various hydraulic environments.

In which machinery can I use these hydraulic piston rings?

They are ideal for mobile machinery, excavators, heavy-duty cylinders, mining industry equipment, and hydraulic presses.

What is the standard delivery time for an order?

Standard delivery typically takes between 7 to 15 working days depending on the order volume and specific requirements.

Do you support international payment methods?

Yes, we accept various payment terms including L/C, T/T, and Paypal to facilitate easy international transactions.

Are these guide rings easy to install?

Yes, the KLSB series is specifically designed for easy installation in both rod and piston applications within hydraulic systems.

Product Detail

Discount KLSB Hydraulic Guide Ring Custom For Rod / Piston Application Product, Company

KLSB Hydraulic Guide Ring

Hydraulic Guide Ring Custom

ISO9001 Hydraulic Piston Rings

Product Description

Product Specifications

Payment & Shipping Terms

Product Details

Key Advantages

Area of Application

Technical Dimensions

Frequently Asked Questions
