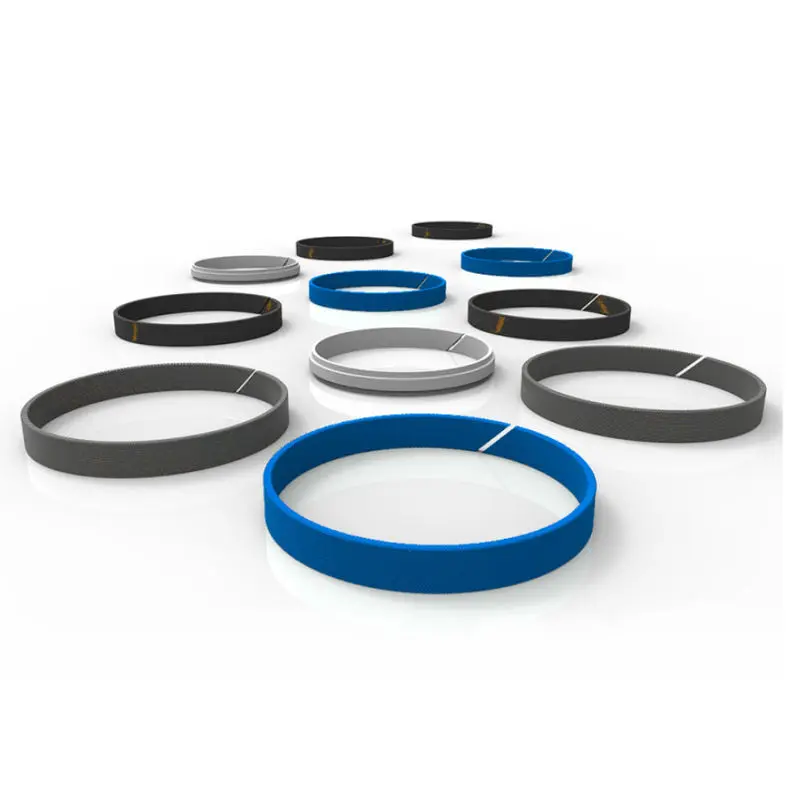

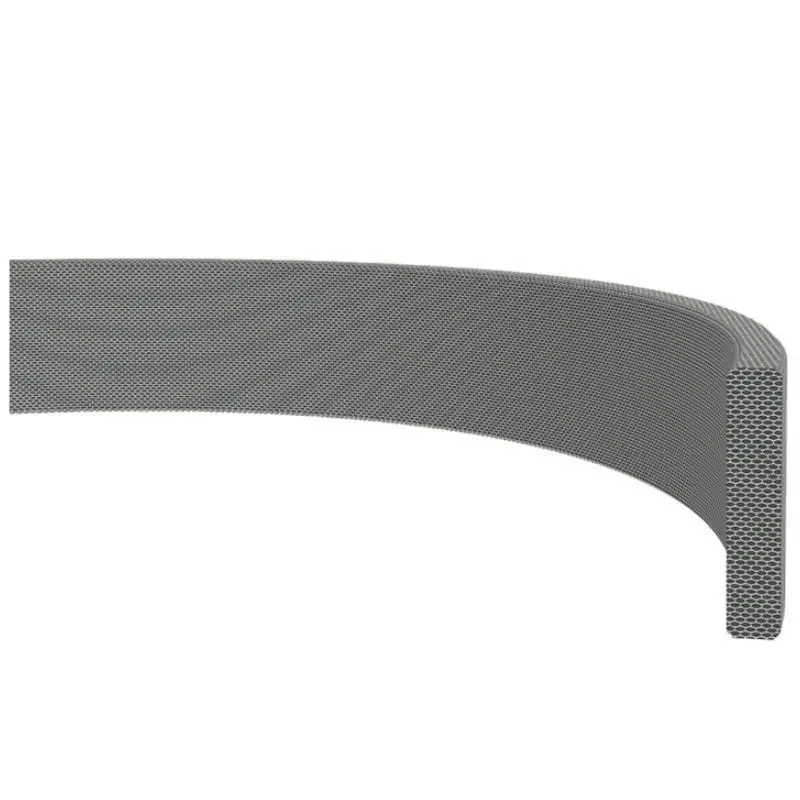

KL62 piston-rod guide rings are composite guiding elements produced from synthetic fabric and polyester resin. Designed for high load-carrying capacity, these rings are ideal for both rod and piston applications in hydraulic systems.
Unlike standard composite guide rings, the KL62 features graphite additives which significantly decrease friction and provide self-lubrication. This makes them highly preferred for dry applications or cylinders where lubrication may be insufficient.

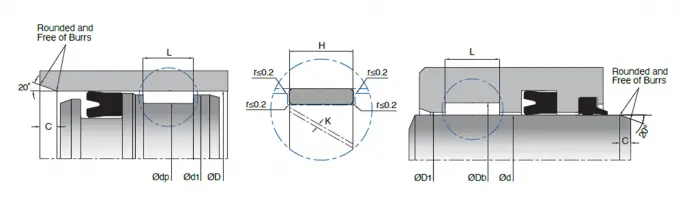

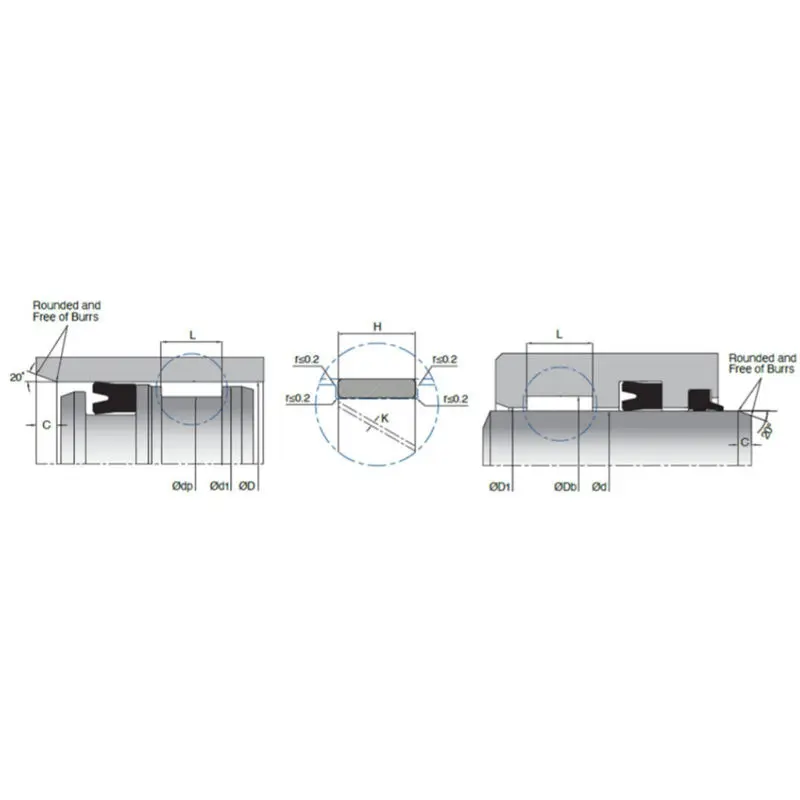

| Model No. | d(f8) dp(h8) | Db(H8) D(H9) | L (+0.2/-0) | H | d1 (h9) | D1 (H9) | Material |
|---|---|---|---|---|---|---|---|
| KL62-017 | 17 | 20 | 4 | 3.8 | 19 | 18 | PHENOLICS ARAMID |
| KL62-020 | 20 | 24 | 5.6 | 5.4 | 23 | 21 | PHENOLICS ARAMID |
| KL62-020/1 | 20 | 24 | 9.7 | 9.5 | 23 | 21 | PHENOLICS ARAMID |
| KL62-022 | 22 | 25 | 4 | 3.8 | 24 | 23 | PHENOLICS ARAMID |
| KL62-025 | 25 | 28 | 4 | 3.8 | 27 | 26 | PHENOLICS ARAMID |
| KL62-027 | 27 | 30 | 4 | 3.8 | 29 | 28 | PHENOLICS ARAMID |
| KL62-029 | 29 | 32 | 5 | 4.8 | 31 | 30 | PHENOLICS ARAMID |
| KL62-030 | 30 | 35 | 9.7 | 9.5 | 33.2 | 31.8 | PHENOLICS ARAMID |
| KL62-032 | 32 | 35 | 5 | 4.8 | 34 | 33 | PHENOLICS ARAMID |
| KL62-035 | 35 | 40 | 9.7 | 9.5 | 38.2 | 36.8 | PHENOLICS ARAMID |
| KL62-035/1 | 35 | 40 | 15 | 14.8 | 38.2 | 36.8 | PHENOLICS ARAMID |
| KL62-037 | 37 | 40 | 5 | 4.8 | 39 | 38 | PHENOLICS ARAMID |
| KL62-040/1 | 40 | 45 | 15 | 14.8 | 43.2 | 41.8 | PHENOLICS ARAMID |
| KL62-042 | 42 | 45 | 5 | 4.8 | 44 | 43 | PHENOLICS ARAMID |
| KL62-045/1 | 45 | 50 | 9.7 | 9.5 | 48.2 | 46.8 | PHENOLICS ARAMID |
| KL62-045/2 | 45 | 50 | 15 | 14.8 | 48.2 | 46.8 | PHENOLICS ARAMID |
| KL62-046 | 46 | 50 | 9.7 | 9.5 | 49 | 47 | PHENOLICS ARAMID |
| KL62-047 | 47 | 50 | 5 | 4.8 | 49 | 48 | PHENOLICS ARAMID |
| KL62-050 | 50 | 55 | 5.6 | 5.4 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL62-050/1 | 50 | 55 | 9.7 | 9.5 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL62-050/2 | 50 | 55 | 15 | 14.8 | 53.2 | 51.8 | PHENOLICS ARAMID |
| KL62-055 | 55 | 60 | 9.7 | 9.5 | 58.2 | 56.8 | PHENOLICS ARAMID |
| KL62-055/1 | 55 | 60 | 15 | 14.8 | 58.2 | 56.8 | PHENOLICS ARAMID |
| KL62-058 | 58 | 63 | 9.7 | 9.5 | 61.2 | 59.8 | PHENOLICS ARAMID |
| KL62-060/1 | 60 | 65 | 15 | 14.8 | 63.2 | 61.8 | PHENOLICS ARAMID |
| KL62-063 | 63 | 68 | 15 | 14.8 | 66.2 | 64.8 | PHENOLICS ARAMID |
| KL62-065 | 65 | 70 | 9.7 | 9.5 | 68.2 | 66.8 | PHENOLICS ARAMID |
| KL62-065/1 | 65 | 70 | 15 | 14.8 | 68.2 | 66.8 | PHENOLICS ARAMID |
| KL62-070/1 | 70 | 75 | 15 | 14.8 | 73.2 | 71.8 | PHENOLICS ARAMID |
| KL62-075 | 75 | 80 | 9.7 | 9.5 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL62-075/1 | 75 | 80 | 5.6 | 5.4 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL62-075/2 | 75 | 80 | 15 | 14.8 | 78.2 | 76.8 | PHENOLICS ARAMID |
| KL62-080 | 80 | 85 | 9.7 | 9.5 | 83.2 | 81.8 | PHENOLICS ARAMID |
| KL62-080/1 | 80 | 85 | 15 | 14.8 | 83.2 | 81.8 | PHENOLICS ARAMID |
| KL62-085 | 85 | 90 | 15 | 14.8 | 88.2 | 86.8 | PHENOLICS ARAMID |
| KL62-090 | 90 | 95 | 15 | 14.8 | 93.2 | 91.8 | PHENOLICS ARAMID |
| KL62-090/1 | 90 | 95 | 9.7 | 9.5 | 93.2 | 91.8 | PHENOLICS ARAMID |
| KL62-095 | 95 | 100 | 9.7 | 9.5 | 98.2 | 96.8 | PHENOLICS ARAMID |
| KL62-095/1 | 95 | 100 | 15 | 14.8 | 98.2 | 96.8 | PHENOLICS ARAMID |
| KL62-100 | 100 | 105 | 9.7 | 9.5 | 103.2 | 101.8 | PHENOLICS ARAMID |
| KL62-120 | 120 | 125 | 9.7 | 9.5 | 123.2 | 121.8 | PHENOLICS ARAMID |
| KL62-125 | 125 | 130 | 15 | 14.8 | 128.2 | 126.8 | PHENOLICS ARAMID |
| KL62-130 | 130 | 135 | 15 | 14.8 | 133.2 | 131.8 | PHENOLICS ARAMID |
| KL62-155 | 155 | 160 | 15 | 14.8 | 158.2 | 156.8 | PHENOLICS ARAMID |
| KL62-160 | 160 | 165 | 15 | 14.8 | 163.2 | 161.8 | PHENOLICS ARAMID |
| KL62-195 | 195 | 200 | 15 | 14.8 | 198.2 | 196.8 | PHENOLICS ARAMID |
| KL62-245 | 245 | 250 | 15 | 14.8 | 248.2 | 246.8 | PHENOLICS ARAMID |
| KL62-315 | 315 | 320 | 15 | 14.8 | 318.2 | 316.8 | PHENOLICS ARAMID |
| KL62-315/1 | 315 | 320 | 9.7 | 9.5 | 318.2 | 316.8 | PHENOLICS ARAMID |
