Product Specifications
Name:
Low Friction Pneumatic Piston Seals
Pressure (max) Bar:
12 / 16
Temperature Max:
-30/+105 °C to -20/+80 °C
Application:
Pneumatic Cylinders (ISO 15552)
Payment & Shipping Terms
Packaging:
Customizable packaging
Supply Ability:
100,000 pcs / month
Product Overview
KL67 - PNEUMATIC PISTON SEAL: Superior Static And Dynamic Sealing Effect With Its Special Design Low Friction.

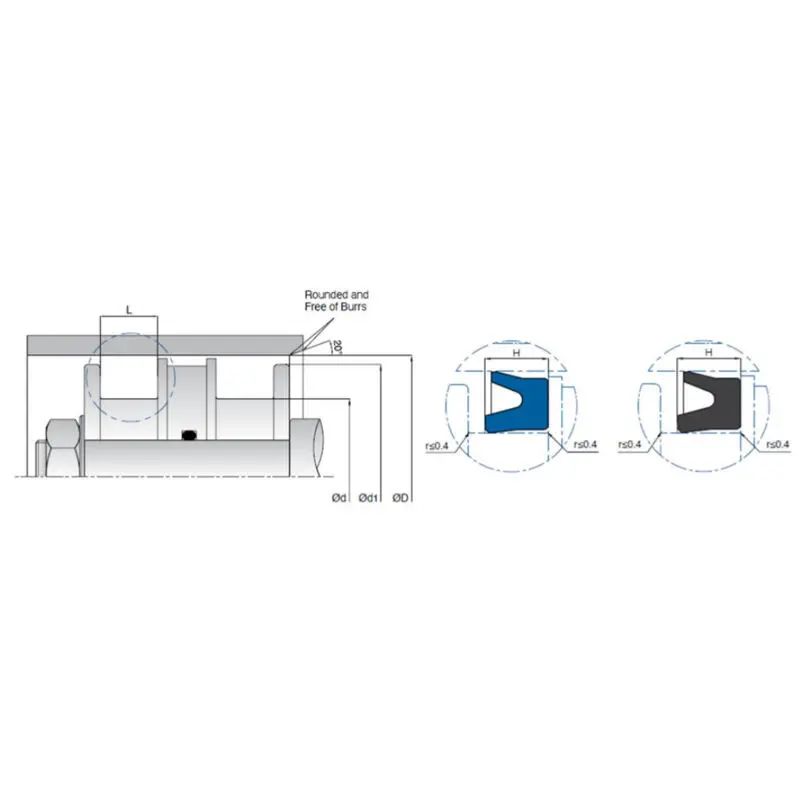

The KL67 pneumatic piston seal is a single-acting U-ring type sealing element suitable for use in piston applications. It can respond quickly to pressurized air due to its specially designed outer lip structure.
Key Advantages
✔
Superior static and dynamic sealing effect with special design
✔
Low friction for optimized performance
✔
Wide range of dimensions available
✔
Suitable for long stroke cylinders and high axial loads
✔
Easy installation process
Application Areas
➔ Pneumatic Cylinders
➔ Recommended for use in general pneumatic cylinders and cylinders according to ISO 15552.
Frequently Asked Questions
What are the main benefits of the KL67 pneumatic piston seal?
The KL67 offers superior static and dynamic sealing, extremely low friction, and is designed for easy installation in various pneumatic applications.
What materials are these seals made from?
These seals are primarily manufactured using high-quality NBR and PU (Polyurethane) materials to ensure durability and flexibility.
What is the maximum pressure these seals can handle?
Depending on the material and specific configuration, they can handle a maximum pressure range of 12 to 16 Bar.
Can these seals be used in ISO standard cylinders?
Yes, they are specifically recommended for use in general pneumatic cylinders and those complying with the ISO 15552 standard.
What temperatures can the KL67 seal withstand?
The seals operate effectively across a wide temperature range, from -30°C to +105°C for certain configurations, and -20°C to +80°C for others.
Is customized packaging available for bulk orders?
Yes, we offer customizable packaging options to meet specific client requirements for shipping and storage.
