Cheap POM Hydraulic Guide Ring Low Friction For Telescopic Cylinders Quotes, Product

POM Hydraulic Guide Ring

Hydraulic Guide Ring Low Friction

Cologne Hydraulic Guiding Elements

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL55

Send Inquiry

Product Description

Product Technical Details

◈ Name: POM Hydraulic Guide Ring

◈ Material: POM

◈ Sliding Speed (max): 1.0 M/s

◈ Style: Hydraulic Guiding Elements

◈ Application: Telescopic Cylinders / Cranes

◈ Temperature (max): -40/+100 °C

Payment & Shipping Terms

➔ Packaging: Opp bags

➔ Delivery Time: 7-15 work days

➔ Payment Terms: L/C, T/T, Paypal

➔ Supply Ability: 100,000 pcs /months

Product Overview

The KL55 is an "L" formed POM guide ring widely preferred in telescopic cylinders. The dimensions and the quantities may change according to the cylinder strokes. It is highly recommended to be used in conjunction with KL08 and KL12 type rod rings for optimal performance.

Key Features & Advantages

High compressive strength material
Internally lubricated for smooth operation
High bearing load capacity across temperatures
Manufactured to very tight tolerances
Compatible with water-based fluids and phosphate esters
Flexible guide ring configuration
Suitable for insufficient lubrication environments
Easy installation process
Low coefficient of friction
High dimensional stability

Area of Application

Telescopic cylinders

Mobile machinery

Standard industrial cylinders

Cranes

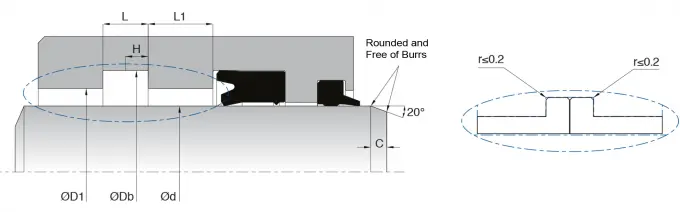

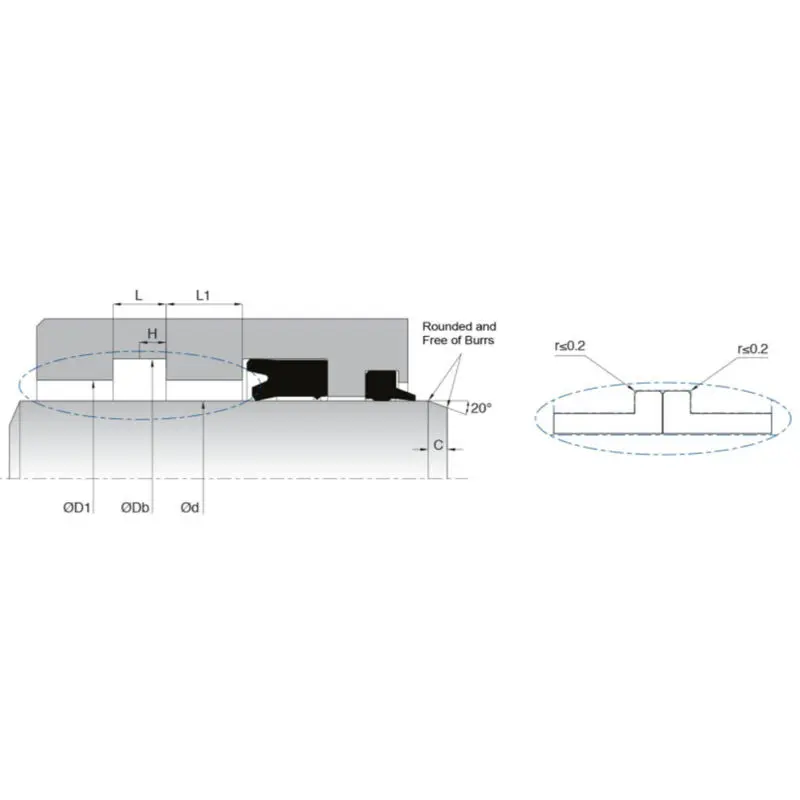

Product Visualization

Technical Specifications

Model	d (f8)	Db (H11)	D1 (H8)	L (+0.25/-0)	L1	H	Material
KL55-045	45	53	50	8	12	4	POM
KL55-061	61	69	65	8	12	4	POM
KL55-075	75	85	80	10	20	5	POM
KL55-075/1	75	85	80	10	25	5	POM
KL55-075/2	75	85	81	10	25	5	POM
KL55-095	95	105	100	10	20	5	POM
KL55-095/1	95	105	100	10	25	5	POM
KL55-095/2	95	105	101	10	25	5	POM
KL55-115	115	125	120	10	20	5	POM
KL55-115/1	115	125	120	10	25	5	POM
KL55-115/2	115	125	121	10	25	5	POM
KL55-135	135	145	140	10	20	5	POM
KL55-135/1	135	145	140	10	25	5	POM
KL55-135/2	135	145	141	10	25	5	POM
KL55-160	160	170	165	10	20	5	POM
KL55-160/1	160	170	166	10	25	5	POM
KL55-185	185	195	191	10	25	5	POM
KL55-212	212	222	218	10	25	5	POM
KL55-215	215	225	221	10	25	5	POM

Frequently Asked Questions (FAQ)

What is the primary material of the KL55 guide ring?

The KL55 guide ring is made from high-quality Polyoxymethylene (POM), known for its high dimensional stability and low coefficient of friction.

Which applications are best suited for this guide ring?

It is specifically designed for telescopic cylinders, mobile machinery, cranes, and standard industrial cylinders.

Can the KL55 guide ring handle high temperatures?

Yes, it is designed to operate effectively in a broad range of temperatures, specifically from -40°C up to +100°C.

Is this guide ring compatible with water-based fluids?

Yes, the KL55 is compatible with a wide range of fluids, including water-based fluids and phosphate esters.

What is the delivery time for bulk orders?

Our standard delivery time is 7-15 working days, depending on the quantity and specific requirements.

How does the "L" form benefit installation?

The "L" form configuration allows for a flexible guide ring setup and easy installation, even in systems where lubrication might be insufficient.
