Low Swelling Hydraulic Guide Ring

Presses Hydraulic Guide Ring

Kelong Guiding Elements

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KLPB

Send Inquiry

Product Description

Product Details

Name: Low Swelling Hydraulic Guide Ring
Material: Synthetic Fiber, Polyester Resin
Temperature: -40 to +120 °C
Sliding Speed: Max 1.0 M/s
Style: Hydraulic Guiding Elements
Packaging: Opp bags
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Paypal
Supply Ability: 100,000 pcs / month

KLPB Piston-Rod Guide Rings Overview

KLPB piston-rod guide rings are composite guiding elements, produced from synthetic fabric and polyester resin which provides high load carrying capacity designed to be used in rod and piston applications in hydraulic systems.

Key Advantages

⚙️ Low coefficient of friction
🏋️ High Load bearing capacity
🌡️ High form stability at operating temperatures
💧 Low swelling
📏 Wide range of dimensions

Area of Application

🚜Mobile machinery
⛏️Mining industry
🏗️Excavators
🚢Marine hydraulics
🏭Presses
🦾Heavy duty cylinders

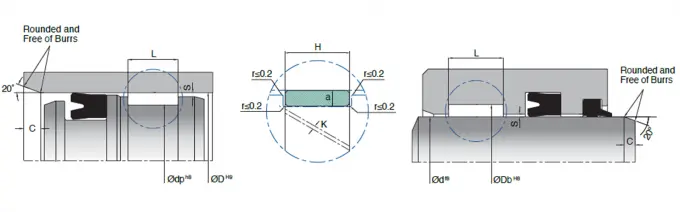

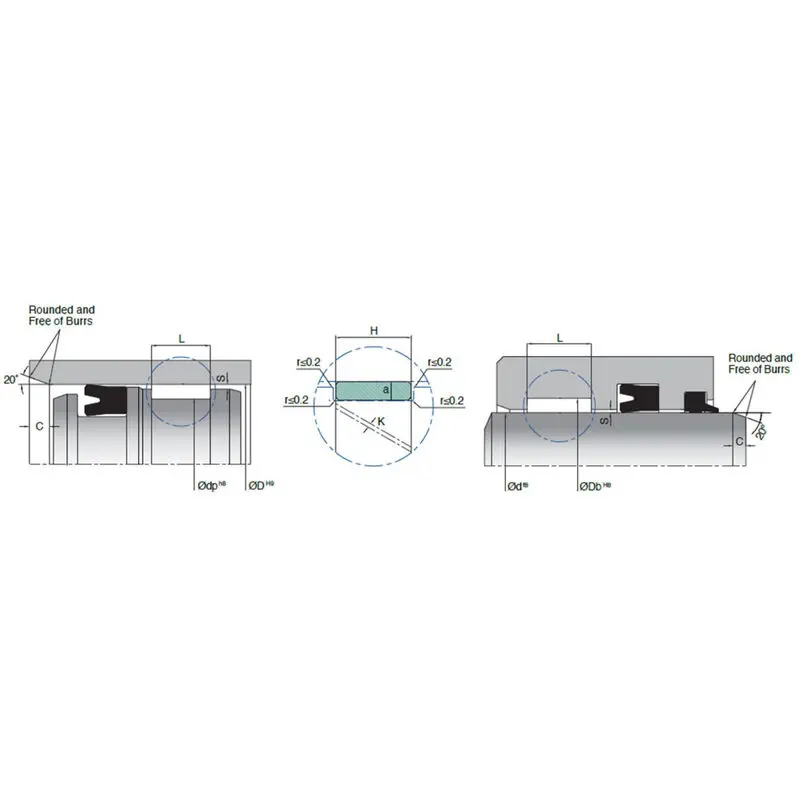

Low Swelling Hydraulic Guide Ring Composite Guiding Elements

Dimensions & Specifications

Model Name a (mm) L (+0.2/-0) H (mm) Material
KLPB-1.5X41.543.8POLYESTER RESIN
KLPB-2X102109.8POLYESTER RESIN
KLPB-2X1521514.8POLYESTER RESIN
KLPB-2X2022019.8POLYESTER RESIN
KLPB-2X2522524.5POLYESTER RESIN
KLPB-2.5X5.62.55.65.4POLYESTER RESIN
KLPB-2.5X6.32.56.36.1POLYESTER RESIN
KLPB-2.5X9.72.59.79.5POLYESTER RESIN
KLPB-2.5X102.5109.8POLYESTER RESIN
KLPB-2.5X152.51514.8POLYESTER RESIN
KLPB-2.5X202.52019.8POLYESTER RESIN
KLPB-2.5X252.52524.5POLYESTER RESIN
KLPB-2.5X302.53029.5POLYESTER RESIN
KLPB-3X9.739.79.5POLYESTER RESIN
KLPB-3X1531514.8POLYESTER RESIN
KLPB-3X2032019.8POLYESTER RESIN
KLPB-3X2532524.5POLYESTER RESIN
KLPB-3X3033029.5POLYESTER RESIN
KLPB-4X9.749.79.5POLYESTER RESIN
KLPB-4X104109.8POLYESTER RESIN
KLPB-4X1541514.8POLYESTER RESIN
KLPB-4X2042019.8POLYESTER RESIN
KLPB-4X2542524.5POLYESTER RESIN
KLPB-4X3043029.5POLYESTER RESIN
KLPB-4X4044039.5POLYESTER RESIN
KLPB-4X5045049.5POLYESTER RESIN

Frequently Asked Questions

What materials are used for KLPB guide rings?
These guide rings are manufactured from a high-quality blend of synthetic fabric and polyester resin to ensure maximum load capacity and durability.
What is the operating temperature range?
The KLPB hydraulic guide rings are designed to operate efficiently within a temperature range of -40°C to +120°C.
Why is "Low Swelling" important for guide rings?
Low swelling ensures that the guide ring maintains its dimensional stability even when exposed to hydraulic fluids, preventing friction increase or mechanical failure.
In which machinery are these guide rings used?
They are widely used in heavy-duty applications including excavators, mining equipment, marine hydraulics, and industrial presses.
What are the shipping and lead time details?
The typical delivery time is 7-15 working days. Products are securely packed in Opp bags for shipment.
What is your monthly supply capacity?
We have a robust supply ability of up to 100,000 pieces per month to meet large-scale industrial demands.
