NBR Pneumatic Piston Seal

Pneumatic Piston Seal Double Acting

Double Acting Piston Seal Pneumatic

Place of Origin:

China

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL66

Send Inquiry

Product Description

Product Technical Details
Style Double Acting Piston Seal Pneumatic
Material NBR
Max Pressure 16 Bar
Temperature Range -30/+105 °C
Sliding Speed (max) 10 M/s
Application Pneumatic Cylinders
Payment & Shipping Terms
Packaging Details Opp bags
Delivery Time 7-15 work days
Payment Terms L/C, T/T, Paypal
Supply Ability 100,000 pcs /months

KL66 Pneumatic Piston Seal

The KL66 pneumatic piston seal is a double acting piston seal formed by vulcanizing the metal part and the elastomer material together with special methods.

Advantages

  • Complete piston head
  • Wide range of dimensions
  • High friction resistance
  • Easy installation
  • Long service life
  • Economical sealing solution

Area of Application

  • Pneumatic Cylinders
KL66 Pneumatic Piston Seal NBR Double Acting

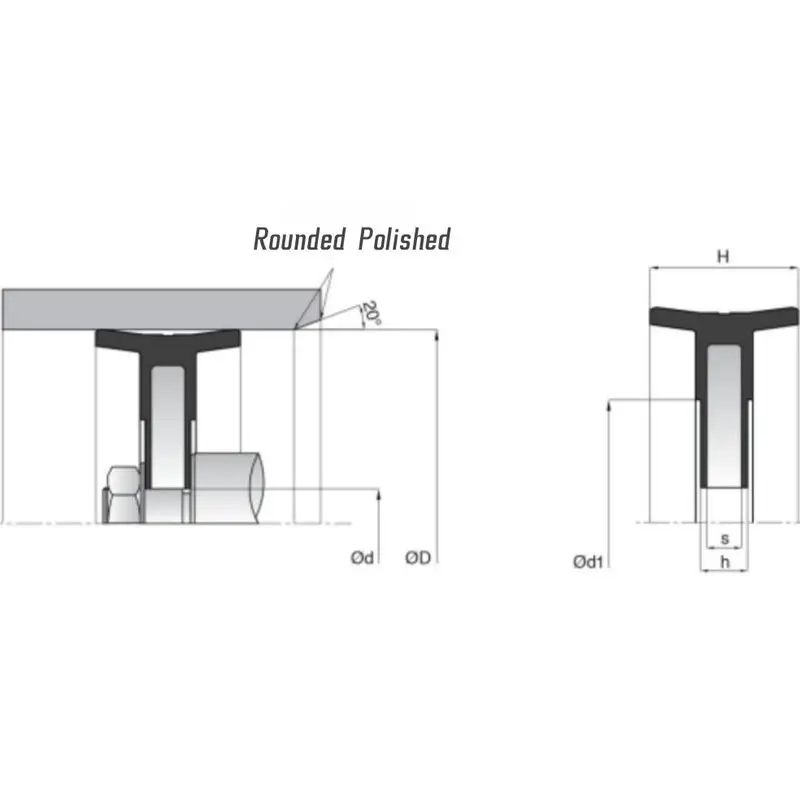

Dimension Specifications
Model D (H11) d (h9) H d1 s h Material
KL66-020205.2812.211.4NBR
KL66-0252581214.534NBR
KL66-025/225.46.3512.79.42.53.5NBR
KL66-0262681215.534NBR
KL66-02828.586.3512.712.582.53.5NBR
KL66-03131.756.3514.2915.752.53.5NBR
KL66-032328151634NBR
KL66-035358151934NBR
KL66-0404010182345NBR
KL66-0505010182945NBR
KL66-06060122236.845NBR
KL66-06363122240.556NBR
KL66-0808016255556.5NBR
KL66-10010016257556.5NBR
KL66-125125203090810NBR
KL66-16016027311151012NBR
KL66-20020027351501215NBR
KL66-25025030352001216.5NBR
KL66-40040040503202023NBR
Frequently Asked Questions
What is the construction of the KL66 pneumatic piston seal?
The KL66 is a double-acting piston seal created by vulcanizing a metal component and elastomer material (NBR) together using specialized manufacturing methods.
What are the primary advantages of using this seal?
Key benefits include high friction resistance, easy installation, long service life, and it serves as an economical sealing solution for complete piston heads.
What is the maximum pressure and speed rating?
The seal can handle a maximum pressure of 16 Bar and a maximum sliding speed of up to 10 meters per second.
What temperature range can the NBR material withstand?
The NBR elastomer is designed to operate effectively within a temperature range of -30°C to +105°C.
How long does it take for delivery and what are the payment terms?
Standard delivery time is between 7-15 work days. We accept L/C, T/T, and Paypal as payment methods.
In which applications is the KL66 seal typically used?
This seal is specifically designed for use in pneumatic cylinders across various industrial applications.
