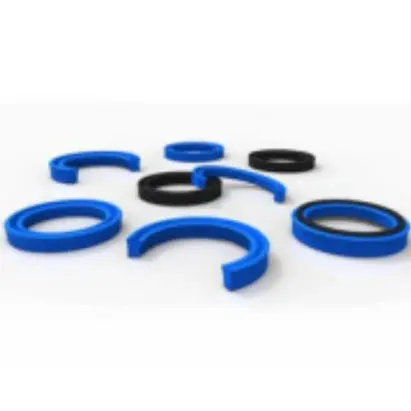

Cheap NBR Pneumatic Piston Seals Double Acting For Short Stroke Pneumatic Cylinders Exporters, Exporter

1 / 5

Cheap NBR Pneumatic Piston Seals Double Acting For Short Stroke Pneumatic Cylinders Exporters, Exporter

NBR Pneumatic Piston Seals

Pneumatic Piston Seals Double Acting

Pneumatic Piston Seal Types

Place of Origin:

CHINA

Brand Name:

KELONG

Certification:

ISO9001 / IRIS

Model Number:

KL70

Send Inquiry

Product Description

Product Specifications

⚙️ Name:

Double Acting Piston Seal

🛠️ Material:

NBR

📉 Pressure (max):

12 Bar

🌡️ Temperature:

-30 / +105 °C

🚀 Sliding Speed:

1.0 M/s

📍 Application:

Short Stroke Pneumatic Cylinders

Payment & Shipping Terms

📦 MOQ:

100 Pieces

🎁 Packaging:

Customizable packaging

📅 Delivery Time:

15 Days

💳 Payment Terms:

L/C, T/T

🏭 Supply Ability:

100,000 pcs / month

Product Overview

KL70 pneumatic piston seal is a double acting piston seal designed to be used in small grooves.

Main Advantages

✓ Easy installation

✓ Low friction

✓ Special design for superior sealing

✓ Double acting functionality

✓ Optimized for small housing dimensions

Area of Application

◈ Short stroke pneumatic cylinders

◈ Industrial Valves

◈ Cylinders according to ISO and CETOP standards

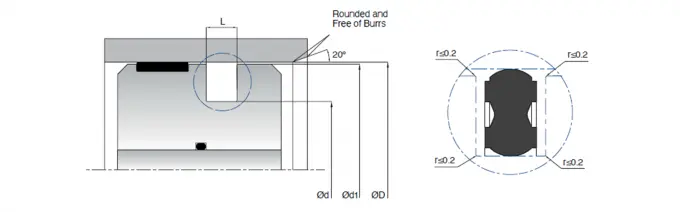

NBR Pneumatic Piston Seals Double Acting

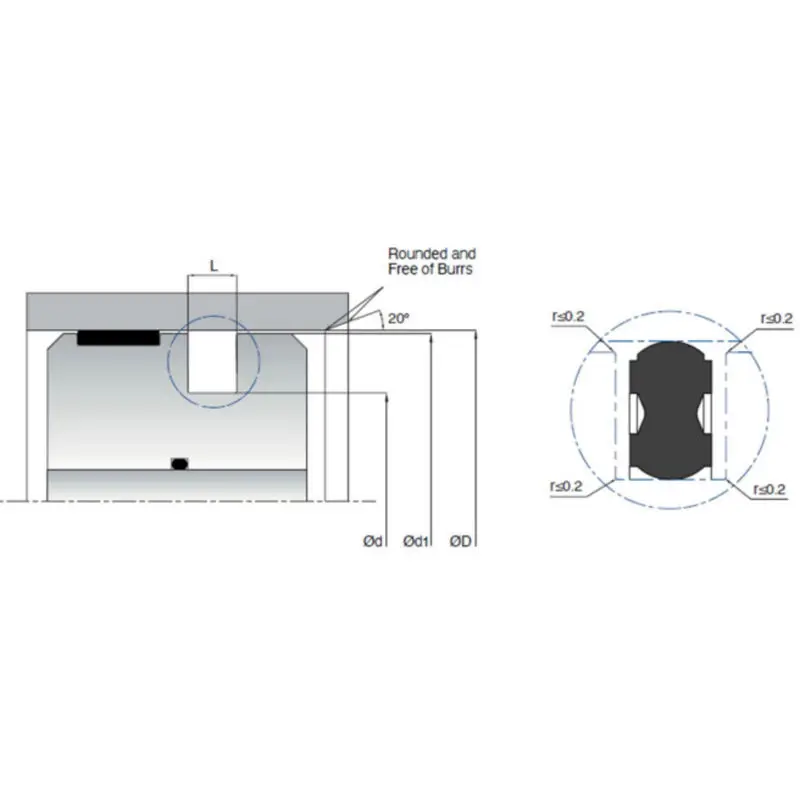

Technical Dimensions

Model	D (H11)	d (h9)	L (+0.2/-0)	d1 (±0.1)	Material
KL70-008	8	4	1.6	7.7	NBR
KL70-010	10	5.4	1.8	9.7	NBR
KL70-012	12	7.4	1.8	11.7	NBR
KL70-016	16	11.4	1.8	15.7	NBR
KL70-018	18	13.4	1.8	17.7	NBR
KL70-020	20	14	2.4	19.5	NBR
KL70-025	25	17	3.2	24.5	NBR
KL70-027	27	19	3.2	26.5	NBR
KL70-032	32	24	3.2	31.5	NBR
KL70-040	40	32	3.2	39.5	NBR
KL70-050	50	40	4	49.5	NBR
KL70-060	60	48	4	59.5	NBR
KL70-063	63	53	4	62.4	NBR
KL70-080	80	65	6	79.4	NBR
KL70-100	100	85	6	99.4	NBR
KL70-125	125	110	6	124.3	NBR
KL70-140	140	125	6	139.3	NBR
KL70-150	150	135	6	149.3	NBR
KL70-160	160	145	6	159.3	NBR
KL70-180	180	160	8	179.3	NBR
KL70-200	200	180	8	199	NBR
KL70-250	250	230	8	249	NBR
KL70-300	300	280	8	299	NBR

Frequently Asked Questions

Q1: What is the main material of the KL70 piston seal?

The KL70 double acting piston seal is primarily made of high-quality NBR (Nitrile Rubber), suitable for a temperature range of -30 to +105 °C.

Q2: Can these seals be used in standard ISO cylinders?

Yes, KL70 seals are specifically recommended for use in cylinders that comply with ISO and CETOP standards.

Q3: What makes the KL70 suitable for small grooves?

The KL70 is engineered with a compact profile and special design that allows it to maintain effective sealing performance even in very small housing dimensions.

Q4: What is the maximum pressure and speed for this seal?

The KL70 seal can handle a maximum pressure of 12 Bar and supports sliding speeds up to 1.0 meter per second.

Q5: Is customization available for packaging and orders?

Yes, we offer customizable packaging details to meet your specific requirements. The minimum order quantity is 100 pieces.

Q6: What is your monthly supply capacity for these seals?

We have a robust production capability with a supply ability of approximately 100,000 pieces per month.
