Cheap NBR Piston Rod Seals Hydraulic Elastomer With Cut / Symmetrical Lips Structure Exporter, Product

1 / 5

Cheap NBR Piston Rod Seals Hydraulic Elastomer With Cut / Symmetrical Lips Structure Exporter, Product

NBR Piston Rod Seals

Piston Rod Seals Hydraulic

Elastomer Lip Seal

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL22

Send Inquiry

Product Description

★ Product Details

Style:

Hydraulic Piston-Rod Seals

Material:

NBR

Pressure (max):

150 Bar

Temperature:

-30/+105 °C

Sliding Speed:

0.5 M/s

📦 Payment & Shipping

Packaging:

Opp bag

Delivery Time:

7-15 work days

Payment Terms:

L/C, T/T, Paypal

Supply Ability:

100,000 pcs /months

Piston-Rod Seal Made Elastomer Material Single Acting Sealing Element With Cut And Symmetrical Lips Structure.

KL22 piston-rod seal is an elastomer material single acting sealing element which is able to work both at piston and rod applications thanks to straight cut and symetrical lips structure. Recommend to use with backup rings above 100 bars.

Advantages

Wide range of dimensions
Economical sealing solution
Good dynamic and static sealing
Good locking feature

Area of Application

Forklifts
Injection moulding machines
Agricultural machinery
Standard hydraulic cylinders

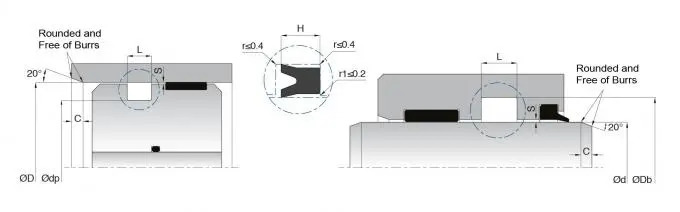

NBR Piston Rod Seals Hydraulic Elastomer

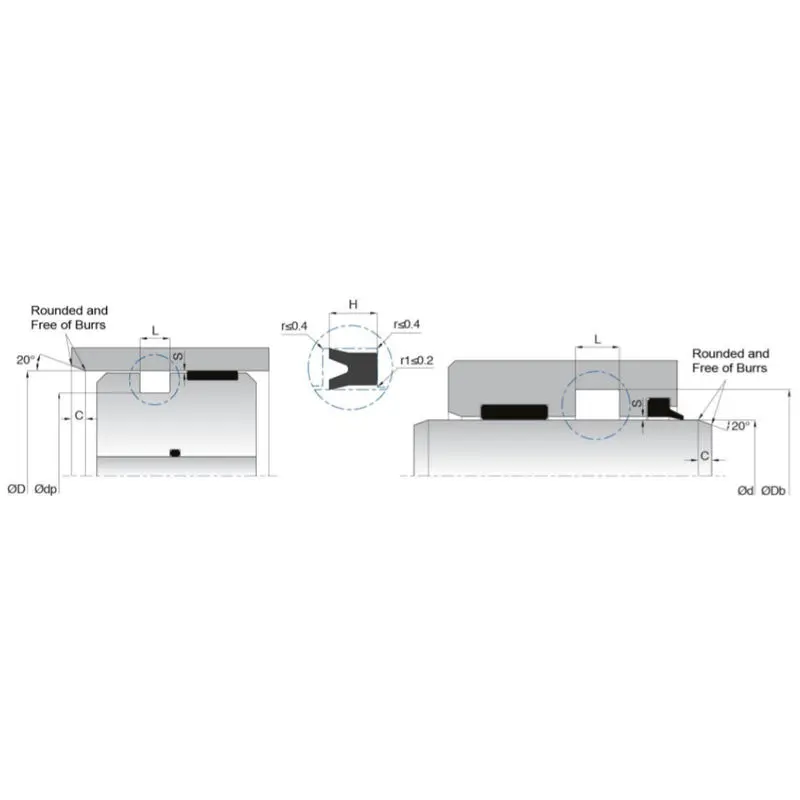

Technical Specifications & Dimensions

Part No.	d(f7) dp(h11)	Db(H11) D(H11)	L (+0.2/-0)	H	C	Material
KL22-003	3	7	6	5	3	NB
KL22-004	4	10	4.5	4	3	NB
KL22-005	5	12	6	5	3	NB
KL22-006	6	12	4.5	4	3	NB
KL22-006/1	6	15	6	5	4	NB
KL22-006/3	6	16	7	6	4.5	NB
KL22-007	7	15	6	5	4	NB
KL22-007/1	7.94	12.7	4	3.5	2	NB
KL22-008	8	14	4.5	4	3	NB
KL22-008/1	8	14.2	4	3.5	3	NB
KL22-008/2	8	16	4	3.5	4	NB
KL22-008/3	8	16	4.7	4.2	4	NB
KL22-008/4	8	12	4.5	4	2	NB
KL22-010	10	14	2.5	2	2	NB
KL22-010/1	10	16	4.5	4	3	NB
KL22-010/3	10	18	6	5	4	NB
KL22-010/4	10	22	7	6	5	NB
KL22-010/5	10	19	4	3.5	4	NB
KL22-010/6	10	20	4	3.5	4.5	NB
KL22-010/7	10	23	5	4.5	5	NB
KL22-012	12	18	4.5	4	3	NB
KL22-012/1	12	20	6.5	5.5	4	NB
KL22-012/3	12	22	6	5	4.5	NB
KL22-012/4	12	24	7	6	5	NB
KL22-012/5	12.5	23	4	3.5	4.5	NB
KL22-012/6	12.5	20	5	4.5	4	NB
KL22-012/7	12.5	20.3	4	3.5	4	NB
KL22-014	14	20	4.5	4	3	NB
KL22-014/1	14	20	5.3	4.8	3	NB
KL22-014/2	14	25	4	3.5	4.5	NB
KL22-015	15	22	4.5	4	3	NB
KL22-015/1	15	24	8	7	4	NB
KL22-015/2	15	25	7	6	4.5	NB
KL22-016	16	22	4.5	4	3	NB
KL22-016/1	16	22	7	6	3	NB
KL22-016/2	16	25	6	5	4	NB
KL22-016/3	16	26	6	5	4.5	NB
KL22-018	18	26	4.5	4	4	NB
KL22-018/1	18	24	4.5	4	3	NB
KL22-018/2	18	25	4.5	4	3	NB
KL22-020	20	28	4.5	4	4	NB
KL22-020/1	20	28	9	8	4	NB
KL22-020/3	20	30	9	8	4.5	NB
KL22-020/5	20	35	11	10	5.5	NB
KL22-020/6	20	32	8.5	7.5	5	NB
KL22-022	22	30	7	6	4	NB
KL22-022/1	22	35	8	7	5	NB
KL22-022/2	22	32	6	5	4.5	NB
KL22-022/3	22	28	6	5	3	NB
KL22-024	24	30	6	5	3	NB
KL22-024/1	24	32	4.5	4	4	NB
KL22-024/2	24	34	6	5	4.5	NB
KL22-025	25	33	8	7	4	NB
KL22-025/1	25	40	7	6	5.5	NB
KL22-027	27	36	7	6	4	NB
KL22-028	28	38	6	5	4.5	NB
KL22-028/2	28	52	11	10	7	NB
KL22-029	29	35	7	6	3	NB
KL22-030	30	40	10	9	4.5	NB
KL22-030/1	30	45	11	10	5.5	NB
KL22-030/2	30	55	13	12	7	NB
KL22-032	32	42	9	8	4.5	NB
KL22-032/1	32	40	8	7	4	NB
KL22-032/2	32	48	9	8	5.5	NB
KL22-032/3	32	40	4.5	4	4.5	NB
KL22-033	33	42	8	7	4	NB
KL22-035	35	45	6	5	4.5	NB
KL22-035/1	35	45	7	6	4.5	NB
KL22-035/2	35	42	6.3	5.3	4.5	NB
KL22-040	40	50	6	5	4.5	NB
KL22-040/1	40	60	11	10	7	NB
KL22-040/2	40	48	9	8	4	NB
KL22-046	46	70	13	12	7	NB
KL22-048	48	60	7	6	5	NB
KL22-048/1	48	60	8	7	5	NB
KL22-050	50	80	16	15	8	NB
KL22-050/1	50	75	13	12	7	NB
KL22-055	55	70	11	10	5.5	NB
KL22-058	58	70	7	6	5	NB
KL22-060	60	100	21	20	10	NB
KL22-061	61	73	7	6	5	NB
KL22-062	62	86	13	12	7	NB
KL22-064	64	80	9	8	5.5	NB
KL22-072	72	84	9	8	5	NB
KL22-072/1	72	84	7	6	5	NB
KL22-072/2	72	82	6	5	4.5	NB
KL22-075	75	100	13	12	7	NB
KL22-075/1	75	90	8.5	7.5	5.5	NB
KL22-080	80	100	11	10	7	NB
KL22-082	82.55	95.25	10.52	9.52	5.5	NB
KL22-130	130	150	11	10	7	NB
KL22-135	135	150	11	10	5.5	NB
KL22-220	220	250	16	15	7.5	NB
KL22-230	230	270	21	20	10	NB
KL22-290	290	330	21	20	10	NB

Frequently Asked Questions

1. What applications are KL22 hydraulic seals suitable for?

The KL22 seals are ideal for forklifts, injection moulding machines, agricultural machinery, and standard hydraulic cylinders.

2. Can the KL22 seal be used for both piston and rod applications?

Yes, thanks to its straight cut and symmetrical lip structure, it functions effectively as both a piston and a rod sealing element.

3. What is the maximum pressure limit for these NBR seals?

The maximum operating pressure is 150 Bar. For applications exceeding 100 Bar, it is recommended to use them with backup rings.

4. What is the temperature range for the KL22 seal?

These seals are designed to operate efficiently within a temperature range of -30°C to +105°C.

5. How long does it take for order delivery?

Standard delivery time ranges from 7 to 15 working days, depending on the order volume and specific requirements.

6. What materials are used in the KL22 sealing elements?

The KL22 series is primarily manufactured using high-quality NBR (Nitrile Butadiene Rubber) elastomer material.
