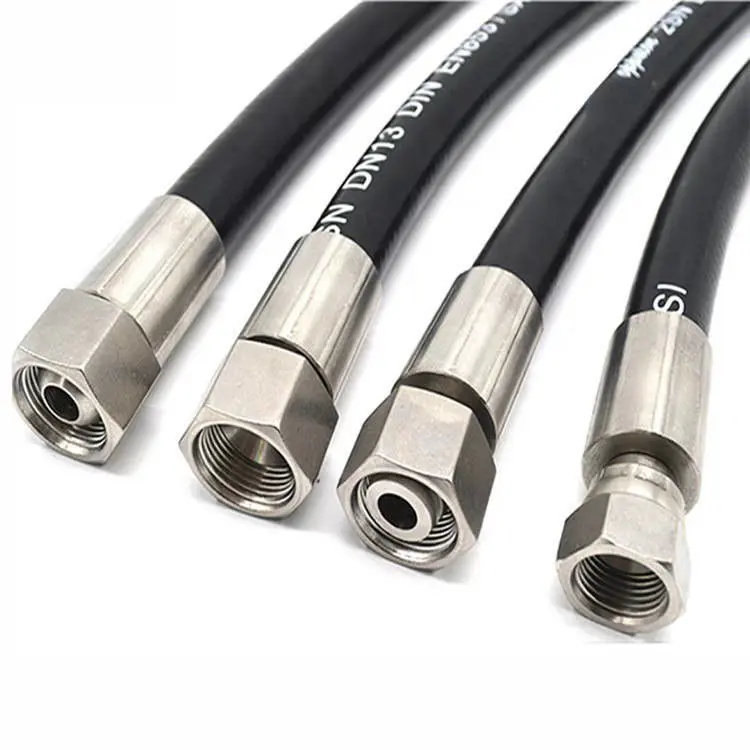

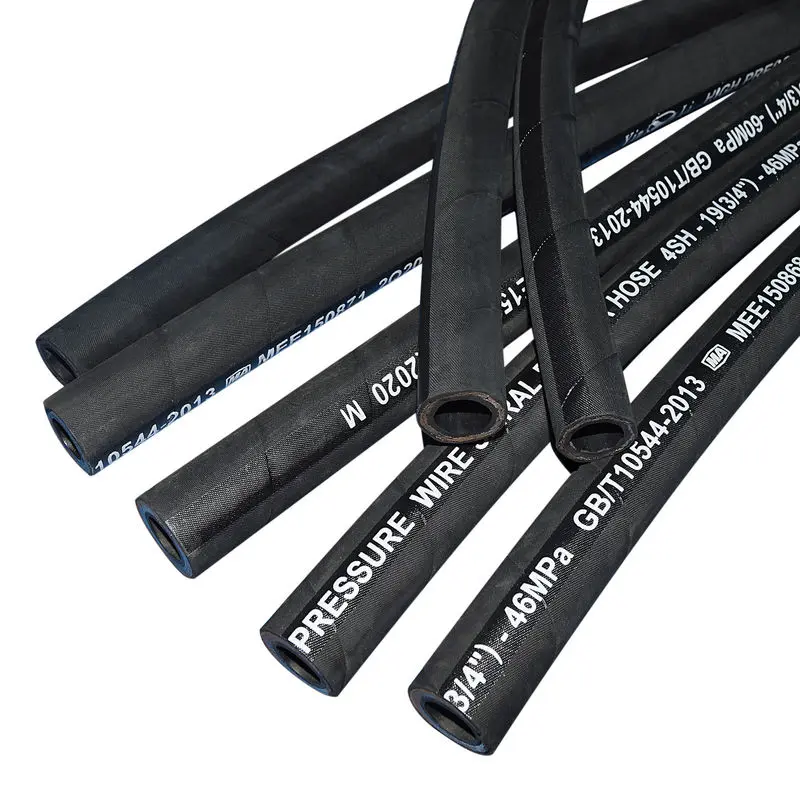

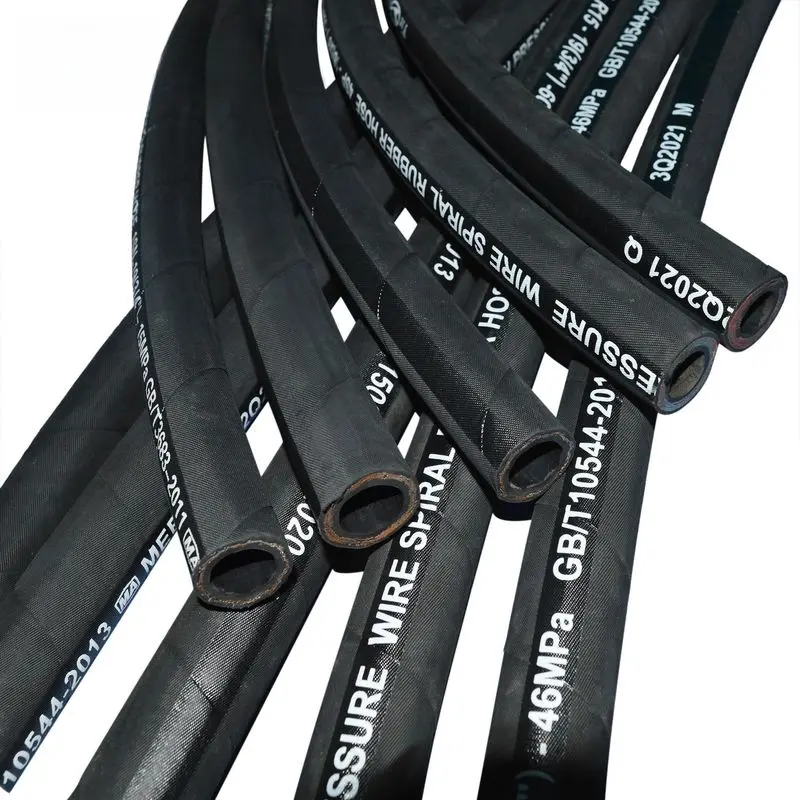

This hose is very popular in high pressure working conditions and it is suitable for petroleum-based hydraulic oils.
Working pressure: 42 MPa
Proof pressure: 84 MPa
Min burst pressure: 168 MPa

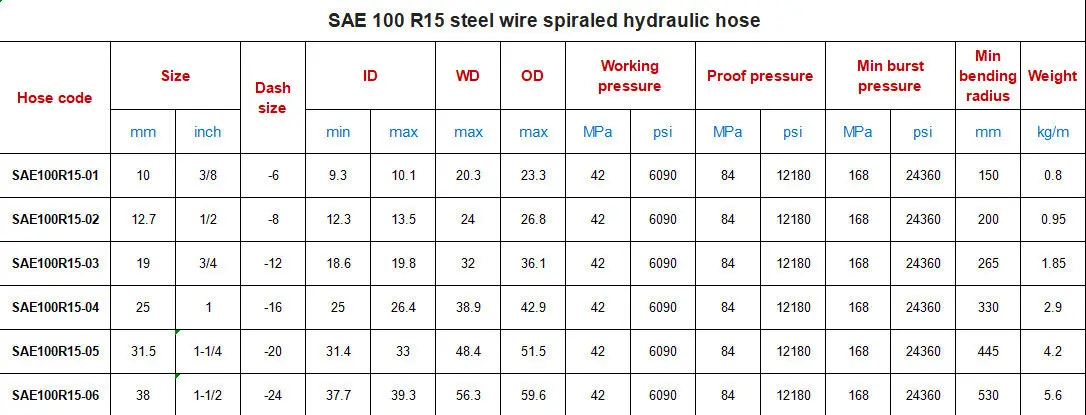

| Hose Code | Size | Dash Size | ID (mm) | WD | OD | Working Pressure | Proof Pressure | Min Burst Pressure | Min Bend Radius | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | min | max | max | max | MPa | psi | MPa | psi | MPa | psi | mm | kg/m | ||
| SAE100R15-01 | 10 | 3/8 | 6 | 9.3 | 10.1 | 20.3 | 23.3 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 150 | 0.8 |
| SAE100R15-02 | 12.7 | 1/2 | -8 | 12.3 | 13.5 | 24 | 26.8 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 200 | 0.95 |
| SAE100R15-03 | 19 | 3/4 | -12 | 18.6 | 19.8 | 32 | 36.1 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 265 | 1.85 |
| SAE100R15-04 | 25 | 1 | -16 | 25 | 26.4 | 38.9 | 42.9 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 330 | 2.9 |
| SAE100R15-05 | 31.5 | 1-1/4 | -20 | 31.4 | 33 | 48.4 | 51.5 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 445 | 4.2 |
| SAE100R15-06 | 38 | 1-1/2 | -24 | 37.7 | 39.3 | 56.3 | 59.6 | 42 | 6090 | 84 | 12180 | 168 | 24360 | 530 | 5.6 |
