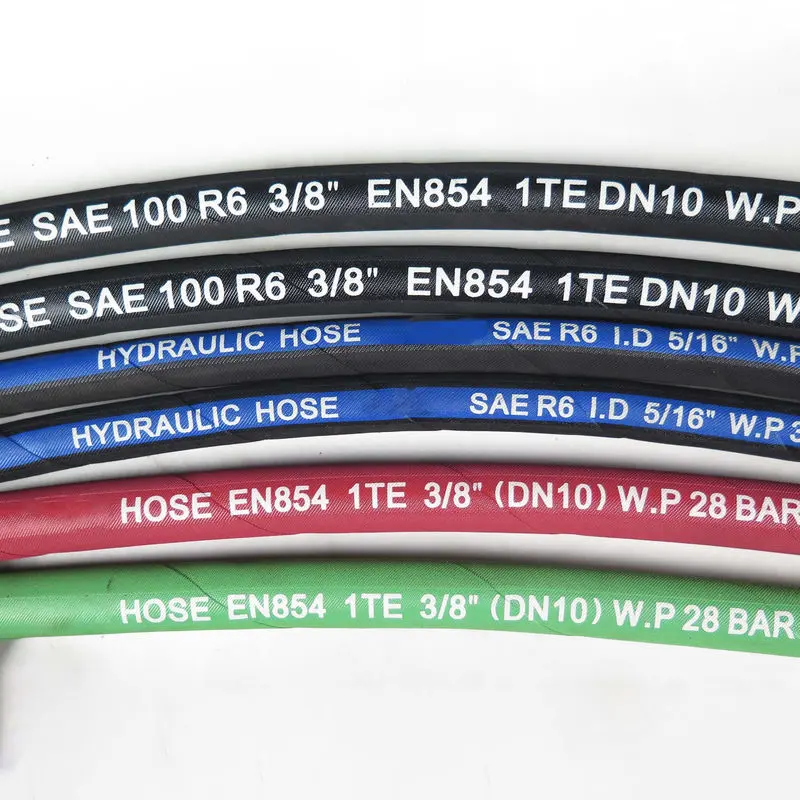

Wire Braid Hydraulic Hose Meets SAE 100 R6

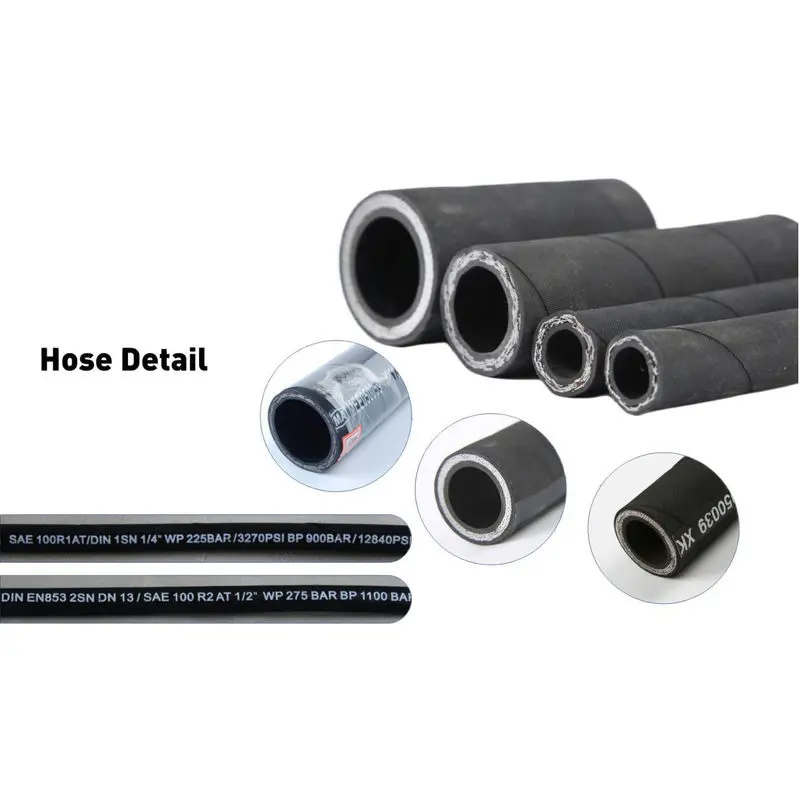

This high-performance hose is engineered with three primary components to ensure maximum reliability in hydraulic systems:
Operating effectively within a temperature range of -40°C to 100°C (up to 120°C intermittent), this hose is perfectly suited for delivering water-based, petroleum-based, and biodegradable hydraulic fluids.
| Hose Code | Size | Dash Size | ID (mm) | OD Max (mm) | Working Pressure | Min Burst Pressure | Min Bending (mm) | Weight (kg/m) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | min | max | MPa | psi | MPa | psi | |||||
| SAE100R6-01 | 5 | 3/16 | -3 | 4.2 | 5.4 | 10.3 | 3.5 | 510 | 14 | 2030 | 50 | 0.1 |
| SAE100R6-02 | 6.3 | 1/4 | 4 | 5.6 | 7.2 | 11.9 | 2.8 | 410 | 11.2 | 1620 | 65 | 0.13 |
| SAE100R6-03 | 8 | 5/16 | 5 | 7.2 | 8.8 | 13.5 | 2.8 | 410 | 11.2 | 1620 | 75 | 0.15 |
| SAE100R6-04 | 10 | 3/8 | 6 | 8.7 | 10.3 | 15.1 | 2.8 | 410 | 11.2 | 1620 | 75 | 0.18 |
| SAE100R6-05 | 12.5 | 1/2 | 8 | 11.9 | 13.5 | 19 | 2.8 | 410 | 11.2 | 1620 | 100 | 0.26 |
| SAE100R6-06 | 16 | 5/8 | -10 | 15.1 | 16.7 | 22.2 | 2.4 | 350 | 9.8 | 1420 | 125 | 0.34 |
| SAE100R6-07 | 19 | 3/4 | -12 | 18.3 | 19.9 | 25.4 | 2.1 | 310 | 8.4 | 1220 | 150 | 0.4 |
