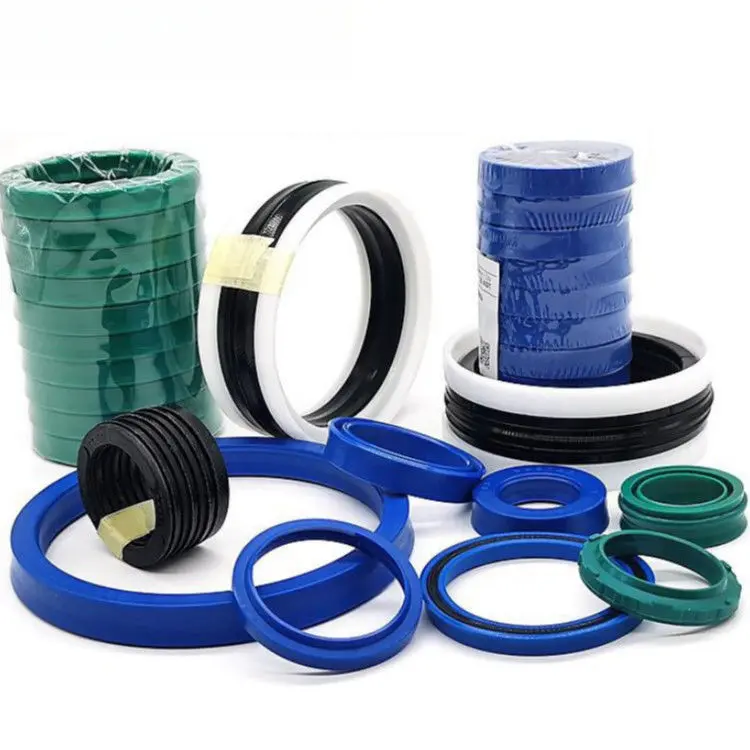

Single Acting Piston Seal Set With Thermoplastic Header Ring, Fabric Elastomer Intermediate Ring And Backup Ring.

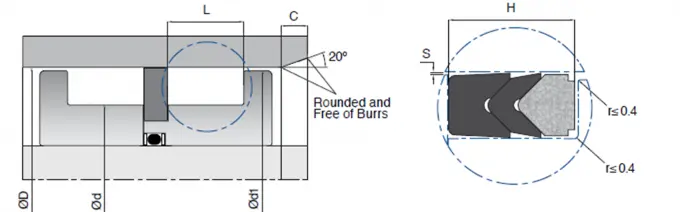

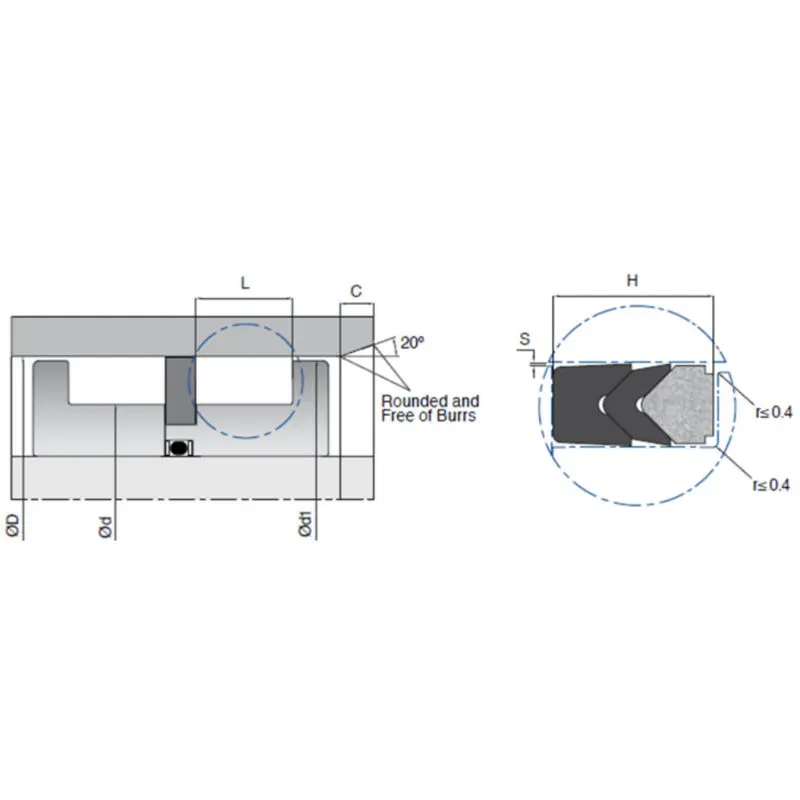

The KL26 single acting piston seal set consists of a thermoplastic header ring, a fabric elastomer intermediate ring, and a fabric elastomer backup ring. This combination ensures stability and sealing integrity under high-pressure conditions.
| Model | D (H9) | d (h11) | L (+0.2/-0) | E | H | d1 | C | Material |
|---|---|---|---|---|---|---|---|---|
| KL26-020 | 20 | 10 | 9.3 | 2.5 | 8.9 | 19.5 | 6 | FB |
| KL26-022 | 22 | 12 | 9.3 | 2.5 | 8.9 | 21.5 | 6 | FB |
| KL26-025 | 25 | 15 | 9.3 | 2.5 | 8.9 | 24.5 | 6 | FB |
| KL26-028 | 28 | 18 | 9.3 | 2.5 | 8.9 | 27.5 | 6 | FB |
| KL26-030 | 30 | 20 | 9.3 | 2.5 | 8.9 | 29.5 | 6 | FB |
| KL26-032 | 32 | 20 | 10.9 | 2.75 | 10.4 | 31 | 6 | FB |
| KL26-035 | 35 | 23 | 10.9 | 2.75 | 10.4 | 34 | 6 | FB |
| KL26-040 | 40 | 25 | 11.5 | 3 | 11 | 39 | 6 | FB |
| KL26-050 | 50 | 35 | 11.5 | 3 | 11 | 49 | 6 | FB |
| KL26-060 | 60 | 45 | 11.5 | 3 | 11 | 59 | 6 | FB |
| KL26-080 | 80 | 60 | 15.2 | 5 | 14.6 | 79 | 7 | FB |
| KL26-100 | 100 | 80 | 21.2 | 5 | 20.6 | 99 | 7 | FB |
| KL26-125 | 125 | 100 | 25.8 | 6 | 25 | 124 | 8 | FB |
| KL26-150 | 150 | 120 | 29 | 7.5 | 28 | 148.5 | 8 | FB |
| KL26-200 | 200 | 170 | 33.5 | 7.5 | 32.5 | 198.5 | 8 | FB |
| KL26-300 | 300 | 270 | 33.5 | 7.5 | 32.5 | 298.5 | 8 | FB |
