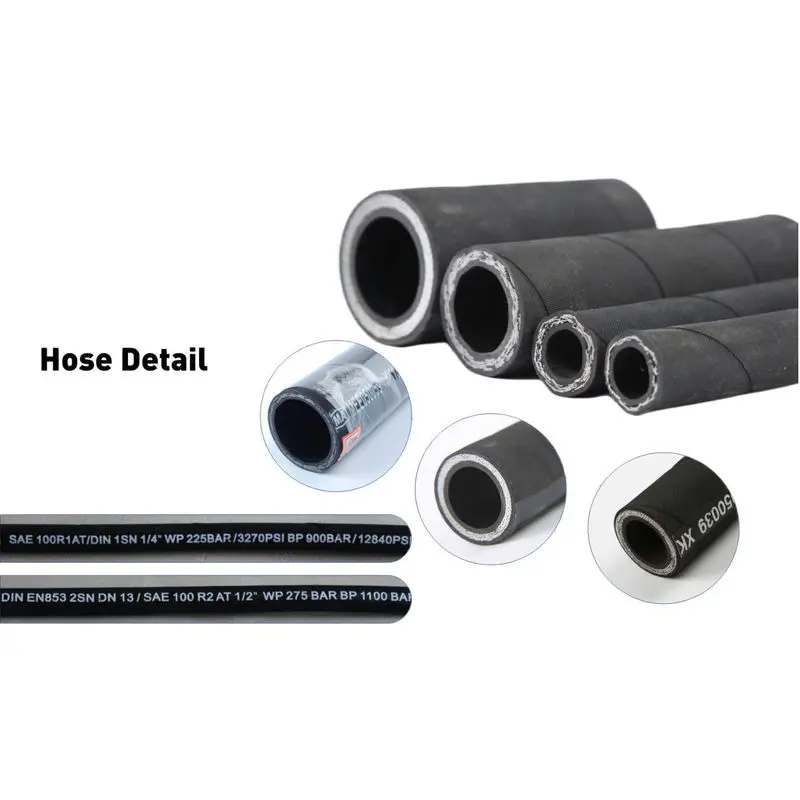

This small 1 and 2 ply steel wire reinforced rubber hydraulic hose is engineered for high-performance oil resistance and durability. The construction features a synthetic rubber inner layer, high tensile steel braided reinforcement, and a weather-resistant synthetic rubber cover.
| Hose Code | Size | Dash Size | ID (mm) | WD (max) | OD (max) | Working Pressure | Burst Pressure | Min Bend Radius | Weight (kg/m) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | min | max | MPa | psi | MPa | psi | inch | mm | |||||
| KS1717-04 | 6 | 1/4 | -6 | 6.2 | 7.0 | 11.0 | 13 | 21 | 3045 | 84 | 12180 | 1.97 | 50 | 0.169 |
| KS1717-05 | 8.0 | 5/16 | -8 | 7.7 | 8.5 | 13.0 | 15 | 21 | 3045 | 84 | 12180 | 2.17 | 55 | 0.210 |
| KS1717-06 | 10 | 3/8 | -12 | 9.3 | 10.1 | 15.0 | 17.0 | 21 | 3045 | 84 | 12180 | 2.56 | 65 | 0.254 |
| KS1717-08 | 13 | 1/2 | -16 | 12 | 13.5 | 18.8 | 21.1 | 21 | 3045 | 84 | 12180 | 3.54 | 90 | 0.466 |
| KS1717-10 | 16.0 | 5/8 | -20 | 15.5 | 17 | 23.6 | 25.9 | 21 | 3045 | 84 | 12180 | 3.94 | 105 | 0.586 |
| KS1717-12 | 19 | 3/4 | 24 | 18.6 | 19.8 | 27.7 | 30 | 21 | 3045 | 84 | 12180 | 4.72 | 125 | 0.749 |
| KS1717-16 | 25 | 1 | -32 | 25.0 | 26.4 | 35.6 | 38.6 | 21 | 3045 | 84 | 12180 | 5.91 | 150 | 1.457 |
