Cheap Water Resistant Single Acting Rod Seals Low Swelling With Adjustable Housing Quotes, Companies

1 / 5

Cheap Water Resistant Single Acting Rod Seals Low Swelling With Adjustable Housing Quotes, Companies

Single Acting Rod Seals Low Swelling

Water Resistant Single Acting Rod Seals

Place of Origin:

SHAANXI

Brand Name:

KELONG

Model Number:

KL108

Send Inquiry

Product Description

Product Specifications

⚙ Name: Single Acting Rod Seals

🧪 Material: FABRIC NBR

⚓ Pressure (max): 250 Bar

🌡 Temperature: -30/+80 °C

⚡ Sliding Speed: 2.0 M/s

Payment & Shipping Terms

📦 Min Order: 100

🚚 Delivery Time: 15 Days

💰 Payment: L/C, T/T

🏭 Supply Ability: 100,000 pcs / month

Product Overview

KL108 Chevron rings are single acting rod seals made by water resistant fabric impregnated elastomer, specially designed for water and water-oil mixture. They are high pressure pump seals working at high pressure washers.

The rod seal is designed to ensure that pressurized fluid does not leak out of the system as the rod cycles back and forth (dynamic pressure sealing). The rod seal is the most critical seal on any type of fluid power equipment. A leaking rod seal not only reduces equipment performance, but also causes environmental issues.

Key Advantages

High speeds operation

Water compatibility & low swelling

Long service life

Adjustable housing

High abrasion resistance

Shock load & peak pressure resistance

Low compression set

Area of Application

High Pressure Washers

Water Resistant Single Acting Rod Seals Low Swelling With Adjustable Housing

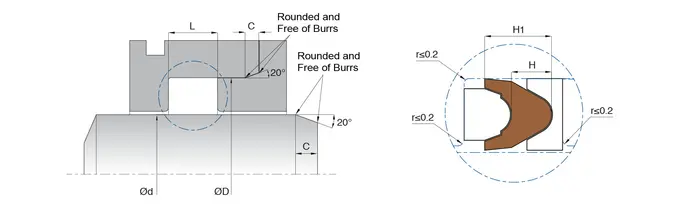

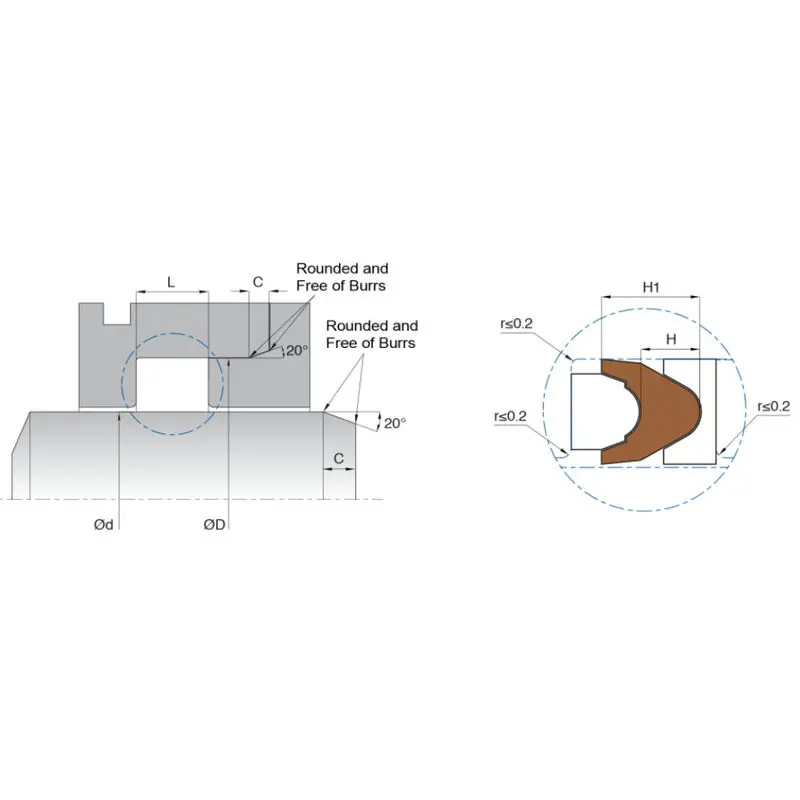

Technical Dimensions

Model No.	d (f7)	D (H9)	H	H1	C	Material
KL108-024	15	24	3	5	6	FABRIC NBR
KL108-025	15	25	3	5	6	FABRIC NBR
KL108-026	18	26	3	5	6	FABRIC NBR
KL108-028	15	28	4	6.5	7	FABRIC NBR
KL108-028/1	18	28	3.5	5.5	6	FABRIC NBR
KL108028/2	18	28	4	6	6	FABRIC NBR
KL108-030	15	30	4.5	7.5	8	FABRIC NBR
KL108-030/1	16	30	4	7	8	FABRIC NBR
KL108-030/2	18	30	3.5	6	7	FABRIC NBR
KL108-030/3	20	30	3.3	5.5	6	FABRIC NBR
KL108-032	18	32	4.6	7.1	8	FABRIC NBR
KL108-032/1	20	32	4.5	6.7	7	FABRIC NBR
KL108-032/2	22	32	3.3	5.7	6	FABRIC NBR
KL108-034	18	34	4	6	8	FABRIC NBR
KL108-034/1	20	34	4.5	7.5	8	FABRIC NBR
KL108-035	20	35	4.5	7.5	8	FABRIC NBR
KL108-035/1	22	35	4.5	7	7	FABRIC NBR
KL108-035/2	24	35	4	6	7	FABRIC NBR
KL108-035/3	25	35	3.3	5.5	6	FABRIC NBR
KL108-037	25	37	3.6	6.7	7	FABRIC NBR
KL108-037/1	20	37	4.5	7.5	9	FABRIC NBR
KL108-038	22	38	3.5	8.5	8	FABRIC NBR
KL108-038/1	25	38	4.6	7	7	FABRIC NBR
KL108-038/2	28	38	4.1	6.1	6	FABRIC NBR
KL108-045	30	45	4.5	7.5	8	FABRIC NBR
KL108-048	36	48	3.5	6	7	FABRIC NBR
KL108-048/1	38	48	3.5	6	6	FABRIC NBR
KL108-050/1	40	50	3.5	6	6	FABRIC NBR
KL108-055	40	55	4.5	7.5	8	FABRIC NBR
KL108-056	36	56	6	10	9	FABRIC NBR
KL108-060	45	60	4.5	7.5	8	FABRIC NBR
KL108-060/1	50	60	3.5	5.5	6	FABRIC NBR
KL108-065	50	65	4.5	7.5	8	FABRIC NBR
KL108-065/1	55	65	3.5	5.5	6	FABRIC NBR
KL108-070	55	70	4.5	7.5	8	FABRIC NBR
KL108-076	60	76	5	8	8	FABRIC NBR
KL108-080	65	80	4.5	7.5	8	FABRIC NBR

Frequently Asked Questions

What is the main application of KL108 Chevron rings?

These seals are specifically designed for high-pressure washers and pumps, providing excellent performance in water and water-oil mixture environments.

What materials are used for these single-acting rod seals?

They are manufactured from high-quality Fabric NBR (water-resistant fabric impregnated elastomer) to ensure durability and abrasion resistance.

Can these seals withstand high pressure and shock loads?

Yes, they are designed to handle maximum pressures up to 250 Bar and are insensible to shock loads and sudden pressure peaks.

What is the operating temperature range for KL108 seals?

The seals work efficiently within a temperature range of -30°C to +80°C.

Is the packaging for these seals customizable?

Yes, packaging details can be fully customized according to specific customer needs and requirements.

Why is a rod seal considered critical for fluid power equipment?

Rod seals prevent pressurized fluid from leaking out of the system during dynamic cycles. A reliable seal is essential to maintain equipment performance and prevent environmental contamination.
