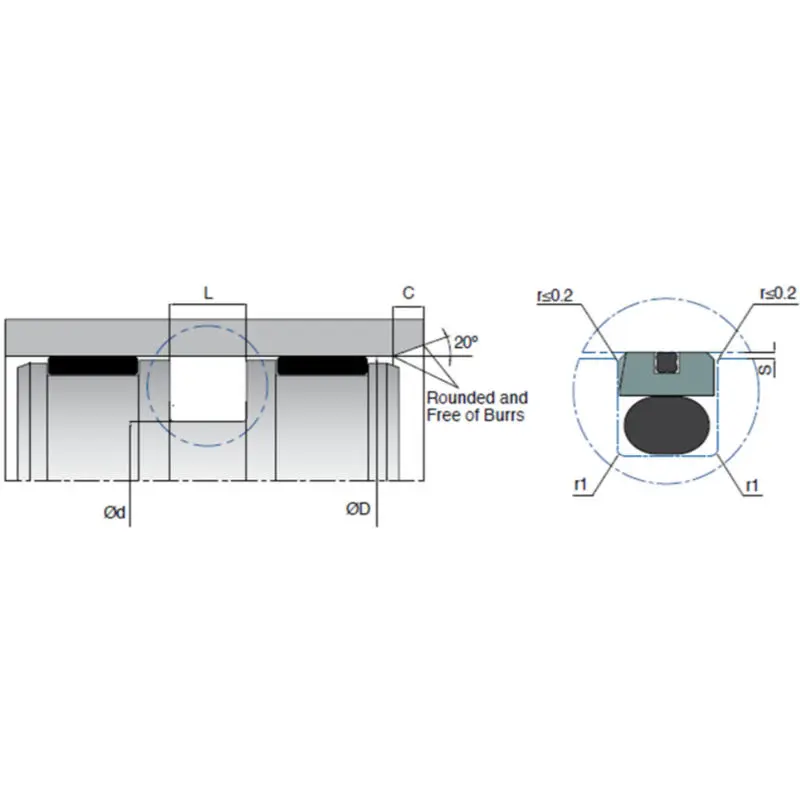

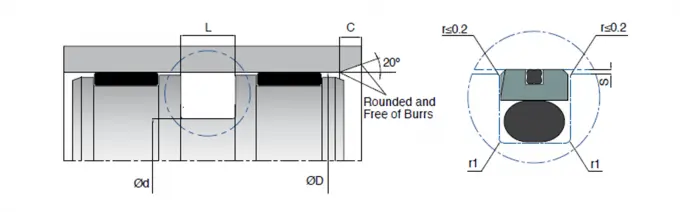

The KL48 double acting piston seal consists of one PTFE profile ring, one elastomer X-ring, and an O-ring as an energizer. KL48 is an ideal piston seal for systems featuring two different media separated by the piston, such as fluid and gas.
| Part Number | D (H9) | d (h9) | L (+0.2/-0) | r1 | C | O-Ring | X-Ring | Material |
|---|---|---|---|---|---|---|---|---|
| KL48-016 | 16 | 5 | 4.2 | 1 | 6 | 4.34x3.53 | 12.42x1.78 | PTFE |
| KL48-022 | 22 | 11 | 4.2 | 1 | 6 | 10.69x3.53 | 17.17x1.78 | PTFE |
| KL48-025 | 25 | 14 | 4.2 | 1 | 6 | 13.87x3.53 | 20.35x1.78 | PTFE |
| KL48-028 | 28 | 17 | 4.2 | 1 | 6 | 15.47x3.53 | 23.52x1.78 | PTFE |
| KL48-030 | 30 | 19 | 4.2 | 1 | 6 | 18.64x3.53 | 25.12x1.78 | PTFE |
| KL48-032 | 32 | 21 | 4.2 | 1 | 6 | 20.22x3.53 | 26.70x1.78 | PTFE |
| KL48-035 | 35 | 24 | 4.2 | 1 | 6 | 23.40x3.53 | 29.87x1.78 | PTFE |
| KL48-040 | 40 | 29 | 4.2 | 1.3 | 6 | 28.17x3.53 | 34.65x1.78 | PTFE |
| KL48-050 | 50 | 39 | 4.2 | 1.3 | 6 | 37.69x3.53 | 44.17x1.78 | PTFE |
| KL48-063 | 63 | 52 | 4.2 | 1.3 | 6 | 50.39x3.53 | 56.87x1.78 | PTFE |
| KL48-080 | 80 | 64.5 | 6.3 | 1.8 | 8 | 62.87x5.33 | 72.75x1.78 | PTFE |
| KL48-100 | 100 | 84.5 | 6.3 | 1.8 | 8 | 81.92x5.33 | 88.62x1.78 | PTFE |
| KL48-150 | 150 | 129 | 8.1 | 1.8 | 10.5 | 126.37x6.99 | 139.37x2.62 | PTFE |
| KL48-200 | 200 | 179 | 8.1 | 1.8 | 10.5 | 177.17x6.99 | 190.17x2.62 | PTFE |
| KL48-300 | 300 | 272 | 9.5 | 2.5 | 13 | 269.50x8.4 | 278.99x3.53 | PTFE |
