Cheap Wear Resistant Piston Rod Seals Single Acting Hydraulic Sealing Elements Exporters, Pricelist

Wear Resistant Piston Rod Seals

Piston Rod Seals Single Acting

Single Acting Hydraulic Sealing Elements

Place of Origin:

China

Brand Name:

Kelong

Certification:

ISO9001 / IRIS

Model Number:

KL23

Send Inquiry

Product Description

KL23 Single Acting Hydraulic Sealing Element consists of a specially formed polyurethane (PU) u-ring and an elastomer o-ring. It is engineered for systems with high pressure fluctuations, vibration, and long-term locked applications.

📊 Technical Specifications

Product Details

Style:Piston Rod Seals Single Acting

Material:NBR / PU

Pressure (max) Bar:400

Temperature Range:-30 / +100 °C

Sliding Speed (max):0.5 M/s

Order Information

Packaging:Opp bag

Delivery Time:7-15 work days

Payment Terms:L/C, T/T, Paypal

Supply Ability:100,000 pcs / month

⭐ Key Advantages

Superior static and dynamic sealing effect
High performance under shock and variable pressures
Reliable elastomer o-ring for long-duration locking
Exceptional wear resistance

🏗️ Area of Application

Mining Industry
Iron and Steel Industry
Scrap Metal Presses
Mobile Machinery
Marine Hydraulics

Wear Resistant Piston Rod Seals Single Acting Hydraulic Sealing Elements

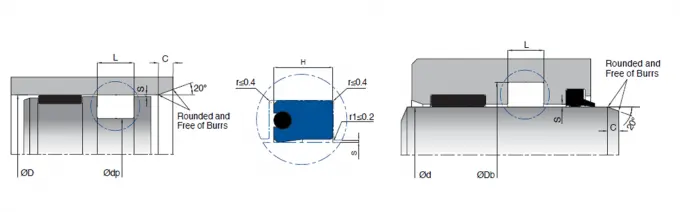

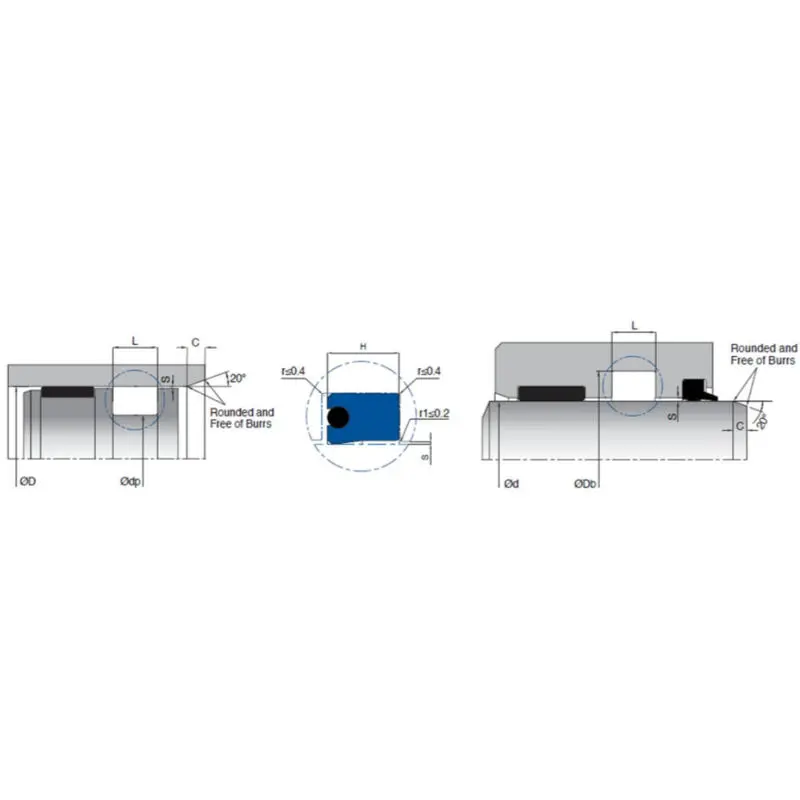

📏 Size Chart & Dimensions

Part No.	d(f7) dp(h11)	Db(H10) D(H10)	L (+0.2/-0)	H	C	MATERIAL
KL23-019	19.05	25.4	7	6.35	3	PU
KL23-022	22.23	28.58	3.5	3.18	3	PU
KL23-025	25.4	31.75	7	6.35	3	PU
KL23-025/1	25.4	34.93	5.2	4.76	4	PU
KL23-025/2	25.4	34.93	8.7	7.94	4	PU
KL23-025/3	25.4	38.1	7	6.35	4.5	PU
KL23-025/4	25	32	8	7	4.5	PU
KL23-030	30	40	7	6	5	PU
KL23-031	31.75	38.1	7	6.35	3	PU
KL23-031/1	31.75	41.28	8.7	7.94	4	PU
KL23-035	35	45	7	6	5	PU
KL23-035/1	35	50	10	9	5	PU
KL23-038	38.1	47.63	8.7	7.94	4	PU
KL23-038/1	38.1	47.63	10.5	9.53	4	PU
KL23-038/2	38.1	50	10.5	9.53	4.5	PU
KL23-040	40	50	7	6	5	PU
KL23-040/1	40	50	10	9	5	PU
KL23-044	44.45	53.98	10.5	9.53	4	PU
KL23-044/1	44.45	63.5	18.2	16.48	5	PU
KL23-045	45	53	9	8	5	PU
KL23-045/1	45	55	7	6	5	PU
KL23-045/2	45	65	11	10	5	PU
KL23-045/3	45	60	12	11	5	PU
KL23-045/4	45	60	11	10	5	PU
KL23-045/5	45	55	11	10	5	PU
KL23-047	47.62	63.5	12.5	11.5	5	PU
KL23-047/1	47.62	57.15	10.5	9.5	5	PU
KL23-050	50.8	60.33	10.5	9.53	4	PU
KL23-050/1	50.8	63.5	10.5	9.53	4.5	PU
KL23-050/2	50	58	9	8	5	PU
KL23-050/3	50	60	7	6	5	PU
KL23-050/4	50	63	10	9	5	PU
KL23-053	53	63	8.3	7.3	5	PU
KL23-055	55	65	7	6	5	PU
KL23-057	57.15	69.85	7	6.35	4.5	PU
KL23-060	60	68	9	8	5	PU
KL23-060/1	60	70	7	6	5	PU
KL23-060/2	60	75	10	9	5	PU
KL23-060/3	60	70	10	9	5	PU
KL23-063	63.5	76.2	10.5	9.53	4.5	PU
KL23-069	69.85	82.55	10.5	9.52	5	PU
KL23-076	76.2	88.9	10.5	9.53	4.5	PU
KL23-076/2	76.2	92.08	13.7	12.7	5	PU
KL23-088	88.9	101.6	10.5	9.53	4.5	PU
KL23-090	90	103	11	10	5	PU
KL23-092	92.08	101.6	10.5	9.53	4	PU
KL23-105	105	120	10	9	7	PU
KL23-106	106	120	9.5	8.5	7	PU
KL23-107	107.95	127	17.5	15.88	7	PU
KL23-109	109	125	11.5	10.5	7	PU
KL23-139	139.7	165.1	20.5	19.5	7	PU

❓ Frequently Asked Questions

What is the main function of the KL23 seal?

The KL23 is a single-acting hydraulic rod seal designed to handle pressure changes, shock pressures, and vibration while providing excellent sealing performance in long-term locked systems.

What materials are used in the construction of KL23?

It is composed of a high-performance Polyurethane (PU) u-ring combined with an Elastomer O-ring for enhanced sealing pressure response.

What is the maximum pressure limit for this seal?

The KL23 seal is capable of operating at a maximum pressure of 400 Bar.

What are the temperature limitations for these seals?

The seals are designed to operate safely within a temperature range of -30°C to +100°C.

How long does delivery usually take?

Standard delivery time is between 7 to 15 working days, depending on the order size and current production capacity.

Can these seals be used in marine environments?

Yes, the KL23 is highly suitable for marine hydraulics, as well as mining, iron, and steel industrial applications.
