Cheap Diesel Shovel Loader WC30E-30T-for underground fully mechanized mining auxiliary transportation of less than 30 tons Exporter, Companies
1 / 1
Cheap Diesel Shovel Loader WC30E-30T-for underground fully mechanized mining auxiliary transportation of less than 30 tons Exporter, Companies

Cheap Diesel Shovel Loader WC30E-30T-for underground fully mechanized mining auxiliary transportation of less than 30 tons Exporter, Companies

The WC30E shovel-type loader is powered by Hubei Kangchen   KC6114DZLQFB explosion-proof diesel engine. It is designed for transporting brackets with a weight of less than 30 tons in underground fully mechanized mining working surfaces in coal mines. The maximum load-bearing capacity is 30 tons. It is suitable for moving and dumping operations in underground fully mechanized mining working surfaces. main equipment.This machine can also be used as a general multi-purpose transport vehicle underground, used to transport belts and move transformers, so that one vehicle can be used for multiple purposes. It is an ideal equipment for auxiliary transportation in coal mines.

Send Inquiry

Product Description

Pallet Truck

It is the main equipment for moving and inverting the face of the underground comprehensive mining face. It functions as a general multi-functional transport vehicle for carrying belts and shifting, making it an ideal choice for auxiliary transport in underground coal mines.

Basic Features
✓
Drive wheels directly under the load for maximum traction at all times.
✓
Four (4) radial tyres under the pay load to minimize ground pressure.
✓
Single articulation for maximum manoeuvrability and control.
✓
Hydraulic steering system and retardation control for tight declines.
✓
Purpose-built for moving heavy chocks safely and efficiently.
✓
Turning Radius: Minimum inner 4.0m / Outer 6.4m.

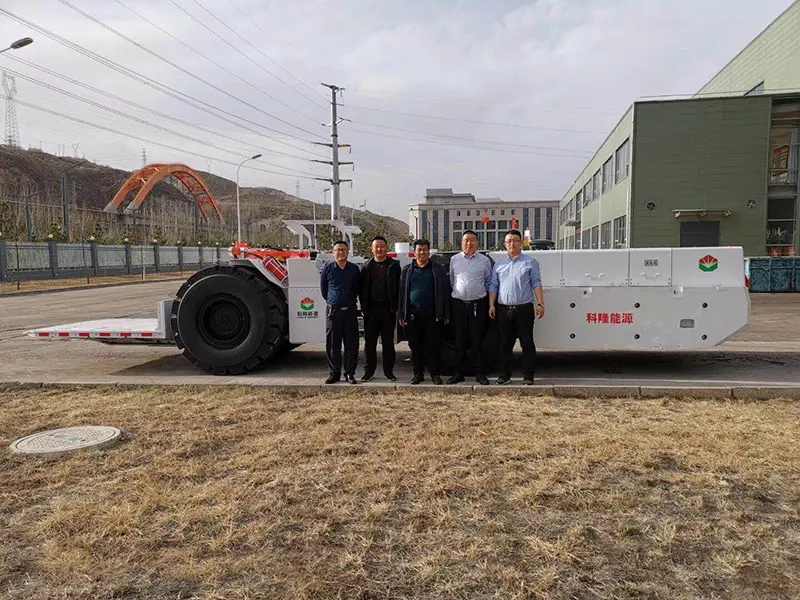

Pallet Truck Equipment
Technical Parameters
ITEM NO. NAME TECHNICAL INDICATORS NAME TECHNICAL INDICATORS
1 Overall dimensions (mm) 9500×2410×2000 Explosion-proof power (KW) 220
2 Structure type Shovel type, hinged frame Min ground clearance (mm) 320
3 Vehicle curb weight (Kg) 31000 Loading capacity (Kg) 30000
4 No-load speed (km/h) 0-22 Full load speed (km/h) 0-21.5
5 Driving operation Driving sideways Hydraulic support type weight ≤ 30T
6 Transmission form Hydromechanical Transmission Drive mode 4×4 four-wheel drive
7 Number of brake wheels 4 Braking form Wet spring brake
8 Working braking distance ≤ 6000 mm Emergency braking distance ≤ 6000 mm
9 External turning radius ≤ 6400 mm Inner turning radius ≤ 4000 mm
10 Steering method Hydraulic steering Maximum climbing ability 16°
11 Max lifting angle (shovel) 11° Max downward swing (shovel) 14°
Frequently Asked Questions
What is the primary application of this Pallet Truck?
It is designed for moving and inverting faces in underground mining and serves as a multi-functional transport vehicle for auxiliary coal mine operations.
What is the maximum loading capacity?
The vehicle has a rated loading capacity of 30,000 Kg (30 tons).
Does the vehicle support explosion-proof operations?
Yes, it is equipped with explosion-proof power rated at 220 KW, making it suitable for underground mine environments.
What are the terrain capabilities of the truck?
It features 4×4 four-wheel drive, a 16° maximum climbing ability, and a minimum ground clearance of 320mm.
How is the steering and braking handled?
The vehicle uses a full hydraulic steering system and a wet spring brake for both work and emergency situations, ensuring a braking distance of ≤ 6000 mm.
