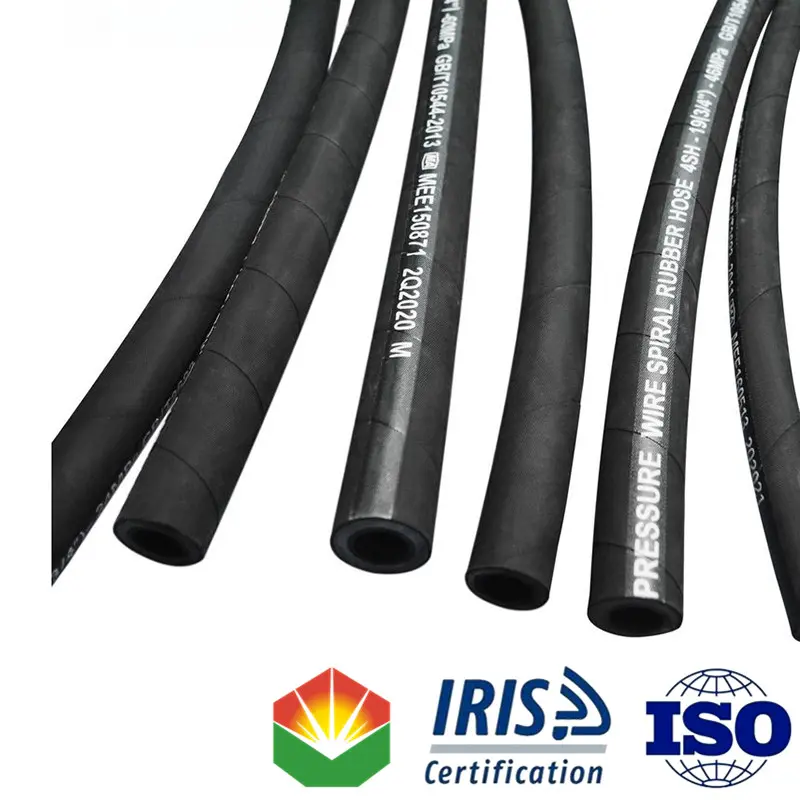

| Name | Ultra-high pressure 4SH wire wound hydraulic rubber hose |
| Tube | Synthetic Rubber Layer, Steel Wire Wrapping Layer |
| Reinforcement | Multi-layer High-strength Steel Wire Winding |
| Cover | Abrasion And Ozone Resistant Synthetic Rubber |
| Temperature Range | -40°C To 121°C / -40°F To +250°F |
| Note | Various Covers Available |
| Applications | Petroleum Based Hydraulic Oil |
| Tube | Black synthetic rubber |
| Reinforcement | Four layers of high tensile and high strength spiraled steel wire |
| Cover | High quality black synthetic rubber |
| Working Temperature | -40℃ to +100℃ |
| Minimum Order Quantity | 100 |
| Payment Terms | L/C, T/T |
| Supply Ability | 100000 + PCS / Month |
| Commodity | Specification |
|---|---|
| SAE 100 | R1, R2, R6, R7, R8, R9, R12, R13, R14, R15, R16, R17 |
| DIN EN853 | 1SN, 2SN, 1ST, 2ST |
| DIN EN856 | 4SH, 4SP |
| DIN EN857 | 1SC, 2SC |
| EN 856 4SH Steel Wire Spiraled Hydraulic Hose Specifications | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Hose Code | Size (Inch) | Dash | ID (mm) | OD (mm) | WP (MPa) | WP (Psi) | BP (MPa) | Bend (mm) | Weight (kg/m) |
| EN8564SH-01 | 3/4 | -12 | 19.0 | 32.2 | 42.0 | 6090 | 168 | 280 | 1.70 |
| EN8564SH-02 | 1 | -16 | 25.4 | 38.7 | 38.0 | 5510 | 152 | 340 | 2.50 |
| EN8564SH-03 | 1-1/4 | -20 | 31.8 | 45.5 | 32.5 | 4710 | 130 | 460 | 3.00 |
| EN8564SH-04 | 1-1/2 | -24 | 38.1 | 53.5 | 29.0 | 4205 | 116 | 560 | 3.60 |
| EN8564SH-05 | 2 | -32 | 50.8 | 68.1 | 25.0 | 3625 | 100 | 700 | 5.00 |
